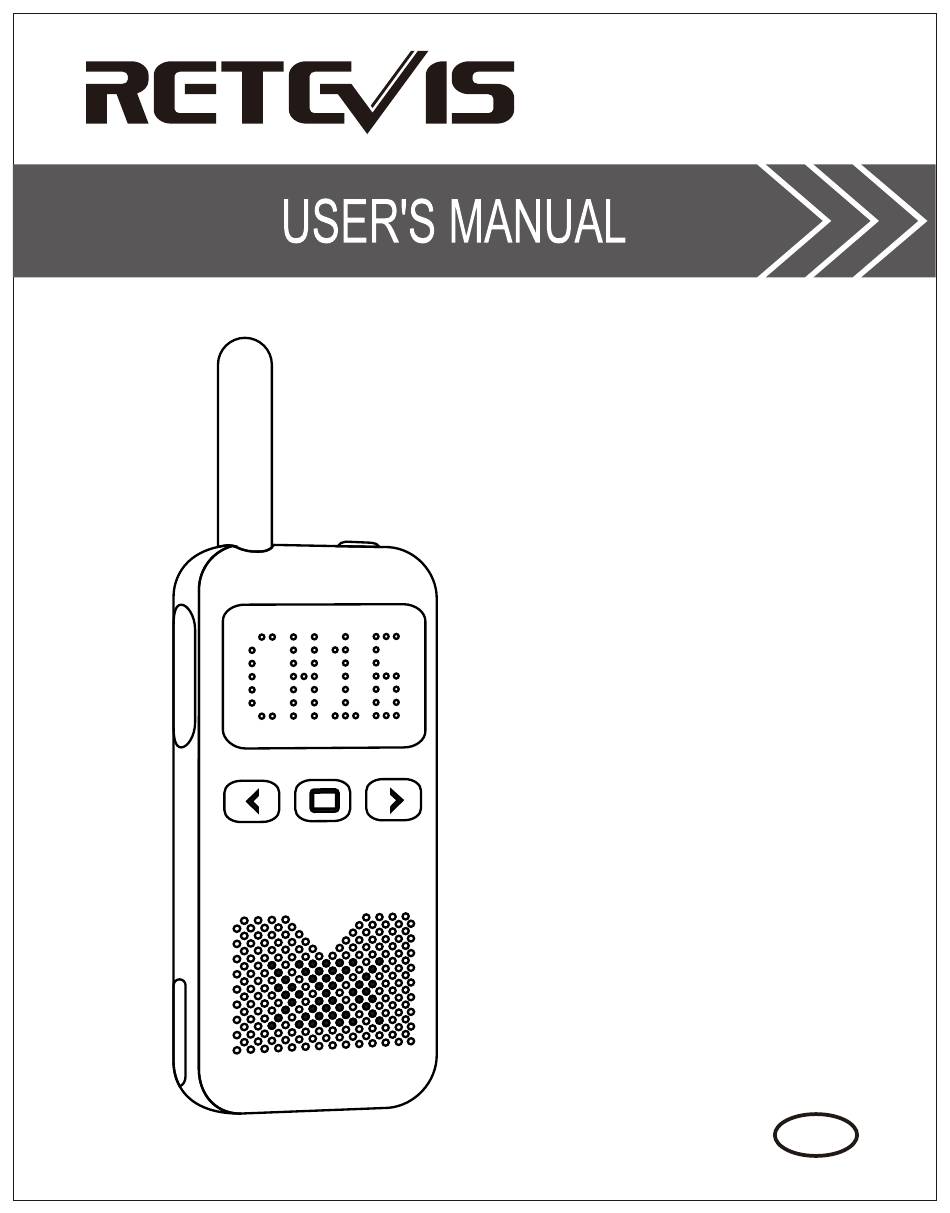

- Page 1 Model: RB19 Two Way radio...
- Page 2 WARNINGS Product safety and RF Exposure for two way radio: Before using this two way radio, please read the manual which contains important operating instructions for safe usage, RF Energy Awa- reness, control information and operational instructions for compliance with RF Energy Exposure limits in applicable national and international standards, and also read the operational instructions for safe use.
- Page 3 Features UHF(462.5500-467.7125MHz) Super Receiving Screen Display Scanning Monitoring Keyboard Lockout Power Display Busy Channel Lockout Power Saving Mode Low Battery Warning Voice Companding/Scrambling Function Programming Encryption Function Special Signaling 50 CTCSS/208 DCS...
-
Page 4: Optional Accessories
Standard Accessories Adapter Radio Body USB Cable Optional Accessories Six-port Charger Desktop Charger EU Adapter UK Adapter... -
Page 5: Function Operations
Function Operations Antenna Belt Clip Power Key MIC/Speaker port Display USB Charging Screen Port Function Keys Speaker Desktop Charger Connector Charging the Battery Pack 1.The battery is not charged in the factory,please charge the battery under the environmental temperature 5—40℃ before using. 2.After purchasing or long-term storage(more than two months), charging the battery for the first time can not reach its saturation capacity,repeat charge/discharge for twice or three times to make... - Page 6 Icons volume high power channel battery level scanning channel lockout unlocking earphone earphone volume transmitting receiving alarm Menu Opeartion 1.Short press keys to adjust the volume. 2.Short press key to switch to channel mode,then short press keys to adjust the channels. 3.PTT: press this button whenever you wish to talk with the user of the other radio.
- Page 7 Keyboard Lockout Long press key to lock all buttons,operate it again to unlock. Power Display Short press power key to display the current battery level. Monitoring Long press key for two seconds to enter into the monitor mo de, release it to exit. This function can be voice activated so the user doesn’t have to press the PTT key.
- Page 8 CTCSS/DCS The transceiver has 50 CTCSS and 208 DCS,also non-standard subaudio can be programmed! CDCSS Mode It is valid only when you program the CDCSS on the channels.This function has two selections: "normal signaling" and "special signaling". Normal Signaling refers to the CDCSS codes on the channels is ordinary codes,we can talk to each other with the same CDCSS;...
-
Page 9: Specifications
Technical Parameters SPECIFICATIONS Frequency Range 462.5500-467.7125MHz Supply Power DC3.7V Memory Channel Antenna Configuration Internal Antenna Co/Differ-frequency Simplex Work Mode Communication Ground Method Cathode working temperature range -30°~+60° TRANSMITTER ≤2W Output Power FM(F3E) Modulation Mode ≤5KHz Max.Frequency Deviation ≤7.5μW Sparious Radiation Per Octave 6dB Preemphasis Character Emission Current... - Page 10 RF energy, which when used improperly, can cause biological damage. All Retevis two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios.
- Page 11 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
-
Page 12: Fcc Requirements
FCC Requirements: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. (Licensed radios are applicable); This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (Other devices are applicable) (1) This device may not cause harmful interference, and... - Page 13 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 14 (rechargeable batteries) must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. IC Requirements: Licence-exempt radio apparatus This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’...
- Page 15 •During transmissions, your radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. •DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
- Page 16 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
-
Page 17: Electromagnetic Interference/Compatibility
Phone Mode •When placing or receiving a phone call, hold your radio product as you would a wireless telephone. Speak directly into the microphone. Electromagnetic Interference/Compatibility NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. -
Page 18: Protect Your Hearing
•Turn off your radio in any facility where posted notices instruct you to do so, hospitals or health care facilities (Pacemakers, Hearing Aids and Other Medical Devices) may be using equipment that is sensitive to external RF energy. •Turn off your radio when on board an aircraft. Any use of a radio must be in accordance with applicable regulations per airline crew instructions. - Page 19 Avoid Burns Antennas •Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with the skin when the radio is in use, a minor burn can result. Batteries (If appropriate) •When the conductive material such as jewelry, keys or chains touch exposed terminals of the batteries, may complete an electrical circuit (short circuit the battery) and become hot to...
- Page 20 Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. • For a list of Retevis-approved accessories for your radio model, visit WARNING the following website: http://www.Retevis.com...
- Page 21 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ●Contact the seller where you buy. ●Products Repaired by Our Local Repair Center 4.For warranty service, you will need to provide a...
- Page 22 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis MADE IN CHINA...
