Summary of Contents for Retevis RB37

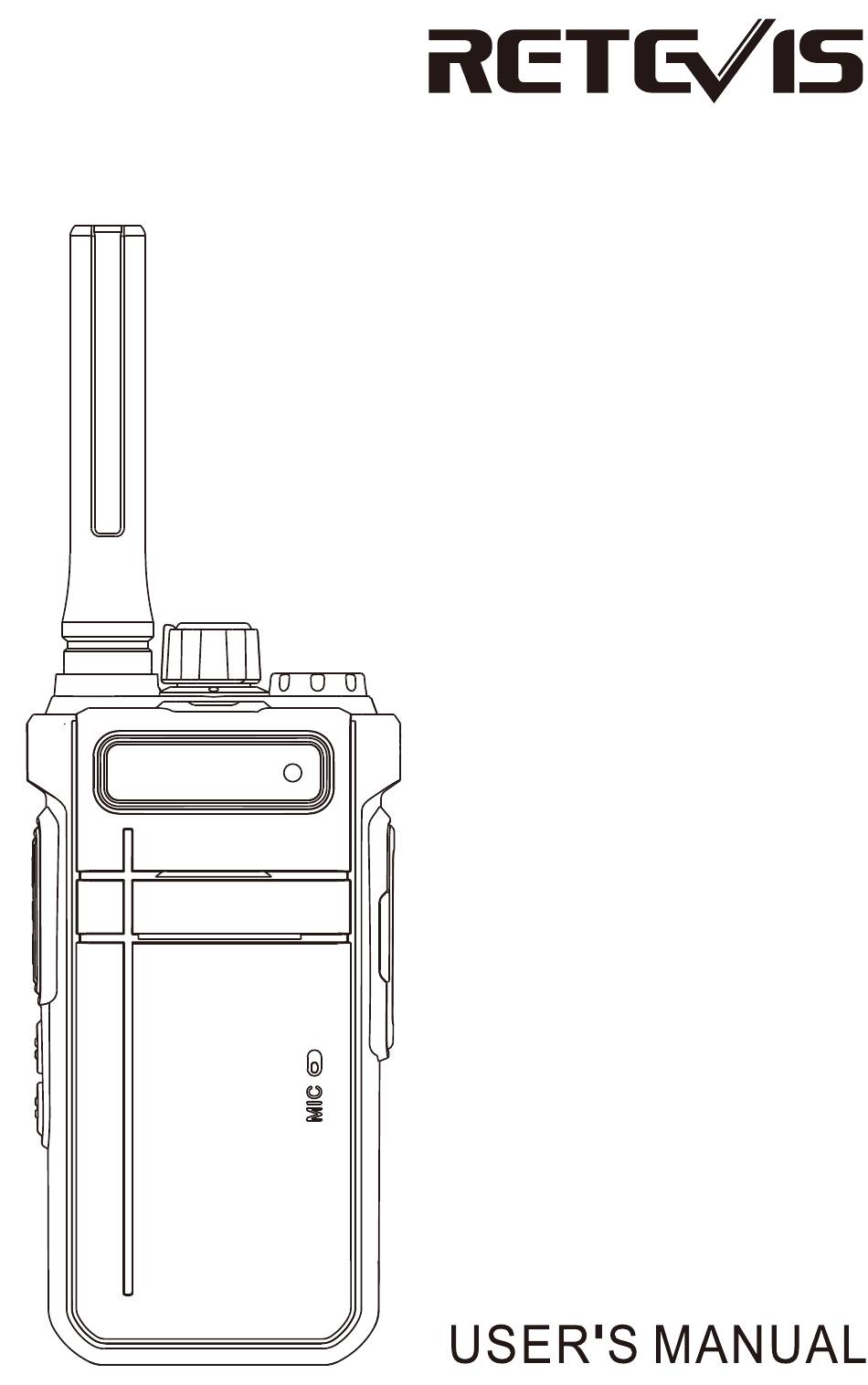

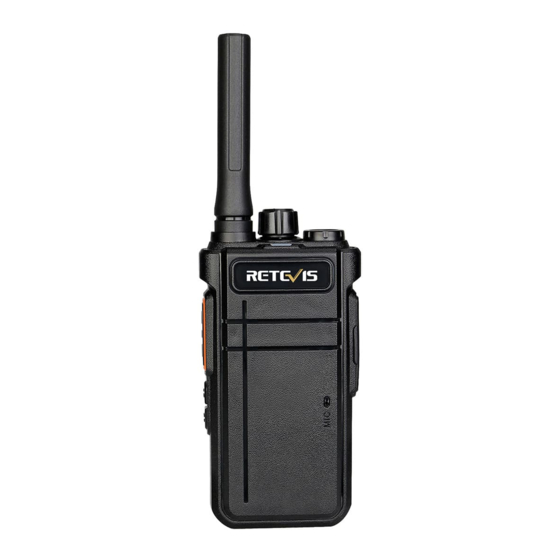

- Page 1 ( US ) RB37 Bluetooth Two Way Radio...
- Page 2 Bluetooth earphone...
- Page 3 Basic Operations and Function Description Power ON / OFF Rotate Volume Switch clockwise until a “Click” sound is heard, that means radio power is on. Rotate Volume Switch anti-clockwise until a “Click” sound is heard, that means radio power is off. Communication Press PTT key to transmit, the indicator turns red, talk to the microphone at the moment, the other side will hear your speaking message.
- Page 4 Press the PPT key of the transmitter, and the red light flashes to transmit data. Restart the walkie talkie and the radio will automatically exit the mode. The red light and green light of the receiver flashes crosswise to indicate that the data is being received at this time, and the power will restart after the radio receives the data.
-
Page 5: Technical Specifications
Technical Specifications Frequency Range Memory Channel Audio Distortion ＜5% Frequency Stability ±2.5ppm Maximum Frequency Deviation ≤5KHz/≤2.5KHz Remanent Radiation ≤7uW Modulation Mode 1 6KφF3E/ 11KφF3E Reference Sensitivity ≤0.25uV/≤0.3uV Noise-free Sensitivity ≤0.2uV/≤0.25uV Adjacent Channel Selectivity ≥65dB Spurious Response Rejection ≥55dB Inter-Modulation ≥60dB Electric Current ≤1.3A Operating Voltage... - Page 6 Serial number Frequency Sub audio Power 462.5625 67.0 462.5875 118.8 462.6125 127.3 462.6375 131.8 462.6625 136.5 462.6875 141.3 462.7125 146.2 467.5625 D243N 0.5W 467.5875 D032N 0.5W 467.6125 D047N 0.5W 467.6375 D051N 0.5W 467.6625 D053N 0.5W 467.6875 D065N 0.5W 467.7125 D116N 0.5W 482.5500 123.0...
-
Page 7: Rf Energy Exposure And Product Safety Guide For Portable Two-Way Radios
Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements. - Page 8 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 9 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
- Page 10 Use of other accessories may WARNING not ensure compliance with the RF exposure guidelines and may violate regulations. •For a list of Retevis-approved accessories for your radio model, visit the following website: http://www.Retevis.com...
- Page 11 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: Contact the seller where you buy.
- Page 12 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevis.com E-mail: kam@retevis.com Facebook: facebook.com/retevis...
- Page 13 说明书要求 尺寸：120*180mm 印刷：黑白印刷 装订：胶黏订 纸张材质：双胶纸 本页无需印刷...
