Summary of Contents for Retevis RB67

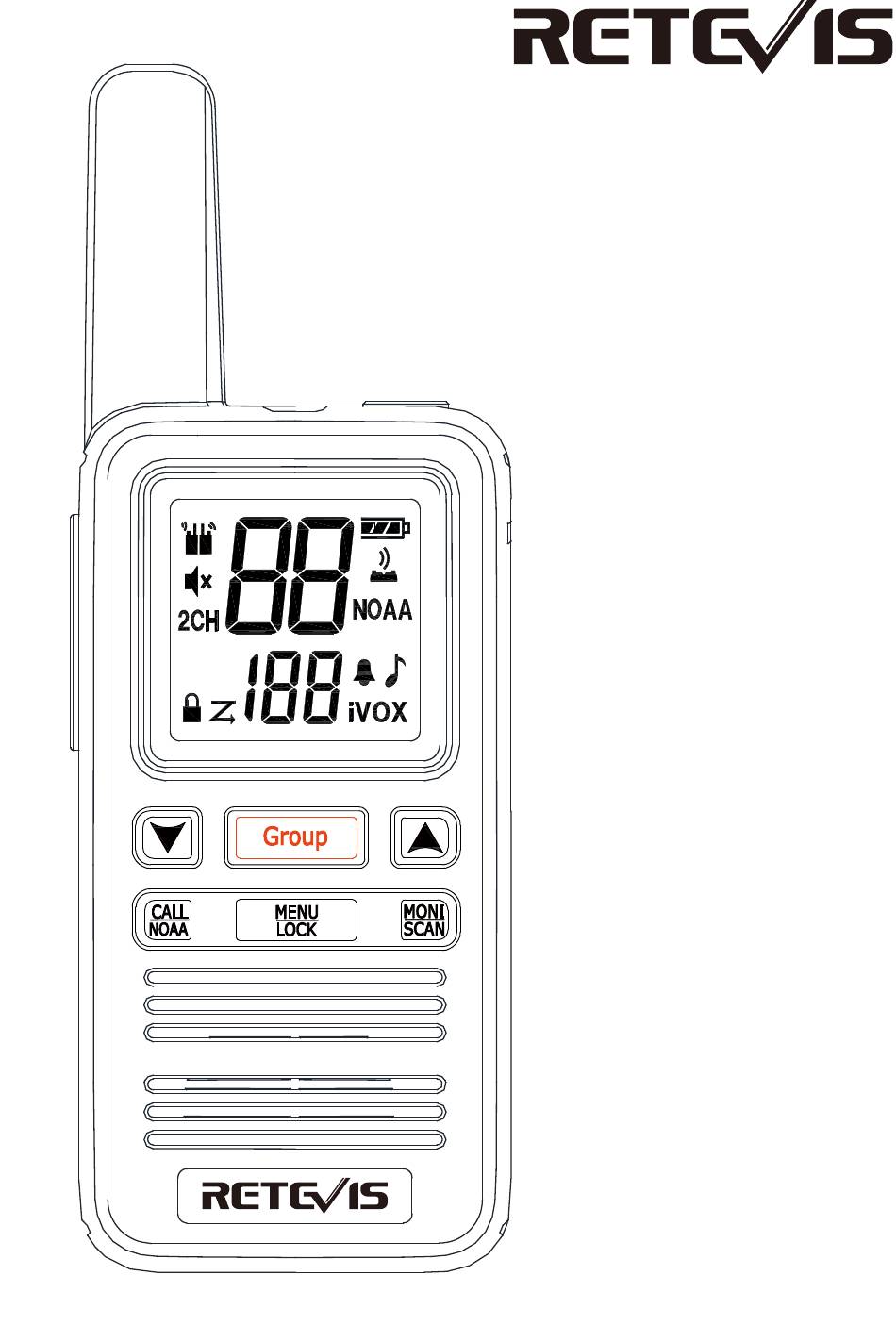

- Page 1 RB67 USER’S MANUAL...
-
Page 2: Table Of Contents
--------------------------------------------- 04 Troubleshooting Guide ---------------------------------------- 04 Factory Setting -------------------------------------------------- 07 For downloading further resources: Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go to website retevis.com and check “support” in the each product link to download it. -
Page 3: Functions And Specifications
Functions and Specifications Functions and Specifications ·22 analog channels · 159 sub-tones (50 CTCSS and 109 DCS) · VOX (Voice Control) · Call beep ・ LCD display · Roger beep ·Battery level display ·Channel monitoring ·One-key group call ·Channel scanning ·Keyboard lock ・... -
Page 4: Menu Options
Icon Description Receive instructions Transmit instructions Mute indicator Dual Channel Monitor Indication Keypad lock indicator (on/off) Scan Indicator (On/Off) Channel indication (1/16) Battery level indicator Keyboard tone indicator (on/off) Weather forecast indication (on/off) Roger beep indicator (on/off) Call Prompt Tone (1/10) VOX(OFF/1/2/3) CTCSS/DCS indication (1/159) Note: 1. -
Page 5: 159 Ctcss/Dcs
159 CTCSS/DCS 50 groups of standard CTCSS [Hz] CTCSS CTCSS CTCSS CTCSS CTCSS CTCSS CTCSS CTCSS 67.0 85.4 107.2 136.5 165.5 186.2 210.7 254.1 69.3 88.5 110.9 141.3 167.9 189.9 218.1 71.9 91.5 114.8 146.2 171.3 192.8 225.7 74.4 94.8 118.8 151.4 173.8... -
Page 6: Group Call Channel
Scan and answer the message of the other party. After the other party stops talking, you need to press the PTT key to respond within 3 seconds, otherwise the scanning will continue. 3. Press the PTT button within 3 seconds after the end of the transmission, you can talk. 4. - Page 7 CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 8 (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Compliance and Control Guidelines and Operating Instructions Transmit no more than the rated duty factor of 50% of the time. To Transmit (Talk), push the Push to Talk (PTT) button. To receive calls (listen), release the PTT button.
-
Page 9: Factory Setting
•The adapter shall be installed near the equipment and shall be easily accessible Approved Accessories •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. - Page 10 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy.
- Page 11 Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:kam@retevis.com MADE IN CHINA Facebook:facebook.com/retevis...
