ZMID4200MARC13001
Arc Application Module
Description
The ZMID4200 application modules provide an easy
demonstration of Renesas' ZMID4200 inductive
sensing solutions for specific application cases. The
typical sensor performance for a defined application
use case can be evaluated via reference
measurements performed with the application
module.
The ZMID4200MARC36001 Arc Application Module
demonstrates inductive arc position sensing. The
Application Module can be programmed for a specific
application range using Renesas' ZMID-
COMBOARD, which is separately available.
The Arc Application Module Sensor PCB can be
easily attached to an existing mechanical
configuration for prototyping.
Kit Contents
Arc Application Module Sensor PCB
■
■
Sensor Target, Target Holder, Rotation Axis, and
Knob
■
Module Connection Cable
■
Quick Start Guide and Kit Disclaimer

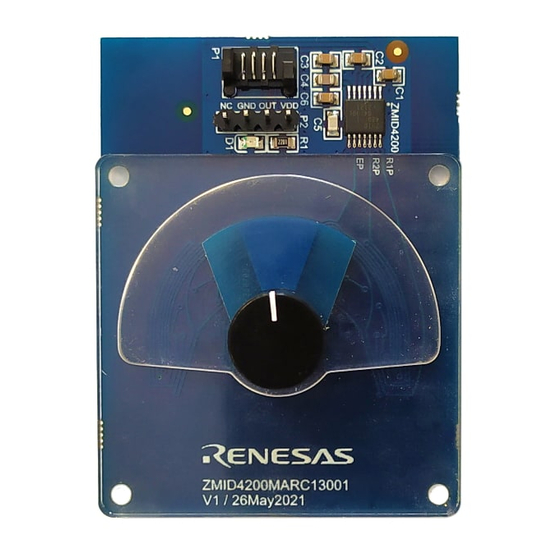

ZMID4200MARC13001 Arc Application Module Sensor PCB
ZMID520x Sensor IC
P2 Appli c ation Module
Interface Header
NC, GND, OUT, VDD
P1 Appli c ation Module
Connector for the
ZMID-COMBOARD
(Separately Available)
Power Indicator LED
Measurement Range: 130°
Coil Range: 180°
Target: 40° (22%)
Rev.1.0
Jul 21, 2021
Features
■
Easy application prototyping
■
Measurement reports available
■
Programmable output slope and linearization
Tolerance to mechanical misalignment
■
■
No magnets required; reduces cost
■
Module design data, software, and user manual
available online depending on the module:
http://www.renesas.com/ZMID4200stkit
Arc Module Summary
■
Measurement range 130 (using a 22% target)
■
Output resolution
●
10-bit Analog Output = 0.13
●
10-bit PWM Output = 0.13
●
12-bit SENT Output = 0.03Describe the
purpose of the document in two to three
sentences.
60mm
User Guide
Max.
Target
Position
Max.
Target
Position
Page 1
© 2021 Renesas Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZMID4200MARC13001 and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas ZMID4200MARC13001

Summary of Contents for Renesas ZMID4200MARC13001

  • Page 1 ■ Sensor Target, Target Holder, Rotation Axis, and Knob ■ Module Connection Cable ■ Quick Start Guide and Kit Disclaimer ZMID4200MARC13001 Arc Application Module Sensor PCB ZMID520x Sensor IC Max. Target P2 Appli c ation Module Position Interface Header NC, GND, OUT, VDD...

  • Page 2: Table Of Contents

    ZMID4200MARC13001 / Arc Application Module User Manual Important Notes Disclaimer Integrated Device Technology, Inc. and its affiliated companies (herein referred to as “Renesas”) shall not be liable for any damages arising out of defects resulting from delivered hardware or software...
  • Page 3 ZMID4200MARC13001 / Arc Application Module User Manual 1.2.3. Sensor Configuration and Calibration ..................7 Application Measurement ..........................7 Output Measurement with a 1.5mm Airgap ................... 7 Arc Application Module Sensor PCB ......................9 Schematic .............................. 9 Layout ..............................10 Bill of Materials (BOM) ......................... 10 Mechanical Components ..........................

  • Page 4: Introduction

    ZMID4200MARC13001 / Arc Application Module User Manual 1. Introduction This user manual describes the ZMID4200MARC13001 Arc Application Module. This application module is designed to measure the arc movement of a sensor target using the ZMID4200 Inductive Position Sensor IC, which is connected to an application specific coil design and located on the Arc Application Module Sensor PCB.

  • Page 5: Electrical Connections For Interfacing With An Application Mcu

    The design data are available on the Renesas webpage (see page 1). They can be also requested from Renesas (see contact information on the last page). The support package contains the design files as well as the fabrication outputs for the ZMID4200MARC13001 Arc Application Module including the following: ■...

  • Page 6: Target Holder Assembly Instructions

    ZMID4200MARC13001 / Arc Application Module User Manual Connect to Application MCU Application Module Option A: Connect P2 to Application Controller Option B: Connect P1 to ZMID-COMBOARD for demonstration and programming User s Computer Connect to with ZMID4200 EVK ZMID-COMBOARD Application Software Figure 1.

  • Page 7: Sensor Configuration And Calibration

    ZMID4200MARC13001 / Arc Application Module User Manual Assembled Application Module Figure 2. Target Holder Assembly 1.2.3. Sensor Configuration and Calibration The Application Module is preconfigured for the mechanical configuration when using the target holder. If the Arc Application Module Sensor PCB is mounted on any existing application with a mechanical configuration different from the Application Module mechanics, the sensor IC must be configured and programmed for the new setup.

  • Page 8: Figure 4. Accuracy With Linearization At 1.5Mm Airgap (Ag150)

    ZMID4200MARC13001 / Arc Application Module User Manual POS1Error_% Full-Scale Error in % Pos1 AG15 0_XP 000_ YP00 -0.2 POS1 -0.4 Displacement deg Figure 4. Accuracy with Linearization at 1.5mm Airgap (AG150) Pos1 POS1Error_% Full-Scale Error in % AG10 0_XP0 00_YP...

  • Page 9: Arc Application Module Sensor Pcb

    ZMID4200MARC13001 / Arc Application Module User Manual POS1Error_% Pos1 Full-Scale Error in % AG150 _XP00 0_YP0 POS1 Pos1 AG150 _XP00 0_YP0 POS1 Pos1 AG150 _XP00 0_YP0 POS1 Displacement deg Figure 7. Accuracy with Linearization at 1.5mm Airgap and Effects of Displacement in Y 3.

  • Page 10: Layout

    Layout The Arc Application Module Sensor PCB layout is shown in Figure 9. For an appropriate coil design, specific tools to generate the coil pattern were used. These tools are available to Renesas customers if custom coil designs are needed.

  • Page 11: Mechanical Components

    ZMID4200MARC13001 / Arc Application Module User Manual 4. Mechanical Components The application module is shipped with a target holder, which is used to move the target over the receiver coil for evaluation purposes. A description of the target holder mechanics is shown below.

  • Page 12: Target Holder Knob

    ZMID4200MARC13001 / Arc Application Module User Manual Target Holder Knob The target knob is used to slide the target inside the target holder. Note: Dimensions are in mm. Figure 12. Sensor Target Knob Dimensions 5. Ordering Information Orderable Part Number...
  • Page 13 Renesas Electronics products, if required. 5. You shall not alter, modify, copy, or reverse engineer any Renesas Electronics product, whether in whole or in part. Renesas Electronics disclaims any and all liability for any losses or damages incurred by you or third parties arising from such alteration, modification, copying or reverse engineering.
  • Page 14 12. It is the responsibility of the buyer or distributor of Renesas Electronics products, or any other party who distributes, disposes of, or otherwise sells or transfers the product to a third party, to notify such third party in advance of the contents and conditions set forth in this document.
