ZMID4200MLIN01201
Linear Application Module User Manual
Description
The ZMID4200 application modules provide an easy
demonstration of Renesas' ZMID4200 inductive
sensing solutions for a specific application case. The
typical sensor performance for a defined application
use case can be evaluated via reference
measurements performed with the application
module.
Renesas' ZMID4200MLIN01201 Linear Application
Module demonstrates inductive linear position
sensing. The Application Module can be
programmed for a specific application range using
Renesas' ZMID-COMBOARD, which is separately
available.
The Linear Application Module Sensor PCB can be
easily attached to an existing mechanical
configuration for prototyping.
Kit Contents
Linear Application Module Sensor PCB
■
■
Sensor Target, Target Holder, and Knob
■
Module Connection Cable
■
Quick Start Guide and Disclaimer

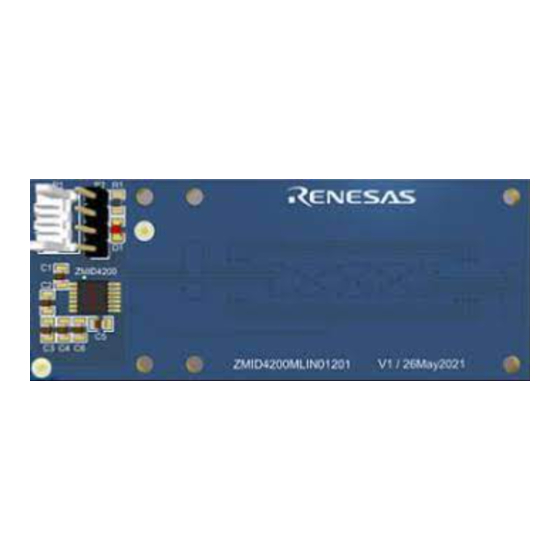

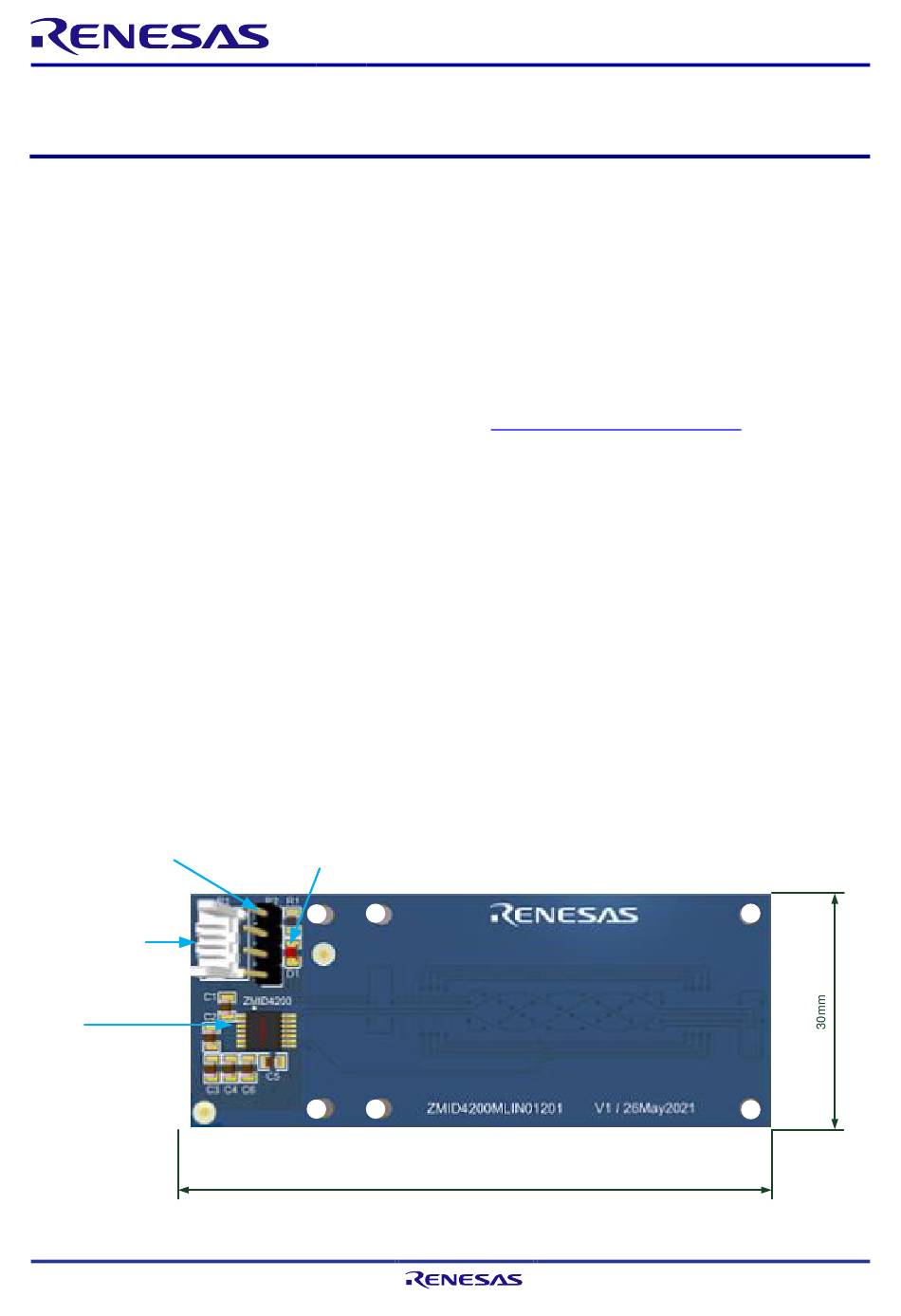

ZMID4200MLIN01201 Linear Application Module Sensor PCB
P2 Application Module
Interface Header
NC, GND, OUT, VDD
P1 Application Module
Connector for the
ZMID-COMBOARD
(Separately Available)
ZMID4200 Sensor
IC
Rev.1.0
Jul 21, 2021
Features
■
Easy application prototyping
■
Measurement report available
■
Programmable output slope and linearization
Tolerance for mechanical misalignment
■
■
No magnets required; reduced cost
■
Module design data, ZMID4200 EVK Application
Software, and user manual available online
depending on the module:
www.renesas.com/ZMID4200stkit
●
■
Measurement range: 12mm (using a 50% target)
■
Output resolution:
●
●
●
D1 Power Indicator LED
75mm
Linear Module Summary
10-bit Analog = 12µm
10-bit PWM = 12µm
12-bit SENT = 3µm
Measurement Range
12mm (50% Target)
© 2021 Renesas Electronics
User Guide
Page 1
