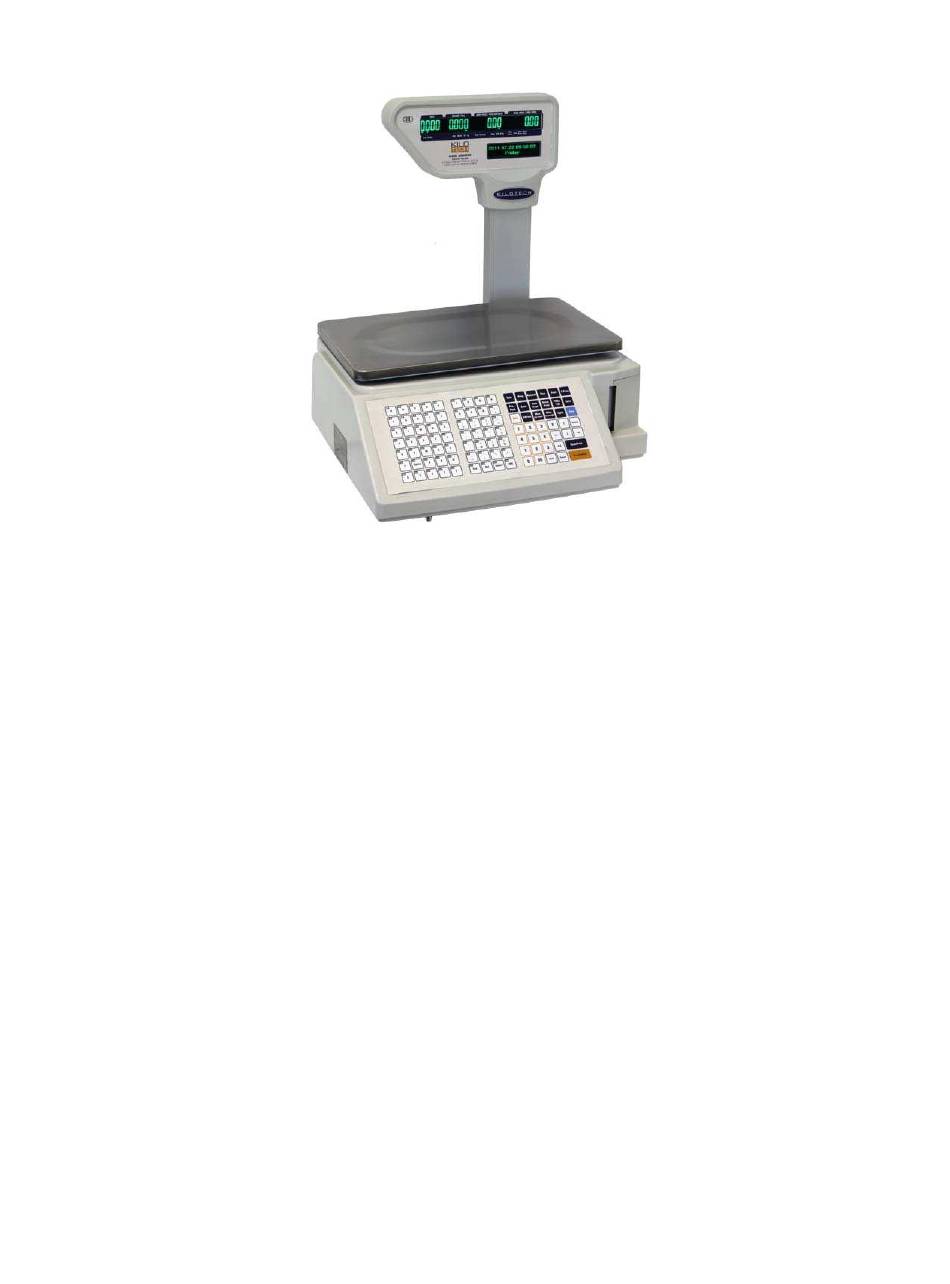

- Page 1 Kilotech KRS 3000 Price Computing Label Printing Scale Quick guide Version 09.07...
-
Page 2: Table Of Contents
Index Table of Contents Index ..............................................2 Change labels ............................................3 Fast Program PLU ..........................................5 Common used specs settings ......................................10 Speed key set: ............................................ 12 Barcode: .............................................. 14 Backup all Data to USB flash disk ....................................15 Label formats ............................................. 16... -
Page 3: Change Labels
Change labels . Open side door 2. Raise the print head. If there were any labels previously installed, please remove all the collected backing paper on the pick-up spool. Also remove the cardboard paper roll core if there was a label roll previously installed. - Page 4 3.Peel-off and discard about 3 labels and install paper roll. 4. Pull out paper retaining spring. Feed the backing paper around the pickup spool. Now attach the paper retaining spring into the spool and turn it slowly counterclockwise in order to tighten the backing paper. Turn the print head down in order to lock it back in place...
-
Page 5: Fast Program Plu
Fast Program PLU Press F Press F- - - - Prog and PLU Press F Press F Prog and PLU Prog and PLU Prog and PLU PLU number Nutrition Item code Print user Unit Date PLU name Unit price Line 2 PLU Name Cost Accu/confirm... - Page 6 To program a PLU with the F-program press the F-prog and PLU button You can press the right and left arrow key to go up and down the PLU program menu, but you must provide a PLU number Every PLU has 37 data fields: PLU number Print format 2 Ingredients Line 5...
- Page 7 Enter weight unit code and press right arrow key Standard available unit codes are: 2: $/pcs 3: $/kg 6: $/lb 8:$/100g 9: $//¼lb (USA only) → Enter unit price and press right arrow key → → → Enter cost and press right arrow key →...
- Page 8 To program the PLU name press the Accu/Confirm key or press the right arrow key to skip Program PLU name and press Amend and then right arrow key when finished → → → → → → To program the second line of the PLU name Press the Accu/Confirm key (Behavior is the same as the PLU name field) Or press right arrow key to skip...
- Page 9 Program the use of a best before date 0: Do not print 1: print → Program Nutritional facts table number to be used with the PLU (leave at 0 when not used) Press amend to save edited PLU and return to begin of PLU editing screen →...
-
Page 10: Common Used Specs Settings
Common used specs settings The KRS 3000 Uses Specifications setting to control the behavour of the scale. You can modify the specs with the KK base software or directly on the scale. To modify the specs on the scale please do the following:... - Page 11 • Spec 23: Gray Level of Plain Paper Ethernet type: • Spec 50: |Choose 0 for: wired network or 1 for Wi-Fi Wi-fi security • Spec 51: Security Mode| Choose 0 for no Security, 1 for WEP, 2 for WPA/WPA2. •...
-
Page 12: Speed Key Set
Speed key set: Press F-prog and the speedkey to be programmed Input PLU number Select nexr Speedkey to be programmed Input PLU number When all Speedkeys are programmed press Amend key... - Page 13 → Select PLU number to be linked to speed key and select the next speed key. → Press amend to save and return to normal mode.
-
Page 14: Barcode
Barcode: The KRS3000 has 9 predefined barcodes. To program the global barcode please do the following: Prog Accu confirm Accu confirm Right arrow Look at the table and enter barcode number Accu confirm Right Arrow X key Enter spe c flag Amend Sale Name... -
Page 15: Backup All Data To Usb Flash Disk
Backup all Data to USB flash disk Prog Accu confirm Amend wait until finished Accu confirm Sale N o t e 1 Exporting data to files to USB flash disk may take some time a lot of time. N o t e 2 Press any key to exit when saving is ended. If users want to exit midway, press the cancel key. -
Page 16: Label Formats
Label formats Label Number Example: Description Item Label 58 x 40mm Item label 40 x 30mm Item label 58 x 30mm... - Page 17 Total label 58 x 40mm Total label 40 x 30mm Total label 58 x 30mm Receipt 58mm width Receipt 40mm width...
- Page 18 Receipt 48mm width Kilotech stock label 58 x 40mm Kilotech stock label 58 x 60mm...
