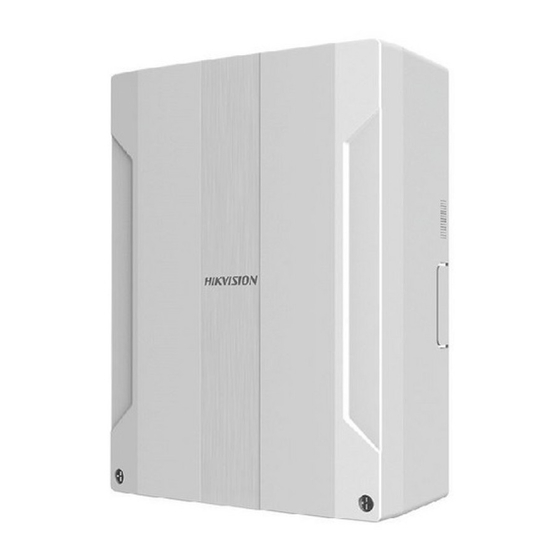

HIKVISION AX PRO M2H Quick Start Manual

AX PRO M2H
Quick Start Guide
E N G L I S H
Appearance
1
1. Main Board 2. Power Switch 3. Tamper Switch
4. Battery
5. Antenna Position 6. Loudspeaker

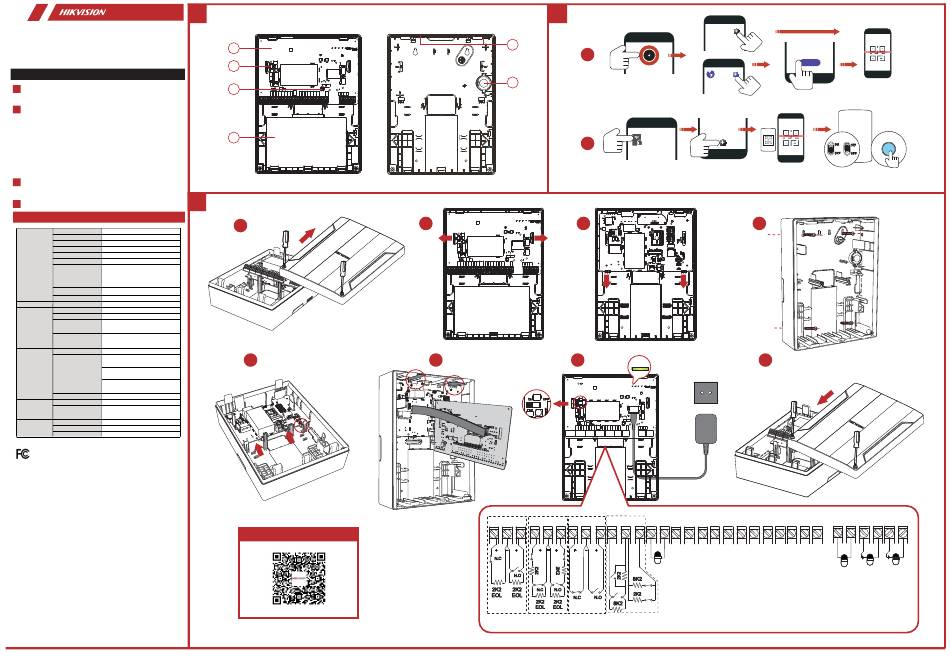

2 Installation and Wiring
Note: Power down the control panel before installation and wiring.
1. Loosen the screws and open the case.
2. Take out the upper main board.
3. Take out the lower main board.
4. Fix the rear case on the wall.
5. Install the lower main board and the loudspeaker.
6. (Wiring before install the upper main board.)
Install the upper main board.
7. Connect the power supply and turn on the switch.
8. Close the case and tighten the screws.
3 Set Up
1.Add the AX PRO to Hik-ProConnect or Hik-Connect APP.
2.Enroll the peripheral to the AX PRO.
4 User Manual
Specification
RF frequency 433 Mhz
Keyfob 48
Wireless sounder 6
Keypad 8 (Including Tag reader)
Wireless repeater 4
Basic Tag 48
Up to 96 (including 48 PIRCAMs & 16
onboard Wired Zones & onboard Wired
Zone
Outputs)
Transmitter
Up to 96 (Single), up to 5 (Multi)
Onboard video clip 4
User 1, 120, 46
Admin, installer, user
Area 32
Arm/Disarm, Alarm, Alert, Cloud, Power
LEDs indication
Alarm&abnormal (3000), user operation
Memory Log stored
Software
(1500), user management (200)
Hik-Connect/Hik-ProConnect/Web
Programming tool
Portal/ IVMS4200/ Convergence Cloud
Network Wired network, Wi-Fi, 3/4G on board
SIA DC09 (SIA level 2, Contact ID), ISUP,
ISAPI (SDK), CSV-IP, FSK Module
Hik-IP Receiver & Hik-IP Receiver Pro
Communication ARC protocol
(Sur-Gard & Ademco 685)
Supports video verification and remote
control
SIM slot Dual
Power supply 100 to 240V~, 50/60 Hz, 0.66A to 0.3A
Hardware
12v 7Ah storage battery (sold
Battery type
separately), up to 36 hours
-10 °C to 40 °C
Operation temperature
Others Dimension (W×H×D) 261 mm × 199 mm × 86.4 mm
1083g (No battery)
Weight
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation
