Bed Leveling - gCreate gMax 2 PRO Quick Start Manual

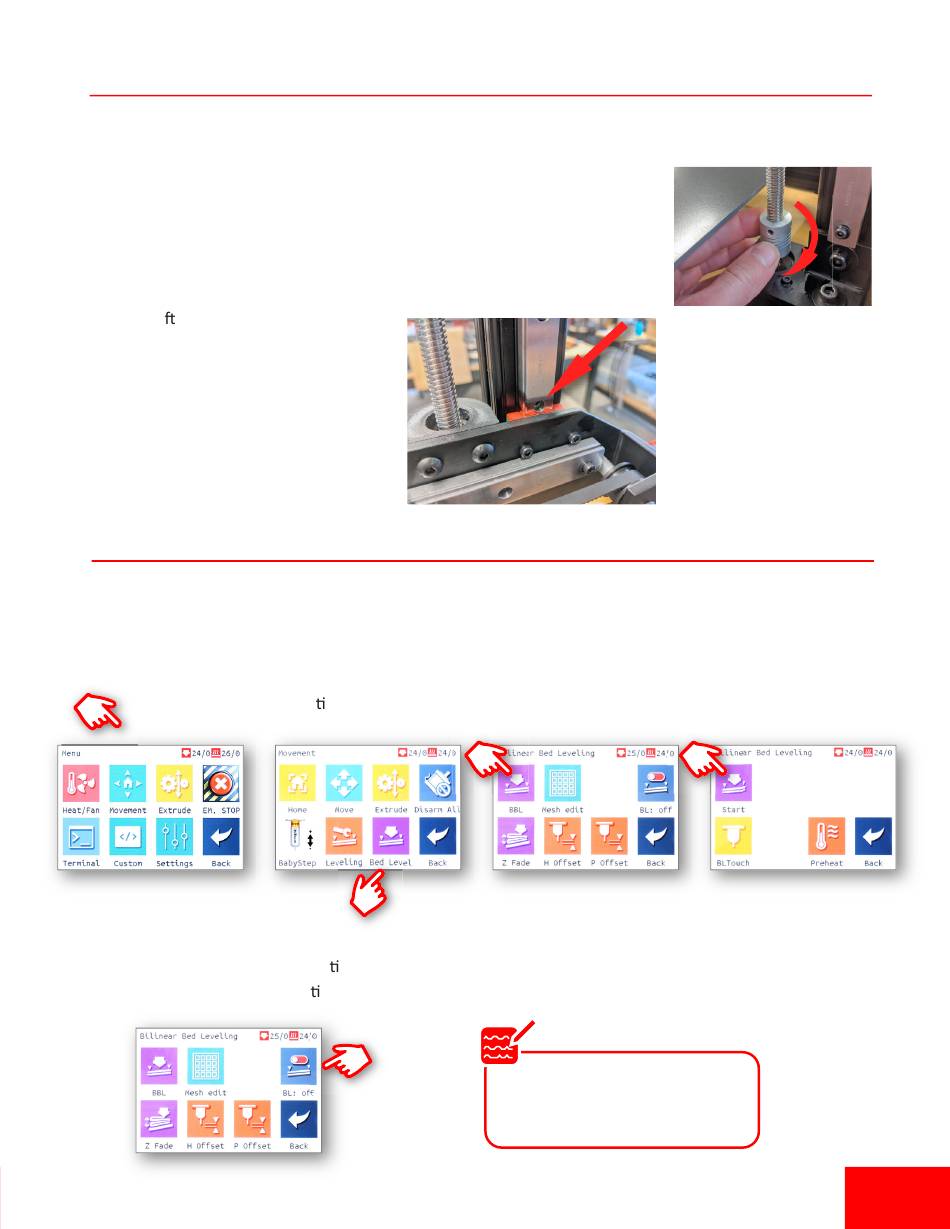

Manually Level X-Axis Arm
The gMax 2 PRO x-axis arm should be manually leveled prior to bed leveling especially after it has been shipped.
The easiest method is to turn the lead screws with the printer turned off. If the arm is not level the z-axis may bind
while it tries to lift.
1. Turn the couplers that connect the z-axis motors to the lead screws.
2. Clockwise will raise the x-axis arm and counter clockwise will lower it.
3. Line up the top of the arm to the nearest bolt hole on the linear rails for
both le and right lead screws.

Bed Leveling

The gMax 2 Pro uses Bilinear Bed Leveling (BBL) in marlin to probe the bed and create a 3d mesh for the first
layer. The mesh is saved to memory and helps ensure the extruder lays down a proper fist layer. It is important
the x-axis stays level relative to the bed. If it changes you must re-run the bed leveling. We recommend running
the bed leveling command before any large prints
1. To run the bed leveling rou ne go to 1 1. T T T To r
2. Wait for the bed leveling rou ne to finish then click "Ok" to save the mesh to memory. The bed
leveling mesh will automa cally load when you start a print.
"Menu > Movement > Bed Level > BBL >
Note
Make sure to turn Bed
Leveling on after the leveling
has completed if it is off.
Start".
Pg 6
