AXIOMTEK STX88831 Series Quick Installation Manual

STX88831 Series Quick Installation Guide

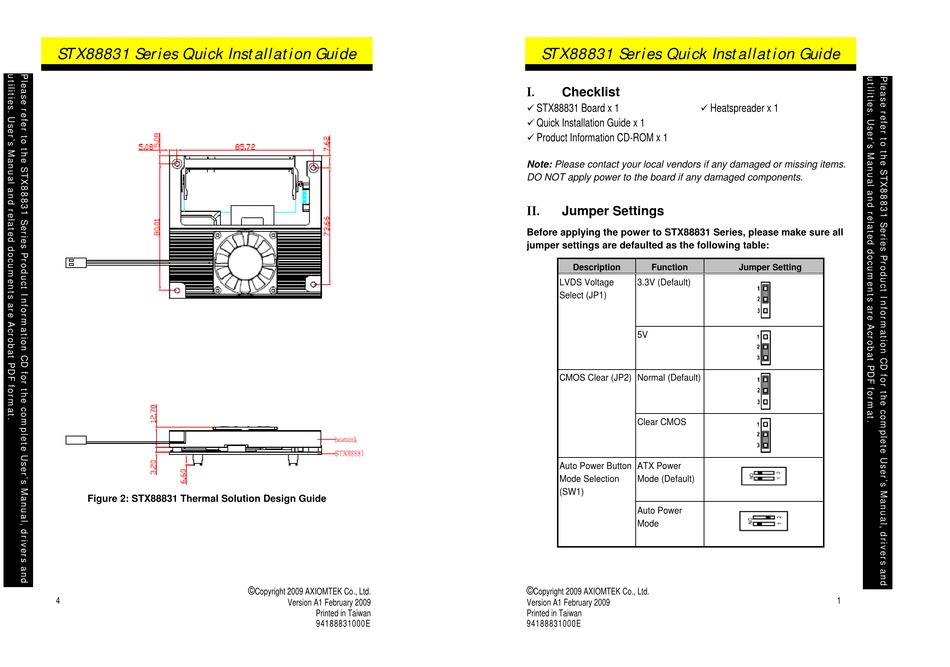

Figure 2: STX88831 Thermal Solution Design Guide
4
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 February 2009
Printed in Taiwan
94188831000E
STX88831 Series Quick Installation Guide
I.
Checklist
STX88831 Board x 1
 
Quick Installation Guide x 1

Product Information CD-ROM x 1

Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper Settings
Before applying the power to STX88831 Series, please make sure all
jumper settings are defaulted as the following table:
Description Function
LVDS Voltage 3.3V (Default)
Select (JP1)
5V
CMOS Clear (JP2) Normal (Default)
Clear CMOS
Auto Power Button ATX Power
Mode Selection Mode (Default)
(SW1)
Auto Power
Mode
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 February 2009
Printed in Taiwan
94188831000E
Heatspreader x 1
Jumper Setting
1
