KAP BMW 2009 PAS-T Manual

Video interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BMW 2009 PAS-T
(VIDEO Interface)
MODEL
BMW-PAS-160525
DATE
2017.03.29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMW 2009 PAS-T and is the answer not in the manual?

Questions and answers

Related Manuals for KAP BMW 2009 PAS-T

Summary of Contents for KAP BMW 2009 PAS-T

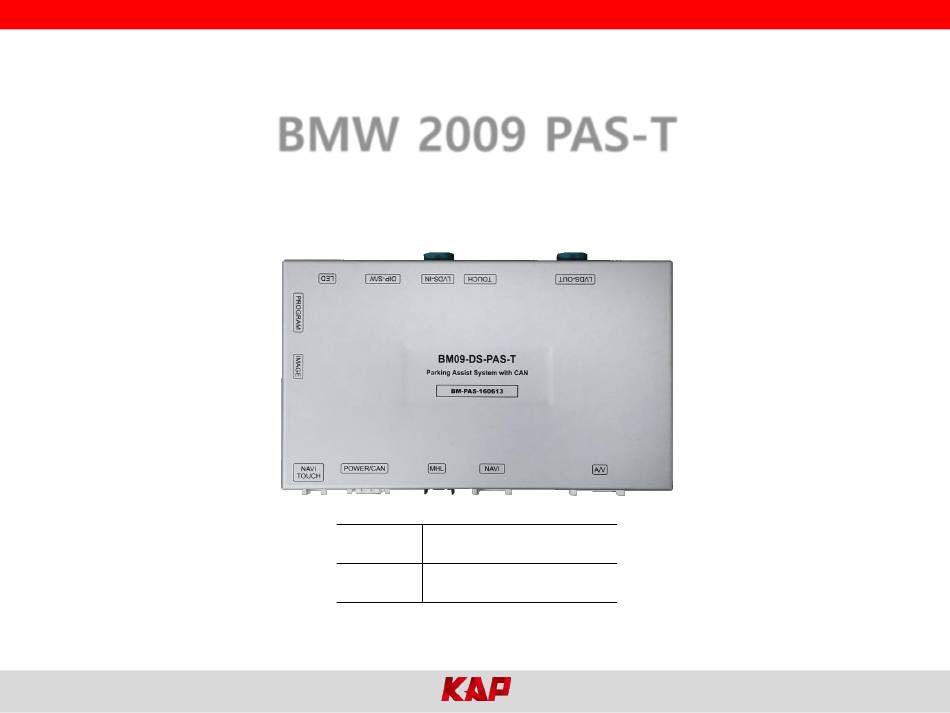

  • Page 1 BMW 2009 PAS-T (VIDEO Interface) MODEL BMW-PAS-160525 DATE 2017.03.29...
  • Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x Analog RGB Input (Navigation System source) - 1 x Analog RGB Input (MHL System source) 2.

  • Page 3: External Appearance

    External Appearance LVDS IN LVDS OUT TOUCH in DIP S/W POWER/CAN NAVI(IN) TOUCH out...

  • Page 4: Connector Pin Assignment

    Connector Pin Assignment POWER Connect NAVI Connect ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ⑤ ⑥ ① ACC(Yellow) ① R DATA (Red) ② REAR_POWER (Red) ② G DATA (Green) ③ CAN-HIGH (Orange) ③ B DATA (Blue) ④...

  • Page 5: Product Composition

    Product Composition Interface 1 EA RGB NAVI(7P) Cable 1 EA LVDS Cable 1 EA (Z(6P)-Z(6P) Type R/A) Power cable 1EA (Also included when ordering JACK BY JACK)

  • Page 6: Dip S/W Setting

    DIP S/W Setting ON : DOWN , OFF : UP DIP S/W Example FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used F10 10.25” ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used E90 8.8”...

  • Page 7: Mode Change

    Mode Change Steering Wheel Operation (E90) DMB Mode Short press : Channel up Long press : SCAN DMB Mode Short press : Channel down Long press : Mode Change NAVI AV Mode Long press : Change of screen ratio...
  • Page 8 Mode Change I-Drive Operation(Mode Change) Steering wheel button -> on/off selection to OSD MENU 8.8˝ 6.5˝ “8” button -> on/off selection to OSD MENU Short press : OEM Screen Long press : Mode Change NAVI DVB-T...
  • Page 9 Mode Change I-Drive Operation(Screen Ratio Change) RearCamera Full size RearCamera Middle size 8.8˝ 6.5˝ RearCamera None Long press : Screen Ratio Change AV Full size AV middle size AV small size...
  • Page 10 Mode Change I-Drive Operation(DVB-T(DMB) Control) - DVB-T UI off ④ Short press : channel Up ④ ⑤ Short press : channel Down ⑤ Long press : SCAN ④ ② ③ ① ① ⑤ ④ ② ③ - DVB-T UI on ④...
  • Page 11 Mode Change I-Drive Operation(DVD Control) - DVD UI on ① Short press : Selection ① Long press : DVB-T UI on ② Move to UI left ② ③ ③ Move to UI right ① ① ② ③ 8.8˝ 6.5˝ DVD UI > ON/OFF selection to OSD MENU...

  • Page 12: Osd(On Screen Display) Control

    OSD(On Screen Display) Control I-Drive Control Mode State First Menu Second Menu Third Menu Press for 6 sec - OSD ON OPTION 8.8˝ 6.5˝ Short press - MENU EXIT ENTER Item Selection, Value Selection Item up Increase selected value First > Second > Third Menu move RIGHT Third Menu >...
  • Page 13 OSD(On Screen Display) Control AMPIRE LCKT SANYO NECVOX PIONEER First Menu Second Menu Third Menu Action ELT-980XU SLIM DVX101 GI4000 Selection Korea 480*234 GI8000 Selection Korea 800*480 GI80003G Selection Korea 800*480 PANASONIC Selection Taiwan 480*234 NAVI-RGB PT-GPS800A Selection China 480*234 KD900(WVGA) Selection China 800*480 KD900(WQVGA)
  • Page 14 OSD(On Screen Display) Control DVB-T Model Sellection 1. MENU Screen ON if Press the 6 sec for OPTION Button 2. Press to move to the side. ⑤ ③ ① ③ ⑤ ④ ② 4. Press to move to the side. 3.
  • Page 15 OSD(On Screen Display) Control REAR Detect control Rear detect selection to OSD MENU GEAR 'R' turns on to enter rear mode 'R' turns off the rear mode PDC: Works like OEM. When the button's green LED is lit, it enters rear mode When the green LED on the button is off, WIRE Operate by connecting to REAR LIGHT + 12V...
  • Page 16 OSD(On Screen Display) Control Front Camera Auto Mode - Option > RearCam-RcvOpt > On Setting Off mode : 0 second On mode : 1~30 second NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 1~30 second...
  • Page 17 OSD(On Screen Display) Control Utility Menu - Reset All : Reset all setting values - Info : Software version Check the software version at future upgrade. Last Source : BEPP06SGX-130950 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version PIP model : PP=PIP, LV=LVDS Motor model : BM=BMW, BE=BENZ, MA=MASERATI, LX:LEXUS...
  • Page 18 Install Manual 1. Installation DVB-T Remote Control Connection ① or ② DVD-IR DVBT-IR SYNC ① BLUE GREEN GEX-909DTV DVB-T-IR ② TUE-T440...
  • Page 19 Install Manual 2. Installation DVD Remote Control Connection DVD-IR DVBT-IR SYNC BLUE GREEN DVD-IR DHA-S690...
  • Page 20 Install Manual 3. Installation External Reverse(Rear) Camera Connection : OSD Screen selection CAN 6. GND (Black) 5. REAR DETECT (Brown) REAR-POWER (Red) 4. CAN-LOW (Green) 3. CAN-HIGH (Orange) 2. REAR_POWER (Red) 1. BATTERY (Yellow)
  • Page 21 Install Manual – 8.8˝ Disassembly Disassembly Disconnect the power cable and LVDS cable from the back of the monitor.
  • Page 22 Q&A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input. LED and GREEN LED both are not turn on, check the CAN or ACC connection.
