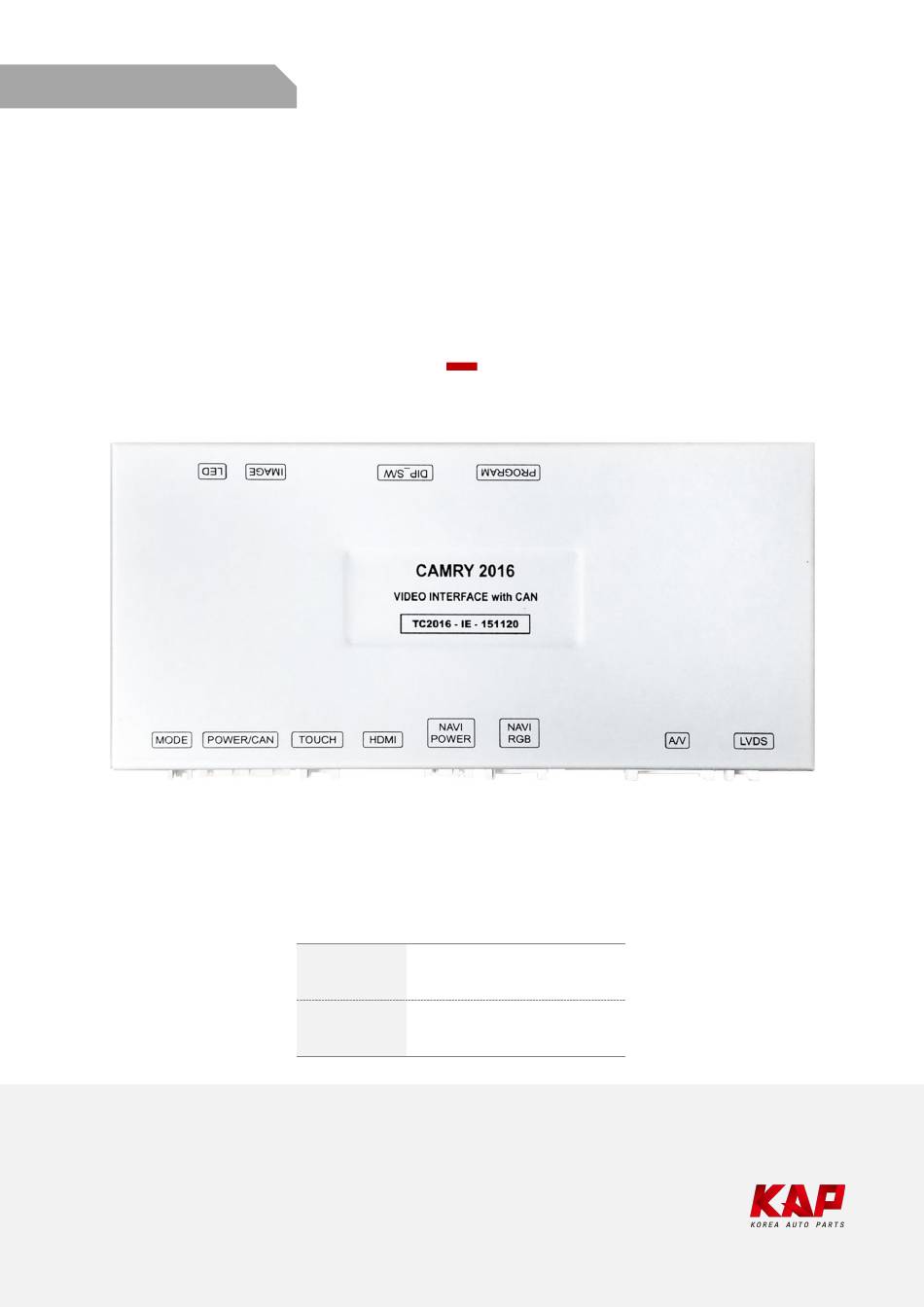

- Page 1 Instruction Manual TOYOTA CAMRY 2016 for CAMRY / RAV4 VIDEO INTERFACE TC2016-IE-151120 MODEL. 2019.04.29 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Serviceable Model 8 Inch Model Supported : 8 Inch Model Headunit Unsupported : 7 Inch Model Headunit CAMRY 7 "monitor is not supported because there is no LVDS connector...
- Page 3 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Digital RGB Input (Navigation System output) • 1 x Analog RGB Input (Navigation System output) • 2 x A/V Input (External video source) • 1 x LVDS Input. (Car Command System) 2.
-
Page 4: External Appearance

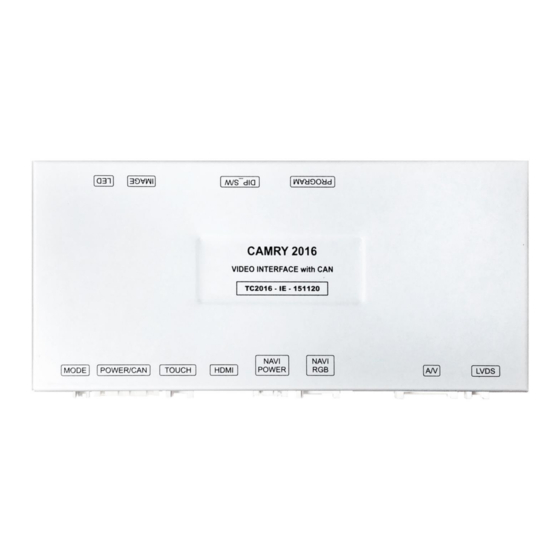

External Appearance IMAGE DIP S/W PROGRAM MODE POWER/ Touch Digital NAVI Analog LVDS POWER... -
Page 5: Connector Pin Assignment
Connector Pin Assignment POWER Connect (8Pin) ■ ■ ■ ■ ■ ■ ■ ■ Color YELLOW ORANGE GREEN BLUE BROEN BLACK BATTERY REAR DETECT REAR POWER Connect NAVI TOUCH Connect (4Pin) ■ ■ ■ ■ Color GREEN BLUE WHITE Connect NAVI POWER Connect (4Pin) ■... -
Page 6: Product Composition
Product Composition Board Power Cable NAVI Power Cable LVDS Cable A/V Cable RGB NAVI Cable OSD Board Bolt (4EA) -
Page 7: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used Car Type Select Bottom Picture Car Type Select TOYOTA 2016... -
Page 8: Mode Change
Mode Change Mode Change Button :... -
Page 9: Touch Control
Touch Control Touch Calibration / DVBT, DVD Control Method 1 Method 2 • Touch the screen for 11 seconds • OSD menu ▶ Utility ▶ Calibration Touch Calibration • + Touch according to the shape coordinates. Press Touch (Anywhere) Press Icon DVBT... -
Page 10: Osd Control
OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •... - Page 11 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off Detected by IEBUS RearCam-Det WIRE Detected by Rear-Det Wire Option Activate the UI icon...
- Page 12 OSD Control Option First Menu Second Menu Third Menu Description Using the SteeringWheel buttons Handle Button Disable feature DVB-T device control UI output function UI DVB-T (DMB) Disable feature DVD device control UI output function Option UI DVD Disable feature Set up manufacturer of woodworking FINE device for UART Touch use...
- Page 13 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 14 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 15 OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value Transparency OSD menu transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 16 OSD Control IR learning function • In order to work with the IR learning function, a separate IR cable is required. 1. In DVB-T / DVD menu, select User in Sys (OSD list) or User (learned contents). 2. Select Learn from the OSD menu. 3.
- Page 17 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Calibration Execute Run Calibration mode Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware National...
- Page 18 Install Manual 1. Installation Diagram CAMRY 2016 VIDEO INTERFACE NAVI NAVI MODE POWER/CAN TOUCH DIGITAL LVDS POWER POWER LVDS Monitor / HeadUnit...
- Page 19 Install Manual 2. Installation Navigation Connection CAMRY 2016 VIDEO INTERFACE NAVI NAVI MODE POWER/CAN TOUCH DIGITAL LVDS POWER DVD-IR DVBT-IR SYNC Bettery BLUE GREEN Analog RGB Resistive Touch POWER Navigation...
- Page 20 Install Manual 3. Installation DVB-T Remote Control Connection CAMRY 2016 VIDEO INTERFACE NAVI NAVI MODE POWER/CAN TOUCH DIGITAL LVDS POWER DVD-IR DVBT-IR SYNC Bettery BLUE GREEN POWER TUE-T440 GEX-909DTV...
- Page 21 Install Manual 4. Installation DVD Remote Control Connection CAMRY 2016 VIDEO INTERFACE NAVI NAVI MODE POWER/CAN TOUCH DIGITAL LVDS POWER DVD-IR DVBT-IR SYNC Bettery BLUE GREEN POWER DHA-S690...
- Page 22 Install Manual 5. Product fixing method Fixed with 6mm bolts • CAMRY and RAV4 are fixed with 3M double-sided tape instead of bolt because RAV4 has wrong fixing hole.
- Page 23 Install Manual 6. Installation LVDS connection...
- Page 24 Install Manual 8. Panasonic Monitor Streeing Wheel Connection method 8. GND (Black) 7. REAR_Power (Red) 6. REAR Detect (Brown) 5. KEY (Blue) 4. IE- (Green) 3. IE+ (Orange) 2. BATTERY (Yellow) 1. ACC (Red) 14 13 12 11 10 9 28 27 26 25 24 23 22 21 20 19 18 17 16 15...
- Page 25 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
