- Page 1 Instruction Manual JEEP 2018 THC3 JEEP, DODGE 8˝ Monitor VIDEO INTERFACE JP-2018-180704 MODEL. 2019.06.03 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Serviceable Model How to identify the interface check Applicable Model JEEP Grand Cherokee (2018) JEEP Renegade (2018) Not Applicable Model CTP system ex) CHRYSLER 300C 2011~2015 DODGE Journey 2011~ FIAT Freemont 2013~ Maserati Quattroporte 2014~2016 Maserati Ghibli 2014~2016 CIP system ex) 2014 JEEP Grand Cherokee...
- Page 3 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Analog RGB Input (Navigation System source) • 1 x HDMI Input (Mirroring System source) • 2 x A/V Input (External video source). • 1 x CVBS(REAR CAMERA) Input. (Rear camera source) •...
-
Page 4: External Appearance

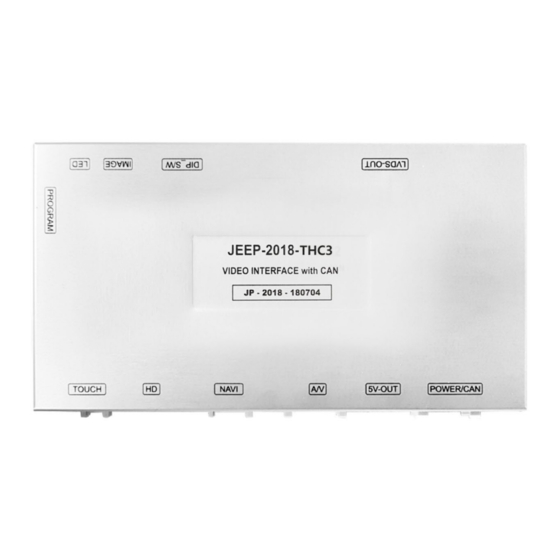

External Appearance IMAGE DIP S/W LVDS OUT ANALOG A/V USB POWER POWER/ R-TOUCH HDMI (Mirroring) -
Page 5: Connector Pin Assignment
Connector Pin Assignment TOUCH Connect (4Pin) ■ ■ ■ ■ Color GREEN BLUE WHITE Connect NAVI Connect (7Pin) ■ ■ ■ ■ ■ ■ ■ Color GREEN BLUE WHITE BLACK GREEN ORANGE R DATA G DATA B DATA SYNC DMB IR DVD IR Connect POWER Connect (16Pin) -
Page 6: Product Composition
Product Composition Board Power Cable SUB Board LVDS FFC Cable A/V Cable LVDS Cable(800mm) TOUCH IN/OUT Cable RGB NAVI Cable OSD Board LVDS Extension Board... -
Page 7: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used CAR Type Bottom image Car Type Select Grand Cherokee (2018) 8”... -
Page 8: Mode Change
Mode Change JEEP Mode Change Button Center Button • Press for 1 second to change mode Mode Change Sequence Original Original Screen Screen NAVI (DVBT) (DVD) - Page 9 Mode Change Grand Cherokee Mode Change Button BACK Button • Press for 1 second to change mode Mode Change Sequence Original Original Screen Screen NAVI (DVBT) (DVD)
- Page 10 Mode Change Dodge Challenger Mode Change Button BACK Button • Press for 1 second to change mode Mode Change Sequence Original Original Screen Screen NAVI (DVBT) (DVD)
-
Page 11: Touch Control
Touch Control Touch Calibration / DVBT, DVD Control Method 1 Method 2 • Touch the screen for 11 seconds • OSD menu ▶ Utility ▶ Calibration Touch Calibration • + Touch according to the shape coordinates. Press Touch (Anywhere) Press Icon DVBT... -
Page 12: Osd Control
OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •... - Page 13 OSD Control Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model ELT_DVBT20 DVB-T(DMB) Setting the Connected DVB-T Model Config ELT_980XU Slim Setting the Connected DVD Model Reset Execute Reset to default value of Config menu...
- Page 14 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type Equipped with external camera ExtDevice + 12V continuous supply + 12V supply only in Rear camera mode RearCam-Power AUTO + 12V off GEAR Detected by CAN RearCam-Det WIRE Detected by Rear-Det Wire Option...
- Page 15 OSD Control Option First Menu Second Menu Third Menu Description After RearCam shows FrontCam and returns to previous state FrontCam- RcvOpt Disable feature Use the Left button on the right side of the Left handle Use the 'Voice' button on the right side of Right SteeringWheel the handle...
- Page 16 OSD Control Option First Menu Second Menu Third Menu Description Switch to OEM screen when bluetooth phone comes in, return to original when phone terminated ScrChg-Call Disable feature When there is a change of air conditioning, it switches to OEM screen for 2 seconds and then returns to original state ScrChg_Climate Disable feature...
- Page 17 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
- Page 18 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 19 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 20 OSD Control Parking - Parking Ling Display ON/OFF Parking Line ON Screen Parking Line OFF Screen...
- Page 21 OSD Control Parking – Change warning message language...
- Page 22 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware National Special Software...
-
Page 23: Hdmi Interface
Install Manual 1. Installation Navigation Connection JEEP 2018 THC3 HDMI INTERFACE TOUCH HDMI NAVI POWER/CAN 16. GND(Black) DVD-IR DVBT-IR 11. ACC(Red) SYNC BLUE GREEN Analog RGB 2. Battery(Yellow) Resistive Touch Navigation... - Page 24 Install Manual 2. Installation DVB-T Remote Control Connection JEEP 2018 THC3 HDMI INTERFACE TOUCH HDMI NAVI POWER/CAN DVD-IR 16. GND(Black) DVBT-IR SYNC 11. ACC(Red) BLUE GREEN 2. Battery(Yellow) DVB-T-IR TUE-T440 GEX-909DTV...
- Page 25 Install Manual 3. Installation DVD Remote Control Connection JEEP 2018 THC3 HDMI INTERFACE TOUCH HDMI NAVI POWER/CAN DVD-IR 16. GND(Black) DVBT-IR SYNC 11. ACC(Red) BLUE GREEN 2. Battery(Yellow) DVD-IR DHA-S690...
- Page 26 Install Manual 4. Installation External Front Camera Connection JEEP 2018 THC3 HDMI INTERFACE TOUCH HDMI NAVI POWER/CAN 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C 9. N.C 8. CAN-H (Purple) 7.
- Page 27 Install Manual 5. Installation External Reverse(Rear) Camera Connection JEEP 2018 THC3 HDMI INTERFACE TOUCH HDMI NAVI POWER/CAN 16. GND (Black) 15. GND (Black) 14. Mode (Green) 13. Front-Power (Red) 12. Rear-Power (Red) 11. ACC (Red) 10. N.C 9. N.C 8. CAN-H (Purple) 7.
- Page 28 Install Manual 6. Touch in/out cable connection • Working with navigation(for touch use) only • do not work with rear camera Remove one resistor (22 ohm) Solder to the same color location as the supplied cable.
- Page 29 Install Manual 7-1. LVDS FPC cable connection Show blue Original FPC cable removal Connecting the Supplied FFC Cable Show blue Connect OEM FFC cable to SUB Connect FFC cable to SUB board board Connect blue invisibly.
- Page 30 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
