Installation - Valcom V-2001A-E Introduction



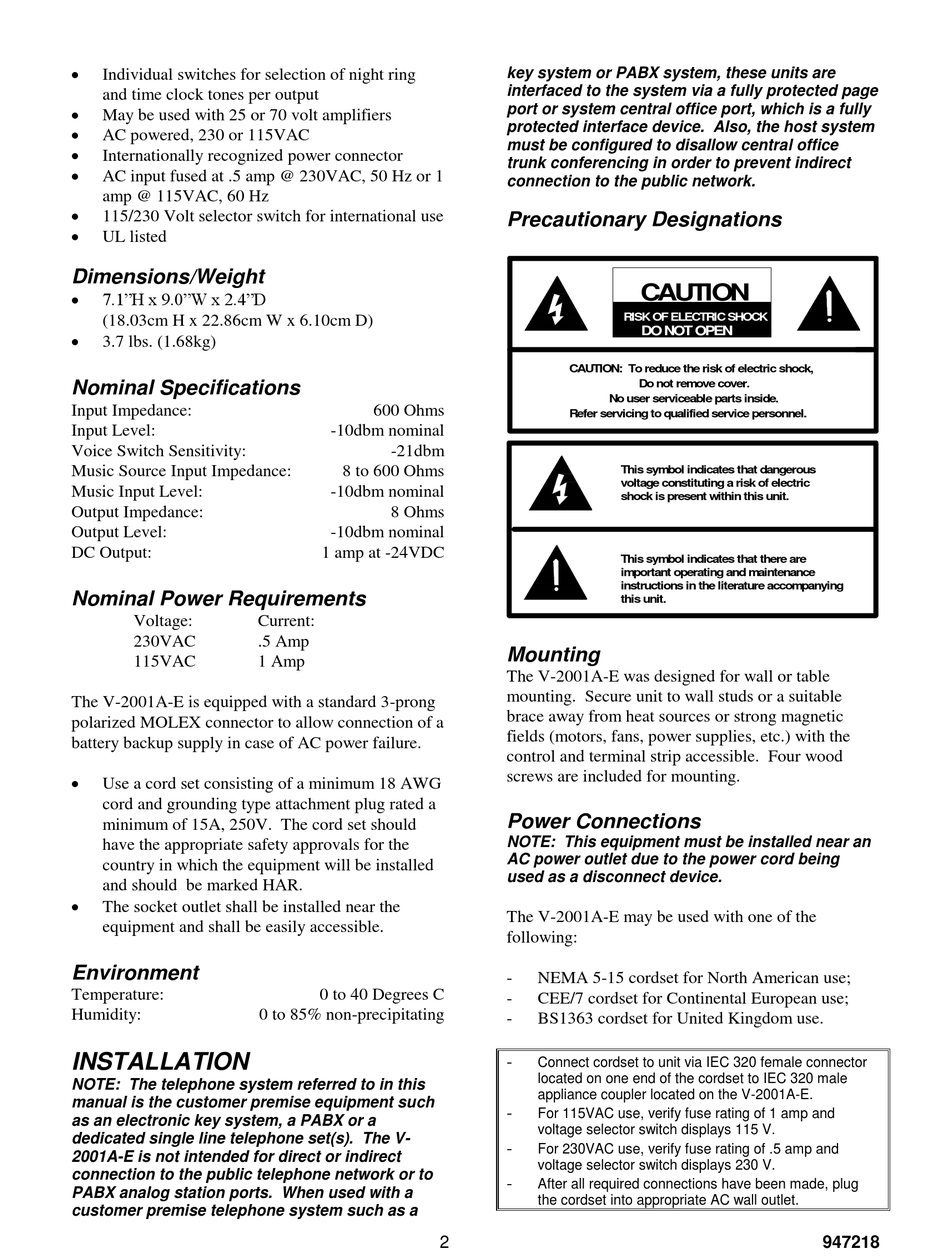

Individual switches for selection of night ring
and time clock tones per output

May be used with 25 or 70 volt amplifiers

AC powered, 230 or 115VAC

Internationally recognized power connector

AC input fused at .5 amp @ 230VAC, 50 Hz or 1
amp @ 115VAC, 60 Hz

115/230 Volt selector switch for international use

UL listed
Dimensions/Weight

7.1"H x 9.0"W x 2.4"D
(18.03cm H x 22.86cm W x 6.10cm D)

3.7 lbs. (1.68kg)
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance:
Music Input Level:
Output Impedance:
Output Level:
DC Output:
Nominal Power Requirements
Voltage:
230VAC
115VAC
The V-2001A-E is equipped with a standard 3-prong
polarized MOLEX connector to allow connection of a
battery backup supply in case of AC power failure.

Use a cord set consisting of a minimum 18 AWG
cord and grounding type attachment plug rated a
minimum of 15A, 250V. The cord set should
have the appropriate safety approvals for the
country in which the equipment will be installed
and should be marked HAR.

The socket outlet shall be installed near the
equipment and shall be easily accessible.
Environment
Temperature:
Humidity:

INSTALLATION

NOTE: The telephone system referred to in this
manual is the customer premise equipment such
as an electronic key system, a PABX or a
dedicated single line telephone set(s). The V-
2001A-E is not intended for direct or indirect
connection to the public telephone network or to
PABX analog station ports. When used with a
customer premise telephone system such as a
600 Ohms
-10dbm nominal
-21dbm
8 to 600 Ohms
-10dbm nominal
8 Ohms
-10dbm nominal
1 amp at -24VDC
Current:
.5 Amp
1 Amp
0 to 40 Degrees C
0 to 85% non-precipitating
key system or PABX system, these units are
interfaced to the system via a fully protected page
port or system central office port, which is a fully
protected interface device. Also, the host system
must be configured to disallow central office
trunk conferencing in order to prevent indirect
connection to the public network.
Precautionary Designations
CAUTION: To reduce the risk of electric shock,
No user serviceable parts inside.
Refer servicing to qualified service personnel.
Mounting
The V-2001A-E was designed for wall or table
mounting. Secure unit to wall studs or a suitable
brace away from heat sources or strong magnetic
fields (motors, fans, power supplies, etc.) with the
control and terminal strip accessible. Four wood
screws are included for mounting.
Power Connections
NOTE: This equipment must be installed near an
AC power outlet due to the power cord being
used as a disconnect device.
The V-2001A-E may be used with one of the
following:
- NEMA 5-15 cordset for North American use;
- CEE/7 cordset for Continental European use;
- BS1363 cordset for United Kingdom use.
-
Connect cordset to unit via IEC 320 female connector
located on one end of the cordset to IEC 320 male
appliance coupler located on the V-2001A-E.
-
For 115VAC use, verify fuse rating of 1 amp and
voltage selector switch displays 115 V.
-
For 230VAC use, verify fuse rating of .5 amp and
voltage selector switch displays 230 V.
-
After all required connections have been made, plug
the cordset into appropriate AC wall outlet.
2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Do not remove cover.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
947218
