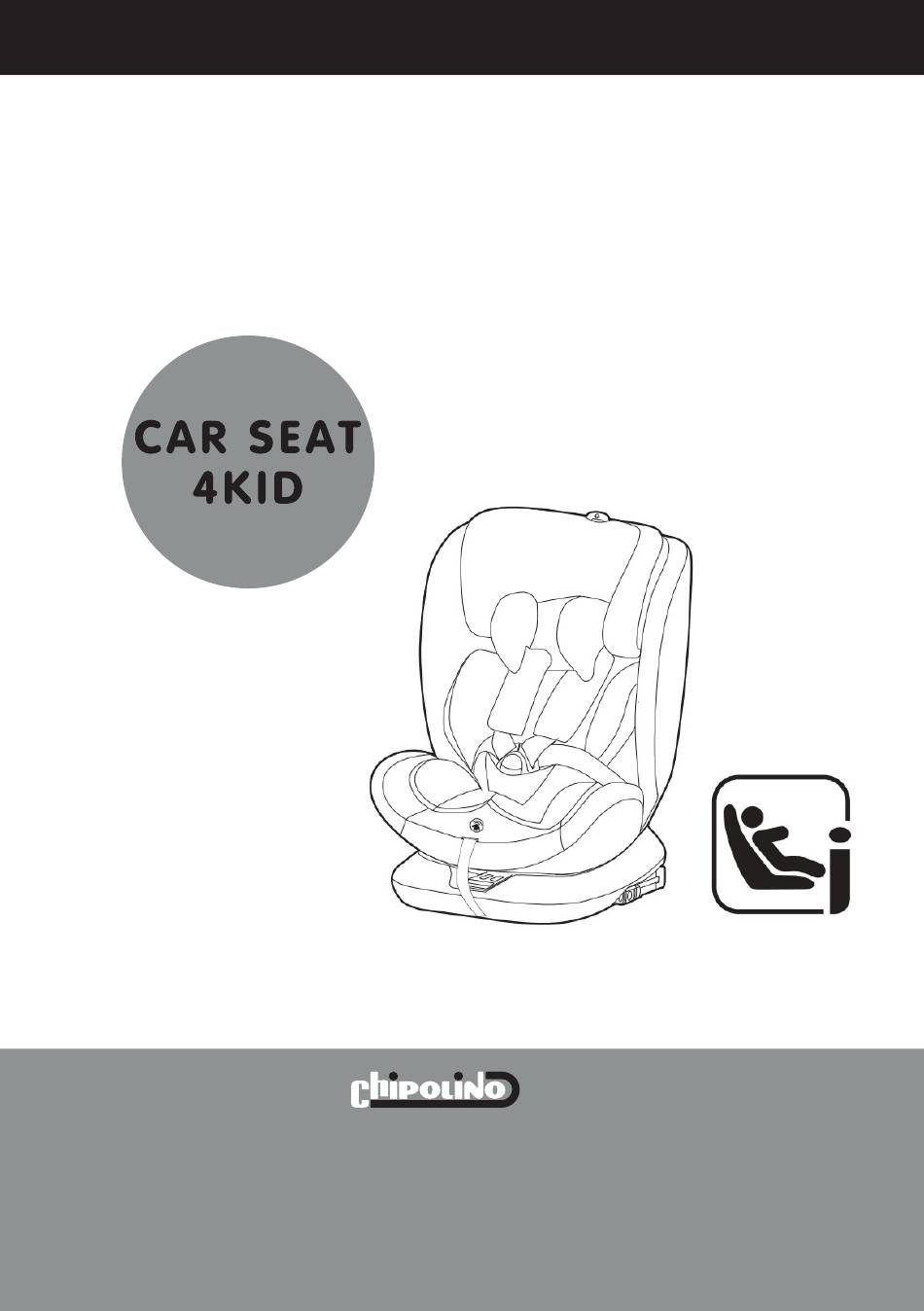

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!
INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„4KID"
This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/EU of
the European Parliament and The Council as well as the Consumer Protection
Law of Bulgarian Legislation.
Advertisement
Related Manuals for Chipolino 4KID
Summary of Contents for Chipolino 4KID
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „4KID” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...
- Page 2 Car seat “4Kid” is suitable for children with height 40-150 cm, age 0-12 years and approximate weight 0-36 kg. NOTICE Height of the child: 40-105 cm This is an I-Size Child Restraint. It is approved in accordance with Regulation № 129 for use in „i-size compatible“...
- Page 3 CAUTION! 1. NEVER INSTALL THE CAR SEAT IN “FORWARD FACING” POSITION BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS! DO NOT PLACE THE RESTRAINT SYSTEM ON A VEHICLE SEAT EQUIPPED WITH AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS! Review the instructions of the vehicle for information about airbags and conditions of transportation of children.
- Page 4 CAUTION! WARNINGS! CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED! CAUTION! DO NOT USE ANCHOR POINTS OTHER THAN THE ONES DESCRIBED IN THIS MANUAL AND MARKED ON THE RESTRAINT SYSTEM. CAUTION! WHEN YOU INSTALL THE CAR SEAT IN POSITION „REARWARD FACING“, NEVER PLACE IT ON PASSENGER SEAT, EQUIPPED WITH AIRBAG! THIS MAY LEAD TO SERIOUS INJURY OR DEATH! ...
-
Page 5: Product Features
PRODUCT FEATURES This is I-Size child restraint system, suitable for children with height 40-150 cm, age 0-12 years and an approximate weight 0-36 kg The child restraint rotates 360 degrees on the base; Backrest recline; Headrest height adjustment; ... - Page 6 ADUSTING THE HEADREST Height of child: 75-150 cm Note: Before starting to adjust the position of headrest, remove 5-point harness from the car seat (See section 4 „Removing 5-point harness from the car seat“). 6. Press the handle for adjusting the headrest (07) and at the same time move the headrest (08) upwards or downwards to reach the desired position.Release the handle (07) and the headrest will automatically fix in position (08).
- Page 7 1. INSTALLATION OF THE CAR SEAT IN “REARWARD FACING” POSITION HEIGHT OF THE CHILD: 40-105 cm THE CAR SEAT IS FITTED WITH 5-POINT HARNESS OF THE CAR SEAT + ISOFIX + TOP TETHER click...
- Page 8 1.1 Prepare the ISOFIX connectors. 1.2 Make sure the 5-point harness is correctly installed. 1.3 Make sure the 5-point harness is correctly adjusted. 1.4 Adjust the seat in most recline position. 1.5 Make sure the car seat in “REARWARD FACING” POSITION and the mechanism for rotating the seat is fixed.
- Page 9 2.1.1 Prepare the ISOFIX connectors. 2.1.2 Make sure the 5-point harness is correctly installed (see p. Installation of 5-point harness of the car seat). 2.1.3 Make sure the 5-point harness is correctly adjusted. 2.1.4 When the car seat is in “FORWARD FACING“position, there are 4 recline position. Adjust the seat in the desired position and make sure the seat is fixed in position.
- Page 10 2.2 HEIGHT OF THE CHILD: 100-150 cm INSTALLATION OF THE CAR SEAT WITH 3-POINT SAFETY BELT 2.2.1 Push back the ISOFIX connectors and fold the top tether. 2.2.2 Remove the 5–point harness of the car seat (See section “REMOVAL OF THE 5-POINT HARNESS OF THE CAR SEAT“).
- Page 11 REMOVAL OF THE CAR SEAT Press the second button (3A) and the ISOFIX release button (3B). Push back the ISOFIX connectors, to release the car seat from the attachments of the vehicle seat. Press the release button of the Top tether strap to release the strap and unlock from the vehicle. When you use the car seat for child with height from 100 to 150 cm and installation with 3-point belt of the vehicle, first release the buckle of the vehicle belt, then remove the belt.
- Page 12 Loosen the 5-point harness of the car seat (fig.46). Fix the headrest in appropriate position (fig.47). Rotate the car seat and move the headrest so that the back is facing you. Unzip (32) the rear seat cover (fig.48). Remove the shoulder belts (34) from the joint plate (33) - (fig.49 and fig.50). Turn the car seat around, so front part is facing you.
- Page 13 Take out the metal joint (33), soft shoulder pads (06), buckle (19) and soft crotch pad (43) from the additional compartments of the upholstery (35) - (fig. 56). Place the buckle (19) on the soft pad of the crotch belt (43)-(fig. 57). Turn the buckle of the crotch belt (41)and insert in the slot (40) - (fig.
- Page 14 REMOVAL OF THE FABRIC COVER 1. Move the headrest to the highest position (Fig. 70). 2. First remove the fabric cover from the headrest. 3. Remove the headrest from the rest of the car seat. REFITTING THE FABRIC COVER To put the fabric cover repeat the above-mentioned steps in reverse order.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap Fabric cover and soft pads may be hand washed at 30 С using mild detergent! Do not bleach! Do not tumble dry! Do not machine wash! Do not iron! ... - Page 16 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
