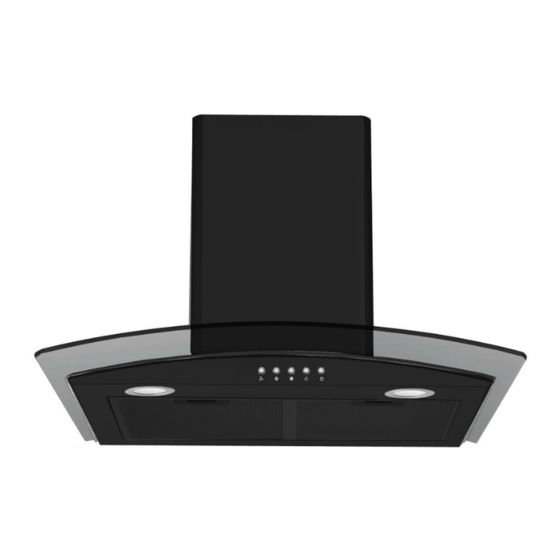

- Page 1 Instruction Manual OMEGA CURVED GLASS RANGEHOOD ORCG60MB / ORCG90MB...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
Appliance Details Rangehoods ORCG60MB / ORCG90MB Rated Voltage 220 to 240V ~ 50Hz Motor Input Power 190W Lamp (LED) 2 x 1.5W Rated Input Power 193W Max Airflow 750m Outlet Diameter 150 mm Power Connection 10 A Plug ORCG60MB ORCG90MB... -
Page 6: Installation Instructions
Installation Instructions WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. - Page 7 Installation Instructions 1. Before installation, turn the unit off and unplug it from the outlet. 2. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect. 3. After deciding the cooker hood height, measure the position of the holes for hanging the hood and inside chimney bracket.
- Page 8 Installation Instructions 6. Equip the v-flap and expansion pipe to the outlet and fixed with a cable tie. See pic 3. Put the cooker hood on the wall mounted screws. See pic 4. Note: Expansion pipe or ducting kit need to be purchased separately. 7.
- Page 9 Installation Instructions HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: • Keep expansion pipe short and straight. • Do not reduce the size or restrict the expansion pipe. • When using the expansion pipe always install the pipe pulled taut to minimize pressure loss. •...
-
Page 10: Operating Instructions
Operating Instructions Electronic button There are five buttons: (Low), (Mid), (High), (Lamp), (Power).See picture above. 1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation. 2. -
Page 11: Maintenance And Cleaning
Maintenance and Cleaning Safety Precaution • Before cleaning your rangehood or performing any maintenance, please ensure that the range hood is turned off at the power point. • Do not use abrasive cleaners to clean the range hood. The use of warm soapy water and a cloth are recommended. - Page 12 Maintenance and Cleaning BULB REPLACEMENT WARNING: The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. • Remove the grease filter. • Use a screwdriver to remove the 4pcs screws on the large glass and carefully remove the glass. •...
-
Page 13: Troubleshooting
Troubleshooting Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor does not Fan switch failed Contact Service Department. work Motor failed Contact Service Department. House fuses blown Reset/Replace fuses. Light does not work, motor Refit cord to power outlet.
