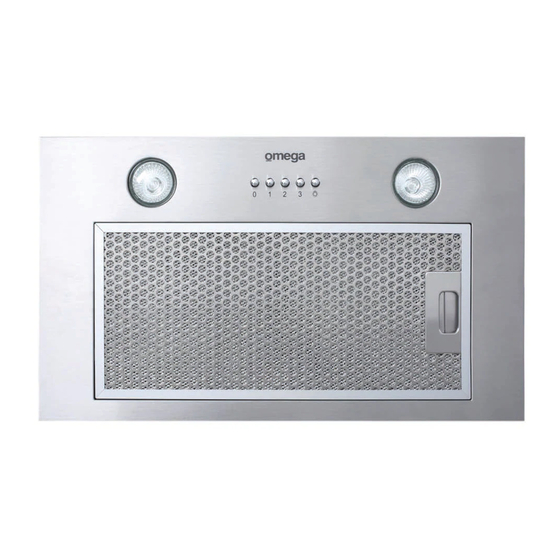

- Page 1 Instructions for the Use and Care and Installation of ORU52X ORU70X Undermount Rangehoods CONTENTS...
- Page 2 It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available.
- Page 3 1. WARNING • Young children should be supervised to ensure that they do not play with the appliance. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
-
Page 4: Installation
1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. 2. Drill a hole in the cupboard, 490*265(mm) for model ORU52X and 665*265(mm) for model ORU70X. Make sure the distance between the edge of the hole and the edge of the cupboard edge is at least 35mm. -
Page 5: Operation
3. OPERATION: Note: Before the unit can be operated, it must either be ducted. 1. Connect the plug into the power. 2. Push ‘Stop’ button, the motor will stop. 3. Push the ‘Low’ button, the motor runs at low speed. 4. -
Page 6: Light Replacement
4. LIGHT REPLACEMENT 1. Switch the unit off and disconnect from mains power first. 2. Remove filter and read labels regarding maximum lamp ratings. 3. Press the light face and remove by turning in anti-clockwise direction. 4. Pull out the halogen light bulb carefully and replace by same type and same rated halogen light bulb (12V 40W MAX). -
Page 7: Troubleshooting
Adjust the length of Insufficient suction Exhaust pipe too long pipe Check the valve if Air outlet valve not open flexible No the technical The outside wind is too strong problem For Omega service contact: 1300 739 033... -
Page 8: Specification
8. SPECIFICATION Voltage 220V-240V~/50Hz Rated motor input power 265W Illumination ≤ 40W+40W(GU-10 base halogen) Rated input power 345W Airflow 783m Outlet diameter 150mm... - Page 9 Omega products are distributed in Australia by Shriro Australia Pty Ltd. Locked Bag 5002, Kingsgrove NSW 2208 Phone: 1300 795 572 Fax: (02) 9415 5525 Email: service@shriro.com.au Web: www.omegaappliances.com.au...
