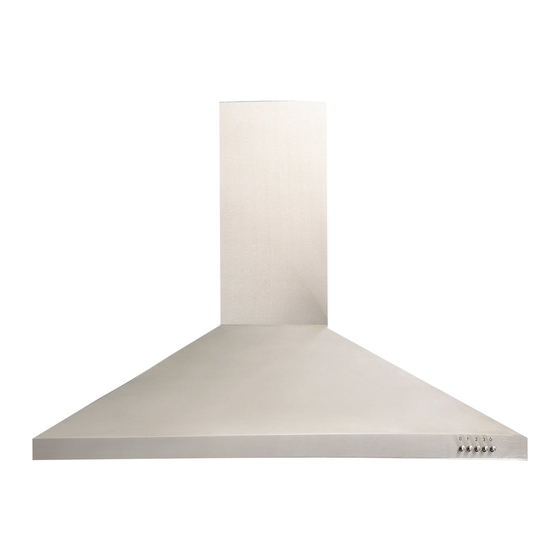

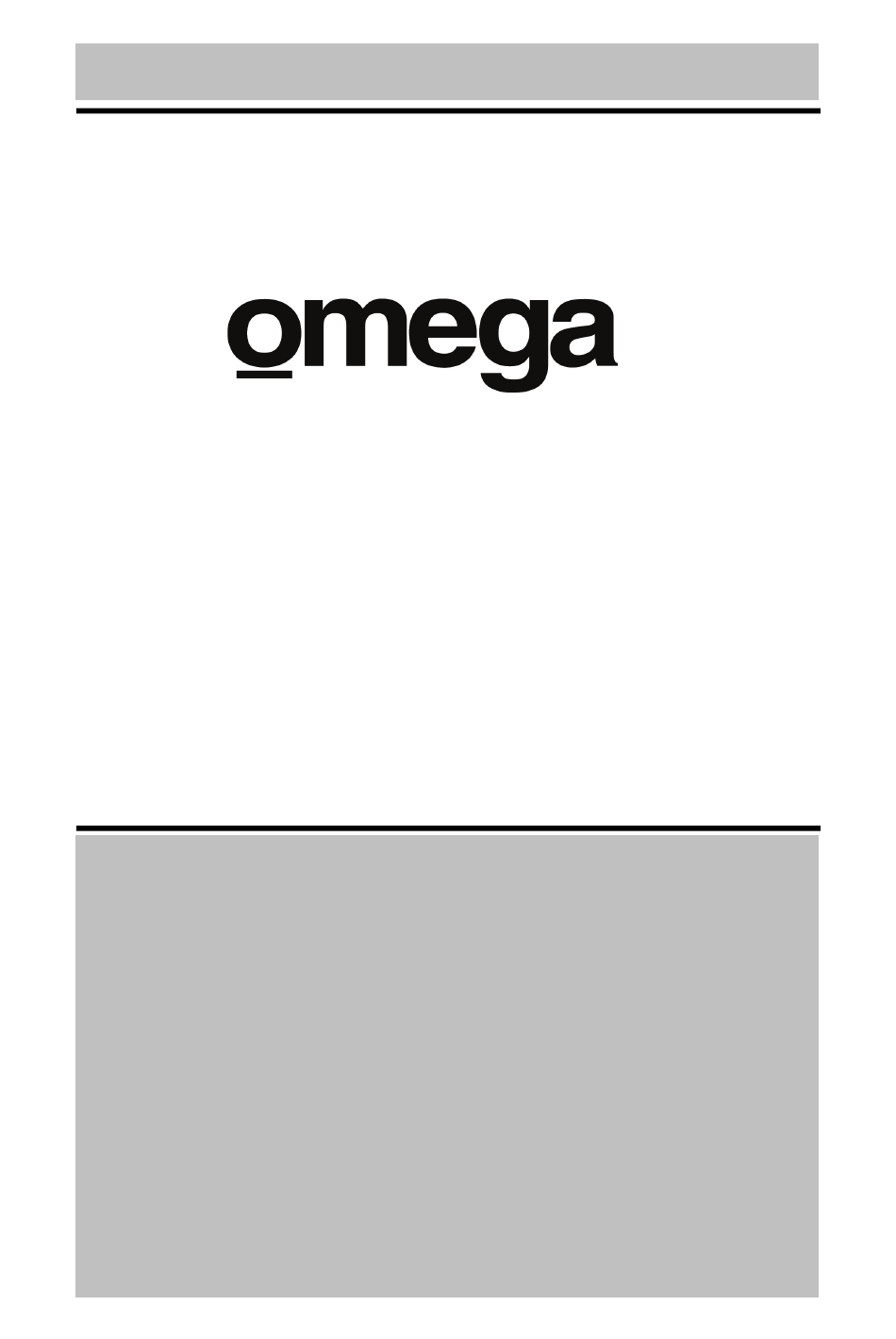

- Page 1 Instructions for the Use and Care and Installation of ORW6XA ORW9XA Wall Canopy Rangehoods...
-
Page 3: Table Of Contents
It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available. -
Page 4: Installation
(2) FEATURES The cooker hood uses high quality materials, and is made with a streamlined design. 2. Equipped with a high power electric motor and centrifugal fan, it produces strong suction with low noise, and features a non stick grease filter which is easy to clean. 3. - Page 5 (3) INSTALLATION (Cont.) 3.1 The cooker hood should be placed at a distance of 65-75cm from the cooking surface for the best effect. See Pic 1. 3.2 Install the hook in a suitable place once the installation height is fixed, and keep it vertically aligned.
-
Page 6: Safety Warnings
(4) SAFETY WARNINGS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 7: Operation Instructions
(5) OPERATION INSTRUCTIONS The re-usable aluminium grease filters supplied with this rangehood should be cleaned every month or so to avoid grease build-up. To remove the grease filter, release the locking mechanism at the front of the filter, and lower the filter slightly to unhook it at the back. Whilst the filter is removed, clean off any residual grease from the housing to avoid fire risk. - Page 8 SPEED ADJUSTMENT - See pictures 1. Push ‘Stop’ button, and the motor will stop. 2. Push the ‘Low’ button, the buzzer will buzz once, and the motor runs at low speed. 3. Push the ‘Mid’ button, the buzzer will buzz once, and the motor runs at mid speed.
-
Page 9: Maintenance
(6) MAINTENANCE 6.1 Cleaning the grease filter mesh The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly (at least every 4-6 weeks). Please strictly follow the guidelines below. -
Page 10: Troubleshooting
(7) TROUBLESHOOTING Fault Cause Solution The fan is blocked Remove the source of the blockage Light on, but motor The capacitor damaged Replace capacitor does not work The motor jammed and Replace motor bearing damaged A smell coming from the Replace motor motor Beside the above mentioned, check the following:... -
Page 11: Specification
(8) SPECIFICATIONS Rated Input 220V-240V, 50Hz Rated Power 230W Lighting Power 20W X 2 (halogen capsule lamp) Motor Power 190W Air tube diameter 150MM Air output ORW9XA 730m3/h ORW6XA 705m3/h...
Need help?
Do you have a question about the ORW9XA and is the answer not in the manual?
Questions and answers
how to change the light bulb
The documents confirm that the Omega ORW9XA rangehood uses a halogen lamp light bulb, but they do not provide specific instructions for changing it. However, in general, to change the light bulb in a rangehood:
1. Turn Off Power – Ensure the rangehood is switched off and unplugged for safety.
2. Remove the Cover – If there is a light cover or diffuser, carefully remove it.
3. Take Out the Old Bulb – Gently twist or pull out the faulty halogen bulb (depending on the fitting type).
4. Insert the New Bulb – Replace it with a compatible halogen bulb (e.g., Omega ORW9XA replacement bulb).
5. Secure the Cover – Reattach the light cover or diffuser if applicable.
6. Test the Light – Plug the rangehood back in and switch it on to confirm the new bulb works.
If further details are required, refer to the appliance manual.
