Summary of Contents for Omega ORC93XA

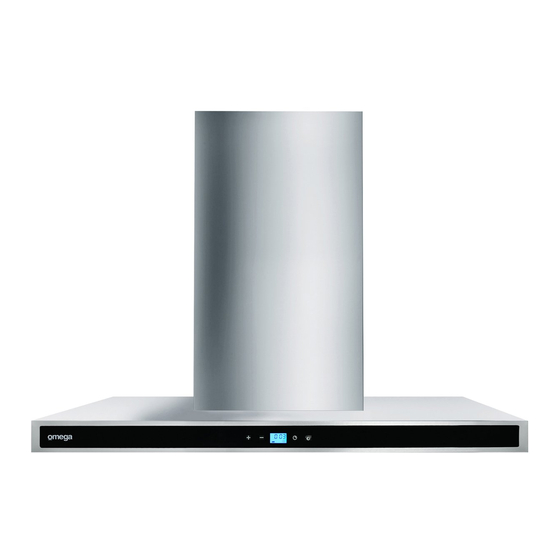

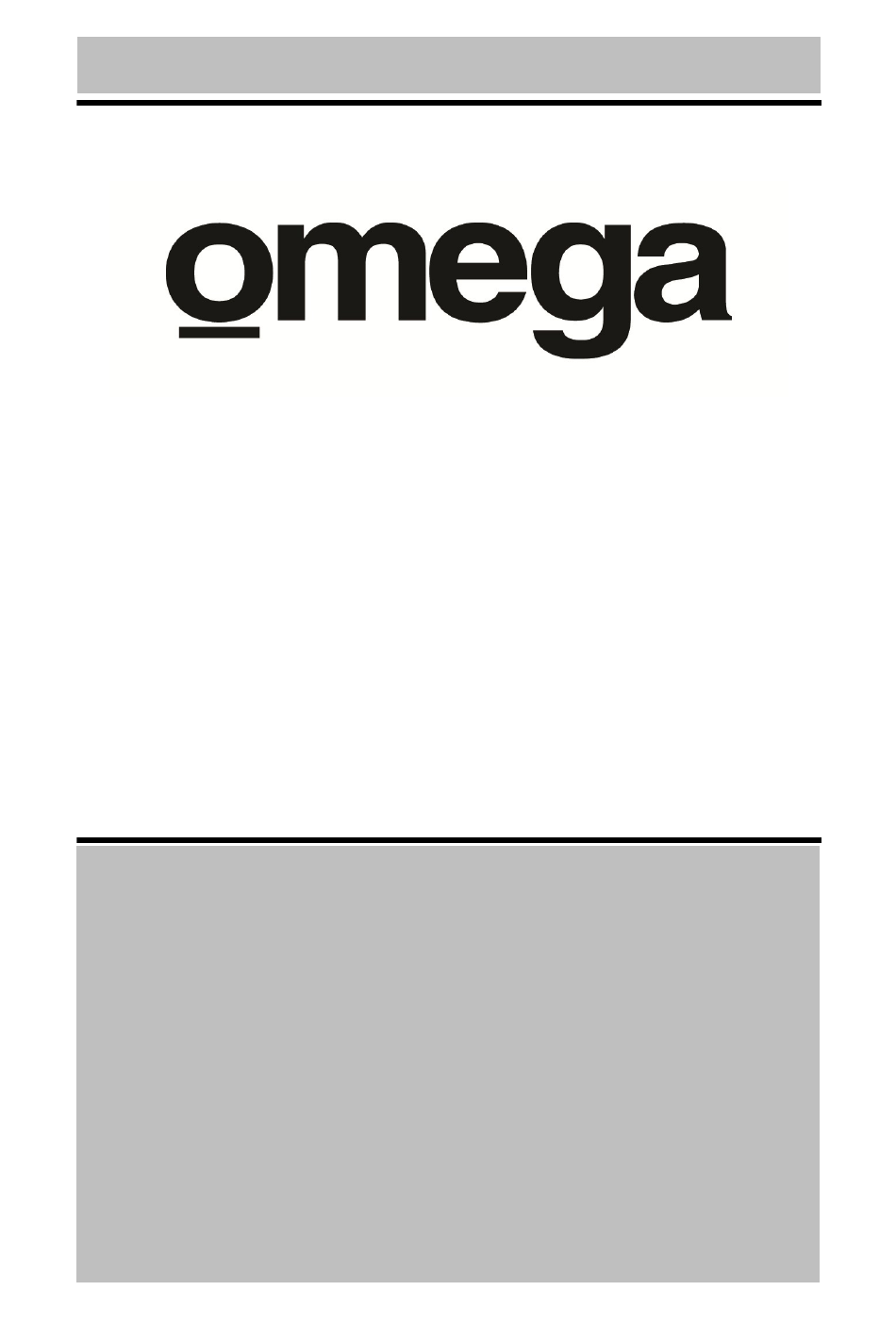

- Page 1 Instructions for the Use and Care and Installation of ORC93XA ORC94XBA Wall Canopy Rangehoods...
-
Page 2: Table Of Contents
It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are... -
Page 3: Warning
(1) Warning Young children should be supervised to ensure that they do not play • with the appliance. The appliance is not intended for use by persons (including children) • with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely. - Page 4 FEATURES 1. The cooker hood uses high quality materials, and is made with a streamlined design 2. Equipped with a high power electric motor and centrifugal fan, it produces strong suction with low noise, and features a non-stick grease filter which is easy to clean. 3.
-
Page 5: Installation
INSTALLATION 3.1 The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1. 3.2 Install the hook in a suitable place once the installation height is fixed, and keep it vertically aligned. The fixed position of the inside chimney bracket determines the location of the chimney. -
Page 6: Notice Of Installation
(4) NOTICE OF INSTALLATION 1. Before installation, please ensure the area is clean, to avoid suction of the remaining bits of broken wood and dust. 2. The canopy hood cannot share the same air ventilation ducting as other appliances, such as gas and electric heaters. 3. -
Page 7: Use Instructions
When replacing the grease filters, ensure that the locking mechanism is facing down. ORC93XA The range hood has indication diagrams to allow you to easily select the fan operating speed required. Push the low button, indicated by a fan with 3 blades, and the motor will run at a low speed. - Page 8 ORC94XBA The ORC94XBA has a touch control panel. When the power is connected and switched on you will hear a beep and the display screen will be backlit for 30 seconds and the rangehood will go into standby mode. SETTING THE TIME (24 hour time) In standby mode hold down the Timer button (2-3 seconds) until the Hour symbol on the display screen starts to flash.
- Page 9 LIGHT The lights work independently of the other functions. Push the light button and the two lighting lamps will come on the display screen will also show a light symbol. Push it again and the lamps will turn off. TIMER The timer can be used to turn off the rangehood automatically after a period of time (5, 15 and 30 minutes).
-
Page 10: Maintenance
MAINTENANCE 7.1 Cleaning the grease filter mesh The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below. Method 1: Place the mesh in 40 - 50℃... -
Page 11: Troubleshooting
Light does not work, Light damaged/No lights Replace lights motor does not work Power cord loose Contact Omega Service One way valve and the air Take down the one way ventilation entrance are not valve and seal with Oil leakage tightly sealed silicone rubber. -
Page 12: Specification
SPECIFICATION Model ORC93XA Rated Input 220V-240V, 50Hz Rated Power 305W Lighting Power 20W X 2 (halogen capsule lamp) Motor Power 265W Air tube diameter 150MM Air output 729m3/h Model ORC94XBA Rated Input 220V-240V, 50Hz Rated Power 305W Lighting Power 20W X 2 (halogen capsule... - Page 13 Omega products are distributed in Australia by Shriro Australia Pty Ltd. Locked Bag 5002, Kingsgrove NSW 2208 Phone: 1300 795 572 Fax: (02) 9415 5525 Email: service@shriro.com.au Web: www.omegaappliances.com.au...
