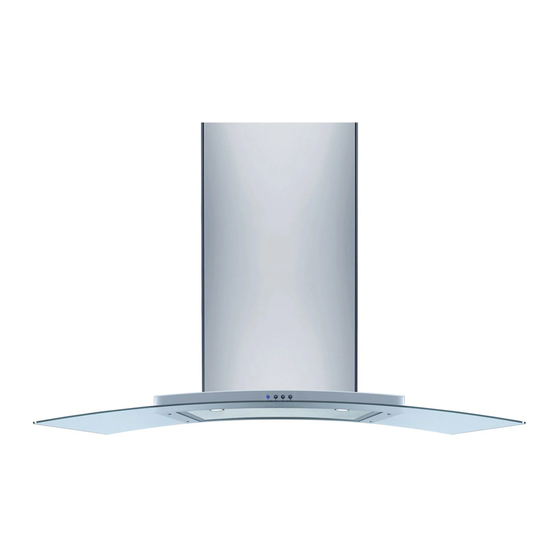

Omega ORC97G Instruction Manual
Hide thumbs
Also See for ORC97G:
- Instructions for the use and care and installation (13 pages) ,
- Instruction manual (12 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Omega ORC97G
Summary of Contents for Omega ORC97G
- Page 1 Instruction Manual Rangehood ORC97G ORC98G...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Specifications
Specifications Model ORC97G Rated Input 220V - 240V ~50Hz Rated Power 268W Lighting Power 2 x 1.5W LED Air tube diameter 150MM Air output 852m /h Net Model ORC98G Rated Input 220V - 240V ~50Hz Rated Power 268W Lighting Power 2 x 1.5W LED... -
Page 6: Installation Instructions
Installation Instructions Before installation, please ensure the area is clean, to avoid suction of the remaining bits of broken wood and dust. The canopy hood cannot share the same air ventilation ducting as other appliances, such as gas and electric heaters. The bending of the ventilation ducting should be ≥... -
Page 7: Operating Instructions
Installation Instructions Fig. 06 Fig. 07 Note: Fix the Canopy with safety screws. See Pic 5. The two safety screw holes are positioned on the back casing, with a diameter of 6mm. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. -
Page 8: Maintenance
Maintenance CLEAINING THE GREASE FILTER MESH The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please follow the guidelines below. Place the mesh in 40 – 50°C clean water, add in a small amount of detergent, and soak for 2 - 3 minutes. Wear gloves, and clean with a soft brush. -
Page 9: Troubleshooting
Troubleshooting Fault Cause Solution The fan is blocked Contact service The capacitor is damaged Contact service Light on, but motor does The motor jammed and bearing not work Contact service damaged A smell coming from the motor Contact service Besides the above mentioned, check the following: Light does not work;... -
Page 10: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
