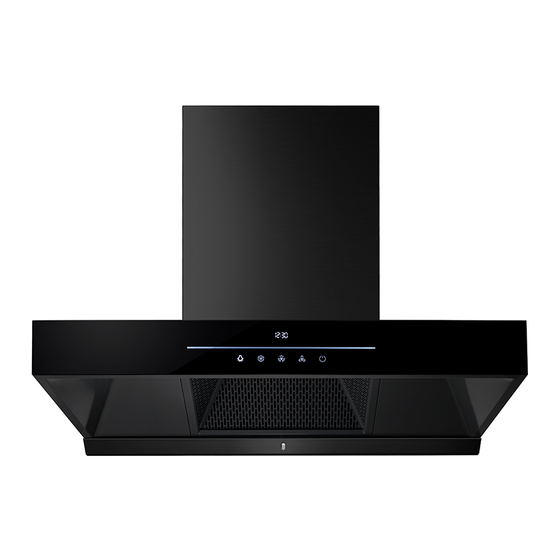

- Page 1 Instruction Manual 90CM Rangehood ORC916MB...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings Important: Please read the entire instructions before installing the rangehood. Check appliance for damage or missing parts (if damaged, do not install). • Always switch power off prior to installation. All electrical work must be done in accordance with local and national electrical codes as applicable. •... -
Page 5: Product Details
Product Details ORC916MB Voltage Rating 220-240V ~50Hz Power Rating 284W LED Lamp Rating 1x4W... -
Page 6: Pre-Installation Instructions
Pre-Installation Instructions Ducting Options The method of ducting should be carefully considered before installing the rangehood. The guide below recommends the ducting components to use for all common ducting configurations - through the top of the home (for the roof and eaves) and through the wall of the home. It is recommended to use the 2M Ø180mm flexi ducting included and the Ø... - Page 7 The cabinet must take a weight bearing of at least 40kgs weight. Whenever possible, protect the Rangehood with a fabric sheet or similar. Note: ORC916MB is not suitable for Wall or Soffit Ducting with a 2.4m stud height. Stud heights of 2.55m and above are OK.
-
Page 8: Installation Instructions
Installation Instructions • With the rangehood unpackaged, place the outlet spacer on top of the outlet hole, place the Ø180mm outlet on top of that, line up the mounting holes and fix in place using eight of the 15mm screws. •... -
Page 9: Operating Instructions
Operating Instructions Controls The control panel for the ORC916MB is black glass with touch sensors. Each function is represented by an icon, which when pressed (touched) will activate the function. Each time it is pressed a “beep” will be heard. -
Page 10: Cleaning And Maintenance
Cleaning and Maintenance General Maintenance Switch off the rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil-based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently. -
Page 11: Troubleshooting
Troubleshooting Fault Cause Solution The LED damaged Lights do not work, but Contact Service LED wiring connection poor fan works Department LED switch damage Motor bearings damage Lights work, but fan does Contact Service Motor burn out not work Department Motor control switch damage Plug contact outlet bad Fix or change... -
Page 12: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
