- Page 1 Taurus Series Multimedia Players V1.4.1 NS120100612 TB2-4G & TB2-4G (Optional 4G) Specifications...
-
Page 2: Table Of Contents
Taurus Series Multimedia Players Table of Contents TB2-4G & TB2-4G (Optional 4G) Specifications Table of Contents Table of Contents ..........................i 1 Overview ............................1 1.1 Introduction ..............................1 1.2 Application ..............................1 2 Features ............................3 2.1 Powerful Processing Capability ........................3 2.2 Comprehensive Control Plans ........................ - Page 3 Taurus Series Multimedia Players Table of Contents TB2-4G & TB2-4G (Optional 4G) Specifications 6.3.2 Encoder ..............................16 www.novastar.tech...
-
Page 4: Overview
USB drive importing display 1.2 Application Taurus series products can be widely used in LED commercial display field, such as bar screen, chain store screen, advertising machine, mirror screen, retail store screen, door head screen, on board screen and the screen requiring no PC. - Page 5 mode mobile phone to enable single-point connection and management of a screen. Cluster screen: Use the cluster solution developed by NovaStar to realize centralized management and monitor of multiple screens. Connection Wired connection: A PC connects to Taurus through the type Ethernet cable or LAN.
-
Page 6: Features
Taurus Series Multimedia Players 2 Features TB2-4G & TB2-4G (Optional 4G) Specifications Features 2.1 Powerful Processing Capability 1.2 GHz four-core processor Support for 1080P video hardware decoding 1 GB operating memory 8 GB on-board internal storage space with 4 GB available for users 2.2 Comprehensive Control Plans... -
Page 7: Synchronous And Asynchronous Dual-Mode
Taurus Series Multimedia Players 2 Features TB2-4G & TB2-4G (Optional 4G) Specifications More efficient: Use the cloud service mode to process services through a uniform platform. For example, VNNOX is used to edit and publish solutions, and NovaiCare is used to centrally monitor display status. -
Page 8: Module
Taurus Series Multimedia Players 2 Features TB2-4G & TB2-4G (Optional 4G) Specifications Wi-Fi AP signal strength is related to the transmit distance and environment. Users can change the Wi-Fi antenna as required. 2.5 4G Module The TB2-4G and TB2-4G (Optional 4G) are designed with 4G module. You can connect to the Internet via 4G network after turning on mobile data network in the client software ViPlex. -
Page 9: Hardware Structure

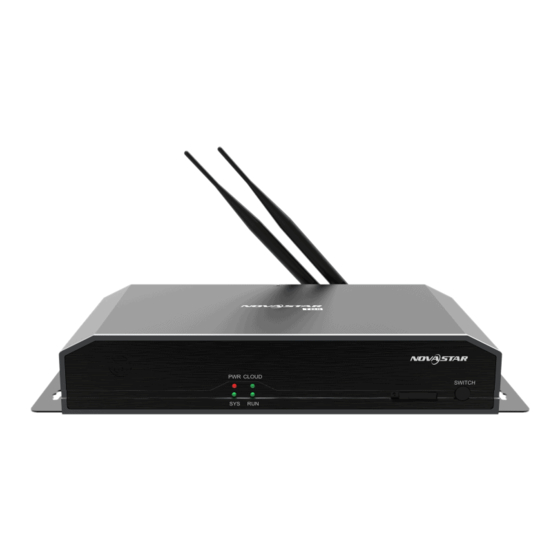

Taurus Series Multimedia Players 3 Hardware Structure TB2-4G & TB2-4G (Optional 4G) Specifications Hardware Structure 3.1 Appearance 3.1.1 Front Panel Figure 3-1 Front panel Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary. - Page 10 Taurus Series Multimedia Players 3 Hardware Structure TB2-4G & TB2-4G (Optional 4G) Specifications Name Description Power status indicator Always on: Power input is normal. System status indicator Flashing once every other 2 seconds: The system is operating normally. ...
-
Page 11: Rear Panel
Taurus Series Multimedia Players 3 Hardware Structure TB2-4G & TB2-4G (Optional 4G) Specifications 3.1.2 Rear Panel Figure 3-2 Rear panel Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary. Table 3-2 Rear panel description... -
Page 12: Dimensions
Taurus Series Multimedia Players 3 Hardware Structure TB2-4G & TB2-4G (Optional 4G) Specifications 3.2 Dimensions Unit: mm www.novastar.tech... -
Page 13: Software Structure
Taurus Series Multimedia Players 4 Software Structure TB2-4G & TB2-4G (Optional 4G) Specifications Software Structure 4.1 System Software Android operating system software Android terminal application software FPGA program Note: The third-party applications are not supported. 4.2 Configuration Software... -
Page 14: Product Specifications
Taurus Series Multimedia Players 5 Product Specifications TB2-4G & TB2-4G (Optional 4G) Specifications Product Specifications Specifications Electrical Input voltage 5 V DC Parameters Maximum power 15 W consumption Storage Space Operating memory 1 GB Internal storage 8 GB on-board with 4 GB available for... - Page 15 Taurus Series Multimedia Players 5 Product Specifications TB2-4G & TB2-4G (Optional 4G) Specifications Wi-Fi Antenna Unit: mm 4G Antenna Unit: mm www.novastar.tech...
-
Page 16: Audio And Video Decoder Specifications
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB2-4G & TB2-4G (Optional 4G) Specifications Audio and Video Decoder Specifications 6.1 Image 6.1.1 Decoder Type Codec Supported Image Size Container Remarks JPEG JFIF file format 48x48 pixels~8176x8176 JPG, JPEG Not Support 1.02... -
Page 17: Audio
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB2-4G & TB2-4G (Optional 4G) Specifications 6.2 Audio 6.2.1 Decoder Type Codec Channel Bit rate Sampling File Format Remarks rate MPEG MPEG1/2/2.5 8kbps~320Kb 8KHZ~48 MP1, MP2, Audio Layer1/2/3 ps, CBR and... -
Page 18: Video
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB2-4G & TB2-4G (Optional 4G) Specifications 6.3 Video 6.3.1 Decoder Type Codec Supported Image Maximum Maximum Bit File Format Remarks Size Frame Rate Rate (Ideal Case) MPEG MPEG 48×48 30fps... - Page 19 Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB2-4G & TB2-4G (Optional 4G) Specifications Type Codec Supported Image Maximum Maximum Bit File Format Remarks Size Frame Rate Rate (Ideal Case) MOTI MJPE 48×48 30fps 38.4Mbps pixels~1920×108 JPEG 8 pixels Note: Output data format is YUV420 semi-planar, and YUV400(monochrome) is also supported for H.264.
