- Page 1 TCB300 LCD Multimedia Player V1.1.2 User Manual...
-
Page 2: Change History
TCB300 LCD Multimedia Player User Manual Change History Change History Version Release Date Description V1.1.2 2020-01-02 Updated decoder specifications. V1.1.0 2019-08-05 Updated the internal storage space. Updated the storage temperature range. V1.0.4 2019-07-23 Updated decoder specifications. V1.0.3 2019-07-01 Deleted the description on connecting to PC through USB. -
Page 3: Table Of Contents
TCB300 LCD Multimedia Player User Manual Contents Contents Change History ..........................i Contents ............................ii 1 Overview ............................1 2 Hardware Structure........................2 2.1 Appearance ..............................2 2.1.1 Front Panel ............................... 2 2.1.2 Rear Panel ..............................3 2.2 Dimensions ..............................4 3 Related Software ........................... -
Page 4: Overview
TCB300 LCD Multimedia Player User Manual 1 Overview Overview The TCB300 is an LCD multimedia player from NovaStar, which is used for LCD displays in the fields such as advertising media, digital signage and commercial display. Features Powerful processing capability ... -
Page 5: Hardware Structure

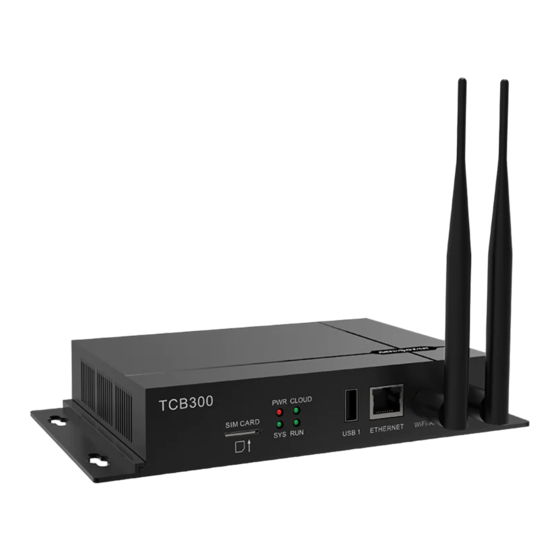

TCB300 LCD Multimedia Player User Manual 2 Hardware Structure Hardware Structure 2.1 Appearance 2.1.1 Front Panel Figure 2-1 Front panel Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary. Table 2-1 Front panel description... -
Page 6: Rear Panel
TCB300 LCD Multimedia Player User Manual 2 Hardware Structure Name Description Flashing once every other 2 seconds: The unit is connected to VNNOX and the connection status is normal. Reserved USB 1 USB 2.0 port ETHERNET Gigabit Ethernet port... -
Page 7: Dimensions
TCB300 LCD Multimedia Player User Manual 2 Hardware Structure 2.2 Dimensions Unit: mm www.novastar.tech... -
Page 8: Related Software
TCB300 LCD Multimedia Player User Manual 3 Related Software Related Software Name Type Description Where to Get ViPlex Handy Mobile LAN-based screen client management software for Android and iOS, which is mainly used for screen management, solution editing and publishing. -
Page 9: Hardware Connection
PC to obtain IP address automatically. Wi-Fi AP The TCB300 comes with a permanent Wi-Fi AP. The SSID defaults to "AP+Last 8 digits of SN", for example, "AP10000033", and the password defaults to "12345678". No configuration required 4.2 Conenction Status Check... -
Page 10: Typical Functions
Typical Functions 5.1 Terminal Login 5.1.1 ViPlex Handy (for Android and iOS) You can log in to one TCB300 unit with ViPlex Handy. Logging in to multiple TCB300 units at the same time is not allowed. Before You Begin Complete hardware connection. -
Page 11: Solution Publishing
After detecting the TCB300, ViPlex Express will try to log in to TCB300 with the default account or the account used for last login. : Denotes that the TCB300 is online and you can log in to it. Go to Step ... -
Page 12: Viplex Express (For Windows)
TCB300 LCD Multimedia Player User Manual 5 Typical Functions Figure 5-2 Solution layout Step 6 Tap , choose a media type, which supports image, video, text, analog clock, weather and digital clock. Step 7 Set media properties and click OK. - Page 13 TCB300 LCD Multimedia Player User Manual 5 Typical Functions Figure 5-3 Solution editing Solution page editing area Page media editing area Property editing area Save button Settings button Button to add media Preview button Button to publish solutions Step 5 After the editing is complete, click to save the solution.
-
Page 14: Product Specifications
TCB300 LCD Multimedia Player User Manual 6 Product Specifications Product Specifications Specifications Electrical Input voltage 5 V DC Parameters Maximum power 15 W consumption Storage Space Operating memory 1 GB Internal storage space 32 GB on-board with 28 GB available for... -
Page 15: Audio And Video Decoder Specifications
TCB300 LCD Multimedia Player User Manual Contents Audio and Video Decoder Specifications 7.1 Image Type Codec Supported Image Size Container Remarks JPEG JFIF file format 48×48 pixels~8176×8176 JPG, JPEG Not Support Non- 1.02 pixels interleaved Scan Software support SRGB JPEG... -
Page 16: Video
TCB300 LCD Multimedia Player User Manual 7 Audio and Video Decoder Specifications Type Codec Channel Bit rate Sampling File Format Remarks rate Q1~Q10 8KHZ~48 OGG, OGA FLAC Compress Level 8KHZ~48 FLAC ADIF, ATDS 8KHZ~48 AAC, M4A Header AAC-LC and AAC-HE,... - Page 17 TCB300 LCD Multimedia Player User Manual 7 Audio and Video Decoder Specifications Type Codec Supported Image Maximum Maximum Bit File Format Remarks Size Frame Rate Rate (Ideal Case) H.265/HE H.265/ 64×64 1080P@60fps 57.2Mbps MKV, MP4, Support HEVC pixels~1920×108 MOV, TS...
