- Page 1 Taurus Series Multimedia Players TB4 Specifications Document Version: V1.3.2 Document Number: NS120100359...
- Page 2 Xi’an NovaStar Tech Co., Ltd. Statement You are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may make improvements and/or changes to this document at any time and without notice.
-
Page 3: Table Of Contents
Taurus Series Multimedia Players Table of Contents TB4 Specifications Table of Contents Table of Contents ..........................ii 1 Overview ............................1 1.1 Introduction ..............................1 1.2 Application ..............................2 2 Features ............................3 2.1 Synchronization mechanism for multi-screen playing ................. 3 2.2 Powerful Processing Capability ........................ -
Page 4: Overview
Taurus series products are NovaStar's second generation of multimedia players dedicated to small and medium-sized full-color LED displays. Features The TB4 of the Taurus series products (hereinafter referred to as “TB4”) has the following features: Synchronization mechanism for multi-screen playing ... -
Page 5: Application
TB4 Specifications 1.2 Application Taurus series products can be widely used in LED commercial display field, such as bar screen, chain store screen, advertising machine, mirror screen, retail store screen, door head screen, on board screen and the screen requiring no PC. -
Page 6: Features
Taurus Series Multimedia Players 2 Features TB4 Specifications Features 2.1 Synchronization mechanism for multi-screen playing The TB4 support switching on/off function of synchronous display. When synchronous display is enabled, the same content can be played on different displays synchronously if the time of different TB4 units are synchronous with one another and the same solution is being played. -
Page 7: Synchronous And Asynchronous Dual-Mode
Taurus Series Multimedia Players 2 Features TB4 Specifications Control Plan Connecting Mode User Terminal Related Software Cluster remote Ethernet cable Mobile phone, Pad VNNOX solution and PC Wi-Fi ViPlex Handy publishing and ViPlex Express screen control Cluster remote Ethernet cable... - Page 8 Taurus Series Multimedia Players 2 Features TB4 Specifications TB4’s Wi-Fi AP signal strength is related to the transmit distance and environment. Users can change the Wi-Fi antenna as required. www.novastar.tech...
-
Page 9: Hardware Structure

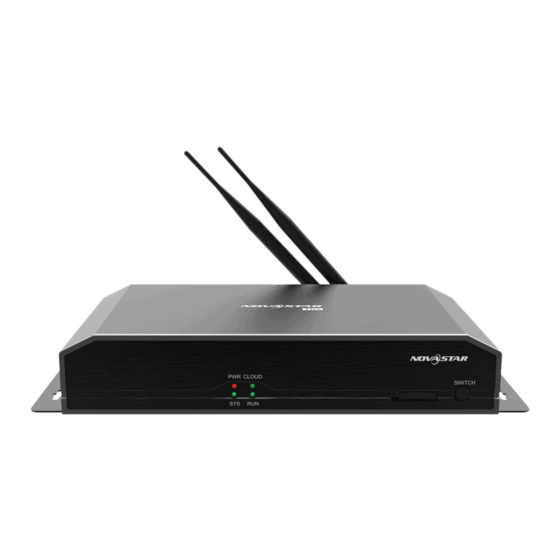

Taurus Series Multimedia Players 3 Hardware Structure TB4 Specifications Hardware Structure 3.1 Appearance 3.1.1 Front Panel Figure 3-1 Front panel of the TB4 Note: All product pictures shown in this document are for illustration purpose only. Actual product may vary. -
Page 10: Rear Panel
Taurus Series Multimedia Players 3 Hardware Structure TB4 Specifications Name Description SWITCH Button for switching between synchronous and asynchronous modes Always on: Synchronous mode Off: Asynchronous mode 3.1.2 Rear Panel Figure 3-2 Rear panel of the TB4 Note: All product pictures shown in this document are for illustration purpose only. -
Page 11: Dimensions
Taurus Series Multimedia Players 3 Hardware Structure TB4 Specifications Name Description ON/OFF Power switch 100-240V~,50/60Hz Power input 3.2 Dimensions Unit: mm www.novastar.tech... -
Page 12: Software Structure
Taurus Series Multimedia Players 4 Software Structure TB4 Specifications Software Structure 4.1 System Software Android operating system software Android terminal application software FPGA program Note: The third-party applications are not supported. 4.2 Related Configuration Software Table 4-1 Related configuration software... -
Page 13: Product Specifications
Taurus Series Multimedia Players 5 Product Specifications TB4 Specifications Product Specifications Specifications Electrical Input power supply 100 V–240 V AC Parameters Maximum power 18 W consumption Storage Space Operating memory 2 GB Internal storage space 8 GB on-board with 4 GB available... -
Page 14: Audio And Video Decoder Specifications
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB4 Specifications Audio and Video Decoder Specifications 6.1 Image 6.1.1 Decoder Type Codec Supported Image Size Container Remarks JPEG JFIF file format 48×48 pixels~8176×8176 JPG, JPEG Not Support 1.02 pixels... -
Page 15: Audio
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB4 Specifications 6.2 Audio 6.2.1 Decoder Type Codec Channel Bit rate Sampling File Format Remarks rate MPEG MPEG1/2/2.5 8kbps~320Kb 8KHZ~48 MP1, MP2, Audio Layer1/2/3 ps, CBR and Windows WMA Version 4,... -
Page 16: Video
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB4 Specifications 6.3 Video 6.3.1 Decoder Type Codec Supported Image Maximum Maximum Bit File Format Remarks Size Frame Rate Rate (Ideal Case) MPEG MPEG 48×48 30fps 80Mbps DAT, MPG, Support... -
Page 17: Encoder
Taurus Series Multimedia Players 6 Audio and Video Decoder Specifications TB4 Specifications Type Codec Supported Image Maximum Maximum Bit File Format Remarks Size Frame Rate Rate (Ideal Case) pixels~1920×108 TS, MKV, AVI 8 pixels MOTI MJPE 48×48 30fps 38.4Mbps pixels~1920×108...
