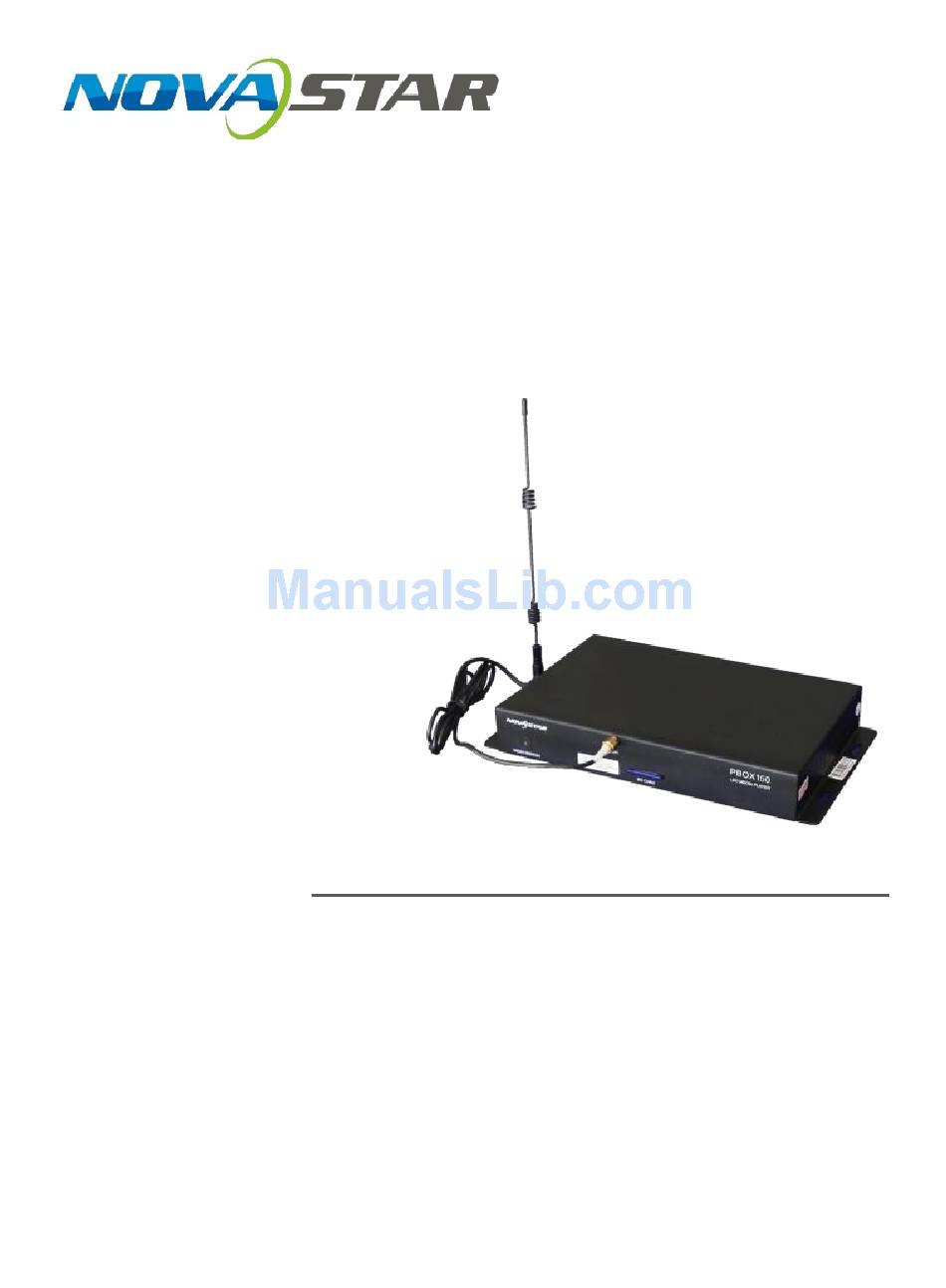

PBOX150
Quick Start Guide
Stable, Reliable and Powerful
Rev1.0.0
NS120100105
All intellectual property rights involved in this document belong to
Xi'an NovaStar Tech Co., Ltd. All rights are reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBOX150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NovaStar PBOX150

Summary of Contents for NovaStar PBOX150

  • Page 1 PBOX150 Quick Start Guide Stable, Reliable and Powerful Rev1.0.0 NS120100105 All intellectual property rights involved in this document belong to Xi’an NovaStar Tech Co., Ltd. All rights are reserved.
  • Page 2 PBOX150 Features With synchronous and asynchronous dual-mode and supports full zoom of video input in synchronous mode; Supports HDMI Loop; Supports WiFi function to enable wireless communication; WiFi function supports AP+Sta at the same time and you can build your LAN while connecting public network;...
  • Page 3 Supports SD card memory expansion; Supports remote cluster control and play over the Internet; Supports various media formats such as video, picture, text, weather, clock, countdown, Flash(Versions higher than V7.0 are not supported for the moment.), Word, Excel, Txt…; Supported chips: a full range of driving IC products of Macroblock, CHIPONE, Sumacro, Mingyang, IT, Bright Way, Hangzhou Silan etc.

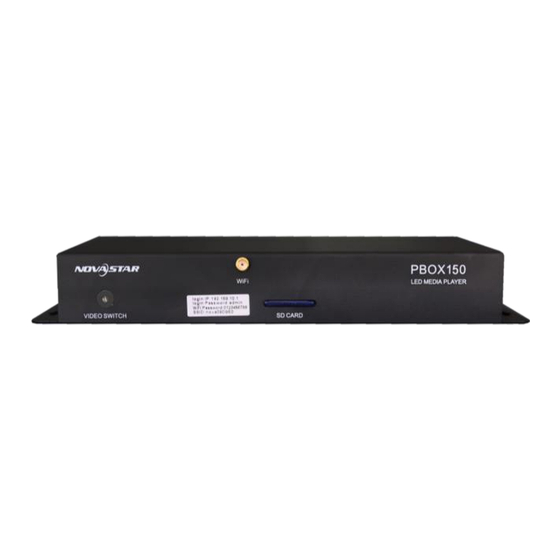

  • Page 4 The indicator light is on in HDMI mode SWITCH and off in asynchronous mode. WiFi Connecting antenna SD CARD Plugging SD card The factory default IP of PBOX150 is Default IP 192.168.0.220 100~240VAC. Power interface 50/60Hz PWR: power indicator Status PWR&RUN...
  • Page 5 LED OUT Gigabit Ethernet port, LED output Gigabit Ethernet port, LED backup BACKUP output Network Connection PBOX150 can be connected to play& control computer through three methods: network cable, LAN and WiFi. Method1 Network cable Fig. 0-1Network cable - 4-...
  • Page 6 Fig. 0-2 LAN Method3 WiFi Tip: The WiFi function of PBOX150 has DHCP service which is disabled and in route mode by default. Please do not access PBOX150 into local area network by network cables when DHCP is enabled. Because the DHCP...
  • Page 7 The default factory settings of control card are in router mode. Users could set it to bridging pattern through webpage. PBOX150 is integrated with WiFi function to enable wireless communications. Meanwhile, it supports AP+Sta function. It allows to build LAN while connecting public networks. So WiFi deployment has the following four modes.
  • Page 8 Mode I: PBOX150 does not connect external networks Tip: In this case, publishing and management terminal devices cannot connect external network. PBOX150 itself can build a new network through its connected WiFi. 1) Connect PBOX150 to user computers by network cables;...
  • Page 9 4) Use a mobile device to search the hot spot of WiFi module for connection: The SSID is nova****** (check information label) and the default password is 0123456789. Mode II: connect the WiFi card with external network by wireless network: 1) Set computer's IP address as static IP: 192.168.10.
  • Page 10 (check information label) and the default password is 0123456789. Mode III: WiFi card connects external network by network cables: Tip: Please disable DHCP service before setting wireless network parameters. Connect PBOX150 to external routers by network cables and then use - 9-...
  • Page 11 mobile devices to search WiFi hot spots: The SSID is nova****** (check information label) and the default password is 0123456789; Mode IV: Bridge mode: Tip: Please disable DHCP service before setting wireless network parameters. 1) Open the browser and input 192.168.10.1 in the address bar, to enter the setting interface of wireless routers.
  • Page 12 2) After configuration, select Wireless setting -> Scan hot spots and select the hot spot for connection. Then reset the computer IP to auto obtain. The topological graph of bridge connection mode is as shown in the figure. IP Smart search Tip: If the DHCP service is enabled, both the IP addresses of the laptop and the control card are 192.168.10.
  • Page 13 3) Click User -> Advanced login, enter the password "admin" and click for logging in; - 12-...
  • Page 14 PBOX150 supports synchronous and asynchronous modes of playing. In addition, these two modes could switch quickly from one to the other. The video source of PBOX150 is HDMI input in synchronous play mode. Program editing and sending need to work together with...
  • Page 15 Methods I: Switching by button. Press “SWITCH” on the front panel of PBOX150 and the indicator light is on showing the current play mode is switched to synchronous. Methods II: Switching by software. Run Nova LCT-Pluto. Click “Screen Configuration”...
  • Page 16 PlutoMnager). Screen Configuration 1) Click Screen Configuration on the LCT homepage; 2) Click Smart Setting on the left lower corner in “Scan Board” page; 3) Select Option 1 and click Next for starting Smart Setting; - 15-...
  • Page 17 4) Screen configuration can be done according to Smart setting wizard. Tip: Please visit the website of NovaStar (www.novastar.tech) and view the NovaLCT-Pluto User's Manual in the Download Center, for detailed introductions to the Smart wizard. 5) LED display configuration...
  • Page 18 1) Click Search Now on the main interface of PlutoManager to search all the terminals, specified IP terminals and part of terminals of the LAN. The searched terminals could be added to specified groups. Select BillBoard as edit mode. Click "Create PlayList" to enter the interface as shown below.
  • Page 19 segment consist of one or more program pages. Each of the pages has one or more windows. Windows can be classified into Common Window, Clock Window, Scroll Text Window, Countdown Timer Window, and Weather Window. Common Windows can be added with one or more different types of media.
  • Page 20 2) Select the playlist to be converted or hold down “Ctrl” key to select more playlists. Right click the mouse and then choose and click “Convert” to complete the conversion according to the instructions. 3) Click “Send” buttons of the playlists successfully converted.
  • Page 21 Xi'an NovaStar Tech Co., Ltd. http://www.novastar.tech Floor, Block D of Qinfeng Hall, Xi'an Software Park High-tech Industrial Development Zone of Xi'an, Shaanxi, China...
