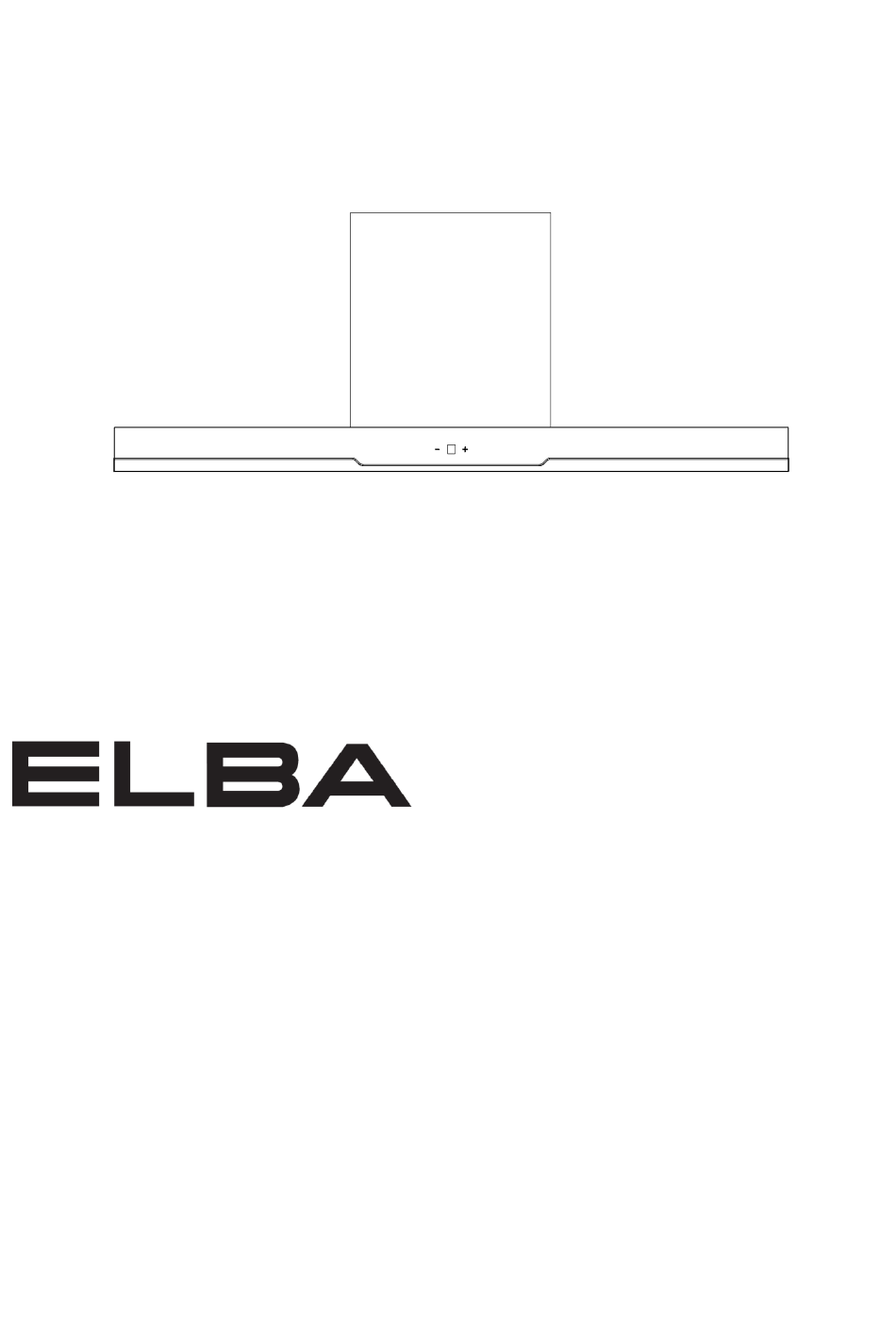

DESIGNER HOOD
MODEL: EH-J9031ST(SS)
EH-J9032ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-J9031ST(SS) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EH-J9031ST(SS)

Summary of Contents for Elba EH-J9031ST(SS)

  • Page 1 DESIGNER HOOD MODEL: EH-J9031ST(SS) EH-J9032ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2.
  • Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation:  Installation of cooker hood must be carried out by an authorized or qualified technician.  Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. ...
  • Page 4  Hang the cooker hood on the mounting bracket and make sure the cooker hood is in level.  Fix the exhaust ducting on the cooker hood. Install the oil cup on the cooker hood.  Install the exhaust cover to the height required. ...
  • Page 5  Drill 2 holes with diameter of Ø8mm. Insert the screw anchors into the holes. Fix the mounting bracket and tighten the screws.  Before connecting to the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate of the cooker hood. INSTALL THE CHARCOAL FILTER ...

  • Page 6: Product Descriptions

    PRODUCT DESCRIPTIONS 1 Heat Cleaning – Press to activate the heat cleaning function. Press again to deactivate the heat cleaning function. 2 Off / Low Fan Speed Control – Press to turn off the cooker hood or decrease the fan speed. 3 Digital Display –...

  • Page 7: Cleaning And Maintenance

    HEAT CLEANING FUNCTION 1 Press and hold the button for 3 seconds to activate the heat cleaning function. 2 The cooker hood will operate the heat cleaning function for 7 minutes. 3 The heat cleaning will start cleaning and running for 5 minutes, after that cooker hood will stop for the heating function and turn on the lower fan speed for final cool down.

  • Page 8: Troubleshooting

    TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far between Lower down the cooker hood the cooker hood and cooking installation height but within the safety Weak Suction appliance guideline Strong convection due to too Shut off some of the windows or much ventilation doors The power supply is not...

  • Page 9: Main Specification

    MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz LED Light : 8W x 1 Suction Power : 1,400m³/hr Motor Power : 270W Product Dimension : 900mm (W) x 548-1,000mm (H) x 505mm (D) PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.

This manual is also suitable for:

Eh-j9032st(bk)
