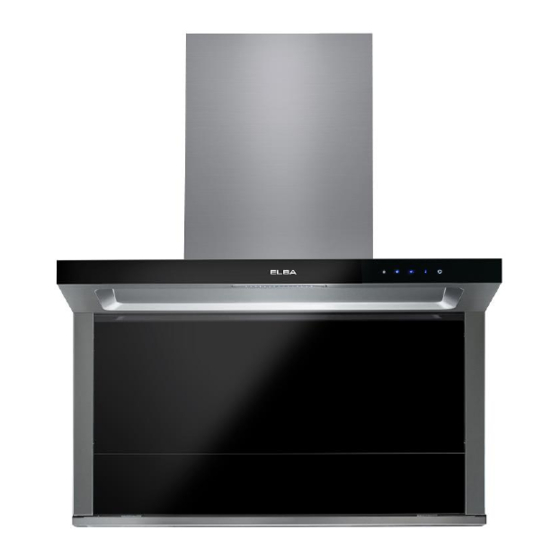

Elba EH-G9325ST Owner's Manual
  1. Manuals
  2. Brands
  3. Elba Manuals
  4. Ventilation Hood
  5. EH-G9325ST
  6. Owner's manual

Elba EH-G9325ST Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

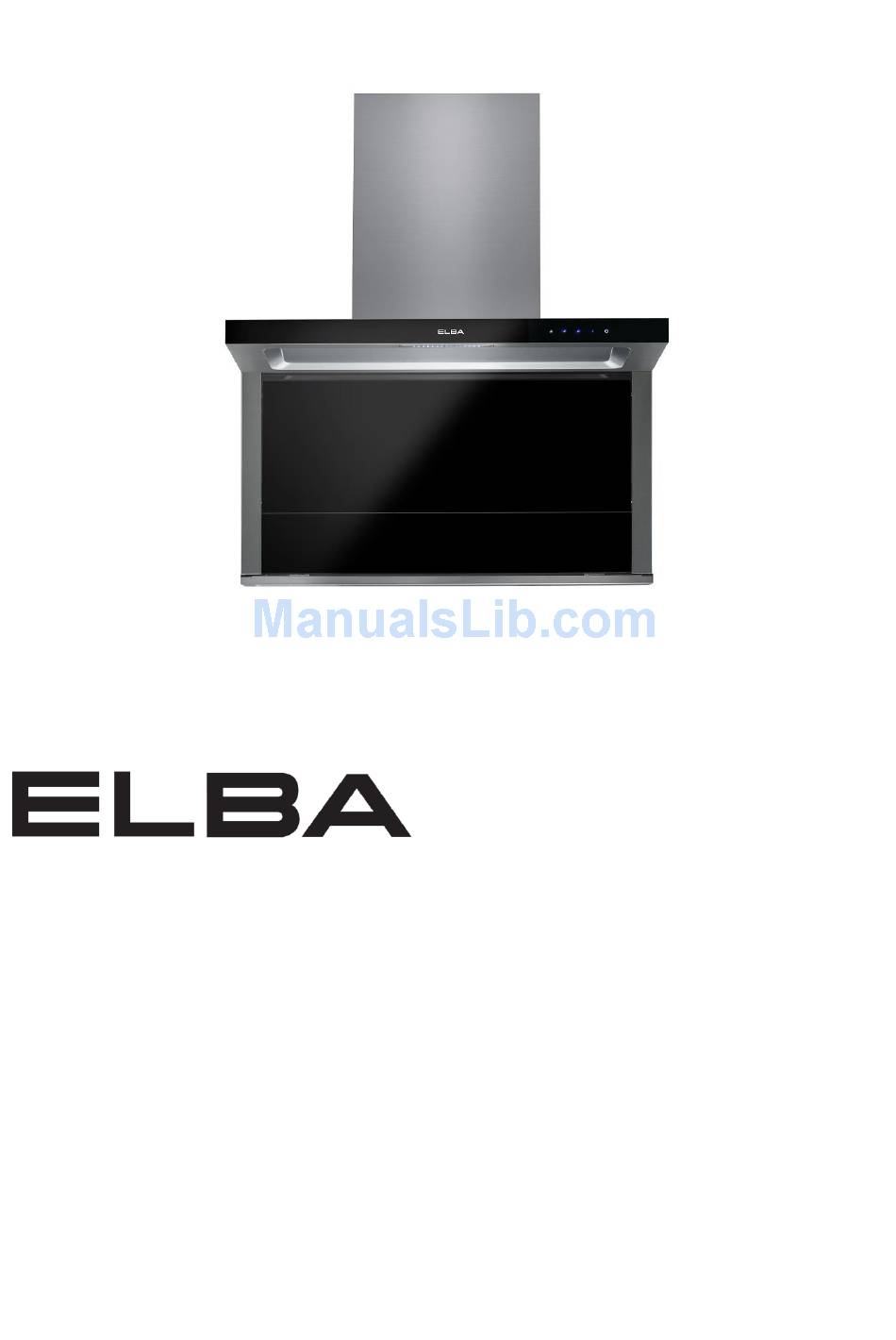

DESIGNER HOOD
MODEL: EH-G9325ST(BK)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-G9325ST and is the answer not in the manual?

Questions and answers

Related Manuals for Elba EH-G9325ST

Summary of Contents for Elba EH-G9325ST

  • Page 1 DESIGNER HOOD MODEL: EH-G9325ST(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2.
  • Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation:  Installation of cooker hood must be carried out by an authorized or qualified technician.  Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. ...
  • Page 4  Drill 4 holes with diameter of Ø8mm and 60mm deep. Insert the screw anchors into the holes. Fix the mounting bracket and tighten the screws.  Remove the horizontal oil cup. Hang the cooker hood on the mounting bracket and make sure the cooker hood is in level.

  • Page 5: Product Descriptions

    PRODUCT DESCRIPTIONS 1 LED Light Illumination – To switch on/off the LED light. 2 Ionizer – To active the ionizer function. When the cooker hood is on standby mode, press this button to active the ionizer function. Press again to deactivate.

  • Page 6: Cleaning And Maintenance

    OPERATING INSTRUCTIONS 1 Press the button and press the button to operate the cooker hood in high fan speed. Press the button to operate the cooker hood at turbo fan speed (This function will revert to high fan speed after three minutes). Press button again to operate the cooker hood at low fan speed.
  • Page 7  Remove the decorative cover and loosen the screws on the base.  Loosen the screws on the charcoal filter and then take it out.  Loosen the screws on the air inlet ring and then take out the filter. ...

  • Page 8: Troubleshooting

    TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far between Lower down the cooker hood the cooker hood and cooking installation height but within the safety Weak Suction appliance guideline Strong convection due to too Shut off some of the windows or much ventilation doors The power supply is not...

  • Page 9: Main Specification

    MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz LED Light : 4W x 1 Suction Power : 1,400m³/hr Motor Power : 220W Product Dimension : 896mm (W) x 1,025mm (H) x 350mm (D) PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.

This manual is also suitable for:

Eh-g9325stbk
