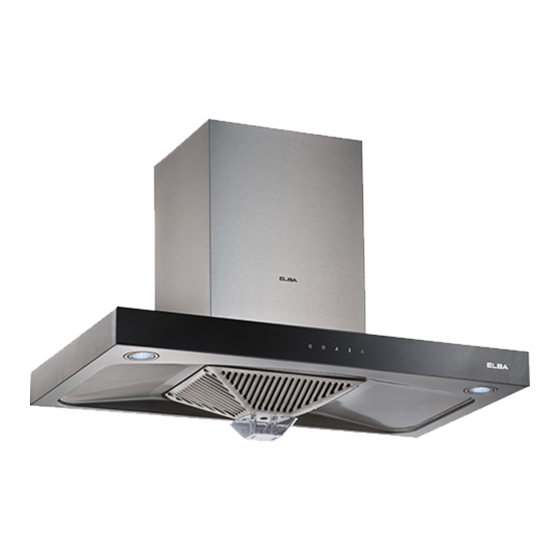

Elba EH-H9027ST Owner's Manual

Designer hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

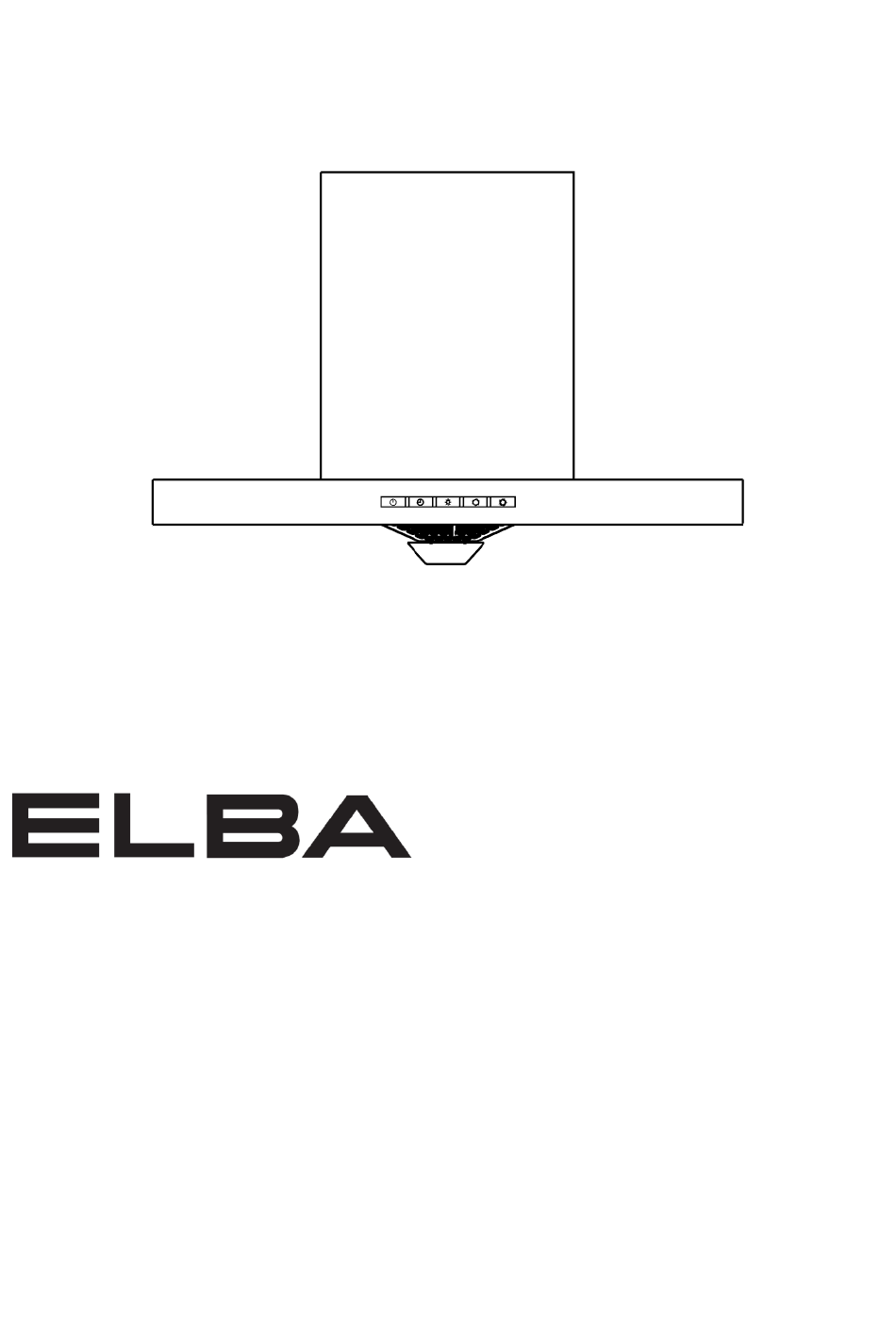

DESIGNER HOOD
MODEL: EH-H9027ST(SS)
Owner's Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-H9027ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EH-H9027ST

Summary of Contents for Elba EH-H9027ST

  • Page 1 DESIGNER HOOD MODEL: EH-H9027ST(SS) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. SAFETY PRECAUTIONS 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. 2.
  • Page 3 ASSEMBLY INSTRUCTIONS Please check the following before installation:  Installation of cooker hood must be carried out by an authorized or qualified technician.  Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. ...
  • Page 4  Before installing, determine the height between the bottom of the cooker hood to the top of the hob. Mark on the wall to suit the bracket locations.  Drill 4 holes with diameter of Ø8mm and 60mm deep. Insert the screw anchors into the holes.

  • Page 5: Product Descriptions

    PRODUCT DESCRIPTIONS 1 On/Off Button – To switch the cooker hood to standby mode and turn off the cooker hood. 2 Fan Delay Off Function – To schedule three minutes delay to turn off the cooker hood. 3 LED Light Illumination – To switch on/off the LED light. 4 Normal Fan Speed –...

  • Page 6: Cleaning And Maintenance

    CLEANING AND MAINTENANCE  The cooker hood must always be disconnected from the electricity supply before carrying out the maintenance.  Clean the cooker hood with damp cloth, hot water and mild detergent. Do not use chemical, steel, wooden or abrasive cleaners to clean the cooker hood. ...
  • Page 7  Loosen the screws on the air inlet ring and then take out the filter.  Turn the locking nut in clockwise direction to take out the impeller for cleaning. REPLACING THE LIGHT BULB  Disconnect the power supply, slightly insert the screwdriver at the edge of the LED light and pry downward to take out the LED light (2W).

  • Page 8: Troubleshooting

    TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far between Lower down the cooker hood the cooker hood and cooking installation height but within the safety Weak Suction appliance guideline Strong convection due to too Shut off some of the windows or much ventilation doors The power supply is not...

  • Page 9: Main Specification

    MAIN SPECIFICATION Rated Voltage : 220-240V/50Hz LED Light : 2W x 2 Suction Power : 1,400m³/hr Motor Power : 220W Product Dimension : 900mm (W) x 545mm (H) x 505mm (D) PRODUCT SIZE NOTICE This product must not be disposed together with domestic waste. It has to be disposed at an authorized place for recycling of electrical and electronic appliances.
