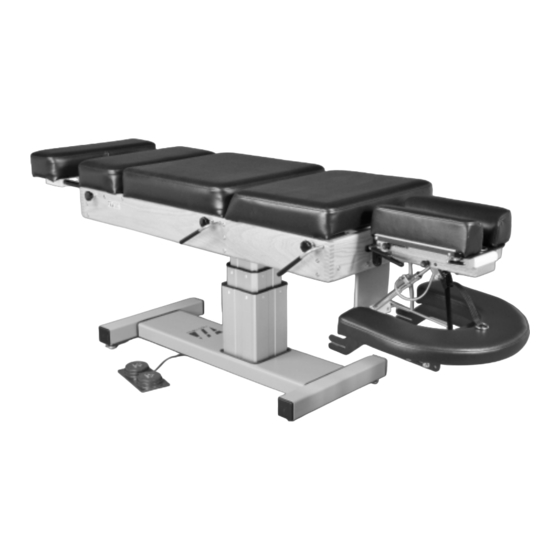

Thuli Tables 350 Elevation Owner's Manual
  1. Manuals
  2. Brands
  3. Thuli Tables Manuals
  4. Medical Equipment
  5. 350 Elevation
  6. Owner's manual

Thuli Tables 350 Elevation Owner's Manual

Elevation table
Hide thumbs Also See for 350 Elevation:

Advertisement

Quick Links

Download this manual
THULI TABLES

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 2
Identification of Parts / Motor . . . . . . . . 3 - 4
Table Assembly . . . . . . . . . . . . . . . . . . . . . . 5
Table Operation . . . . . . . . . . . . . . . . . . 11 - 12
350 Owner's Manual
Shown with Metal Base
office@ thulita b les.co m
youtube.com/thulit ab les
facebook.com/thu litab les
Accessories . . . . . . . . . . . . . . . . . . . . . . . 13
Care & Maintenance . . . . . . . . . . . . . . 14 -15
Motor Troubleshooting . . . . . . . . . . . . . . . 16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Overview of Products . . . . . . . . . . . . . Back
800-458-4854
www.thulitables.com
Videos & Manuals
Crescent Arm Rest
(optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 350 Elevation and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thuli Tables 350 Elevation

Summary of Contents for Thuli Tables 350 Elevation

  • Page 1: Table Of Contents

    800-458-4854 www.thulitables.com office@ thulita b les.co m THULI TABLES youtube.com/thulit ab les facebook.com/thu litab les 350 Owner’s Manual Videos & Manuals Crescent Arm Rest (optional) Shown with Metal Base Table of Contents Introduction ......2 Accessories .

  • Page 2: Introduction

    Introduction Thank you for your purchase of a 350 Elevation table. We are pleased to provide you with an aesthically beautiful chiropractic adjusting table that is versatile and precisely engineered. It has been thoroughly inspected and tested right down to the smallest detail before leaving our shop.

  • Page 3: Identification Of Parts / Motor

    Identification of Table Parts / Motor Information Ankle Rest Extension Fixed Section Pelvic Section Thoracic Section Ankle Rest Extension Locking Knob Pelvic Cocking Lever & Tension Control Knob Thoracic Cocking Lever & Tension Control Knob Crescent Arm Rest Piston (optional) MOTOR INFORMATION To extend the life of the motor, instruct the patient to get on and off at the center of the table.
  • Page 4 Identification of Headpiece Parts Tension Control Knob (other side) Paper Tear-Off Bar Paper Hold-Down Wire Straight Drop / Forward Pivot Block Motion Knob Cocking Lever Slide Block T-Bar Paper Hanger Remote Control Lever Piston Head Piston Pin Prone Arm Rest Buckle Lowering Lever Locking Link Headpiece Mounting...

  • Page 5: Headpiece Attachment & Operation

    Table Assembly Your table will arrive in two boxes and is easy to assemble. The headpiece and ankle rest extension are packaged separately from the table. We have included two different wrenches to assist you in the assembly process. ANKLE REST ATTACHMENT 1.
  • Page 6 Table Assembly HEADPIECE ATTACHMENT (cont) PISTON ATTACHMENT 1. To attach the headpiece to the table, slide it between the 1. Swing the flexion/extension piston down toward the headpiece mounting bracket. off-centered slot in the headpiece slide block. 2. Visually line up the hole in the slide block with the top holes 2.
  • Page 7 Table Operation HEADPIECE PAPER 1. Install a 8.5” roll of headpiece paper. 4. To advance the headpiece paper, raise 5. To tear off used headpiece paper, use an 2. Raise the paper hold-down wire and the tear-off bar, hold your finger on upward motion while holding down the tear-off bar.
  • Page 8 Headpiece Operation LATERAL FLEXION (optional) LATERAL FLEXION LEVER FLEXION / EXTENSION To flex the headpiece laterally, turn the The position of the lateral flexion lever Flex and extend the headpiece by grasping the front end of the headpiece lateral flexion lever in a counterclockwise can be changed.
  • Page 9 Headpiece Operation VERTICAL ELEVATION 3. With practice, steps 1 and 2 can be 1. Raise the back end of the headpiece 2. Raise the front end of the headpiece combined to vertically raise the by lifting the grey grip of the cocking by operating the flexion/extension lever (without operating the lever).
  • Page 10 Headpiece Operation HEADPIECE CUSHIONS: ADJUSTABLE WIDTH The headpiece cushions are easily adjustable in width at the front end for individualized patient comfort. Firmly pull up on the front end of each headpiece cushion and move in (one or two notches) or out (one or two notches) to desired position. Secure cushions by engaging locating pins into notches provided.
  • Page 11 Table Operation Pelvic Drop Thoracic Drop PELVIC DROP THORACIC DROP Position the patient’s anterior superior iliac spine (ASIS) at Position the patient sufficiently forward with their arms the juncture of the pelvic and thoracic sections. outstretched and wrists resting on the prone arm rest. This will insure that the skin on the back of the patient’s arms will not be pinched between the thoracic section and the table frame when using the drop.
  • Page 12 Table Operation THORACIC INCLINE CERVICAL PALPATION & ADJUSTING ANTERIOR THORACIC ADJUSTING Uses of the thoracic incline include anterior thoracic adjusting, The thoracic section can be raised to a 20 degree angle. Lift the cervical palpation and diversified cervical adjusting. This thoracic section, swing the slant bar down and allow the rubber feature allows the practitioner to remain in a comfortable, tips to rest on top of the front legs (the right arm of the slant bar...

  • Page 13: Accessories

    Accessories COMFORT PILLOW The Velcro on the underside of the pillow Comfort secures it to the base, Pillow allowing for width Pillow adjustability. Base The base of the Comfort Pillow inserts into place between the headpiece cushions. The opening is adjustable. Rotate the Comfort Pillow 180 The Comfort Pillow offers degrees to provide cervical...

  • Page 14: Care & Maintenance

    Care & Maintenance DROP MECHANISMS: CLEANING & LUBRICATION Periodic lubrication of the drop mechanisms will insure smooth, crisp drops. Use 3-IN-ONE oil every month or 500 adjustments. If the drops have not been lubricated on a regular basis, first apply WD-40 to clean the plungers from dust & debris. See below. SYRINGE USE (FOR PELVIC DROP) To access the pelvic plunger, use a small syringe (provided).
  • Page 15 3. Water Rinse: It is important to follow all cleaning with a thorough, clear water rinse to minimize premature deterioration of the vinyl from extended exposure to chemicals. REPLACEMENT VINYL: In the event of wear or damage, pre-sewn replacement vinyl is available from Thuli Tables.

  • Page 16: Motor Troubleshooting

    Motor Troubleshooting The motor is covered by a one year warranty. Please note that the motor, like all electrical products, will eventually wear out. The life of the motor is determined by various factors including number of uses, weight and positioning of patients, humidity and environmental conditions.

  • Page 17: Warranty

    Warranty Our tables are designed and built to high standards. We are proud to offer a limited lifetime warranty against manufacturing defects, with the exception of the headpiece piston and the motor (on elevation tables), which are covered by a one year warranty. This warranty is valid to the original owner if the table has not been altered in any way.
  • Page 18 Junior Portable Sport Portable 300 Stationary Tour Portable 500 Stationary Elevation Tables Lumbo-Pelvic Drop 800.458.4854 608.935.9300 www.thulitables.com Headpiece Extremity Drop office@thulitables.com Speeder Board youtube.com/thulitables facebook.com/thulitables Portable Drops...
