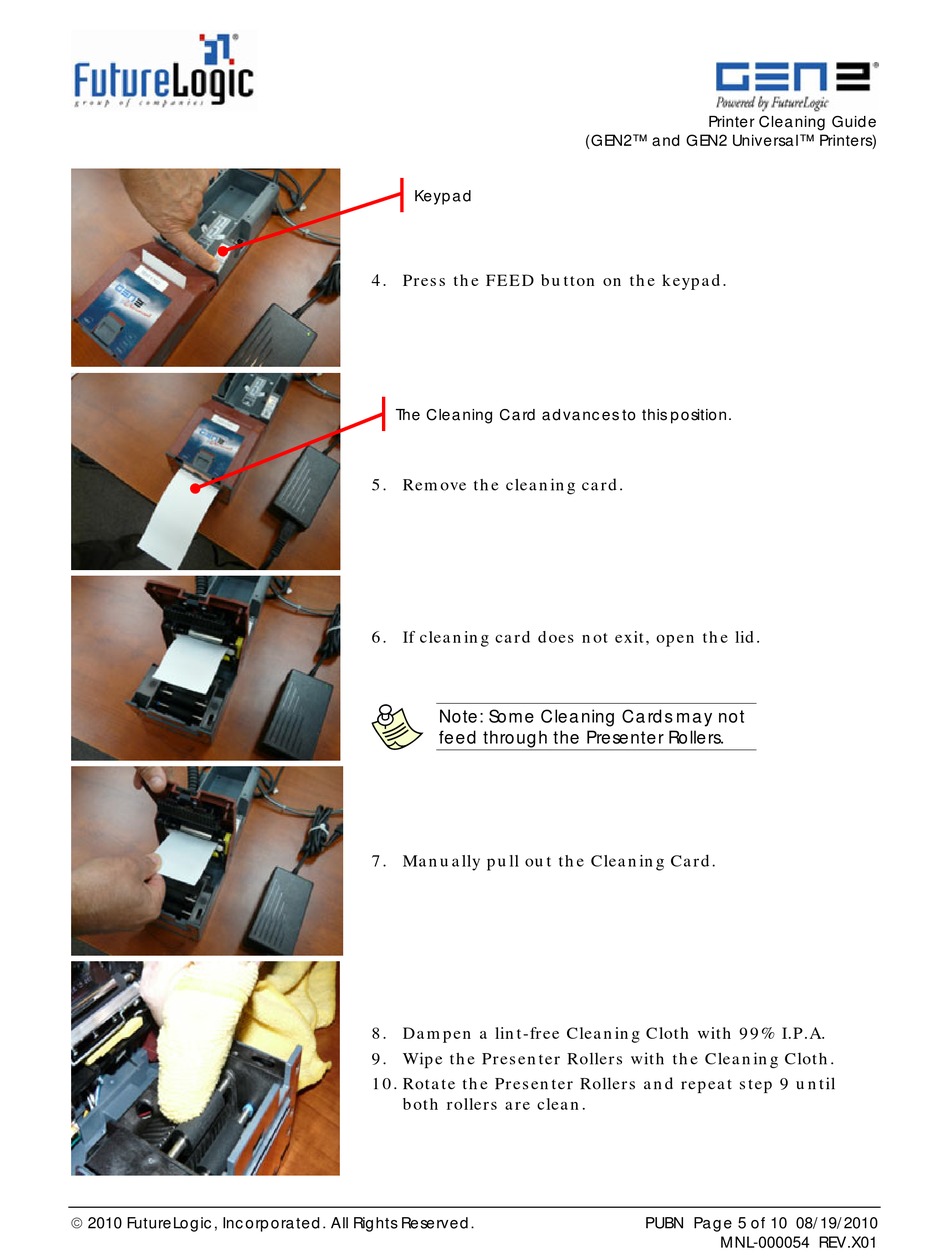

FutureLogic GEN2 Manual page 8

 2010 FutureLogic, Incorporated. All Rights Reserved.
Keypad
4. Press the FEED button on the keypad.
The Cleaning Card advances to this position.
5. Remove the cleaning card.
6. If cleaning card does not exit, open the lid.
Note: Some Cleaning Cards may not
feed through the Presenter Rollers.
7. Manually pull out the Cleaning Card.
8. Dampen a lint-free Cleaning Cloth with 99% I.P.A.
9. Wipe the Presenter Rollers with the Cleaning Cloth.
10. Rotate the Presenter Rollers and repeat step 9 until
both rollers are clean.
Printer Cleaning Guide
(GEN2™ and GEN2 Universal™ Printers)
PUBN Page 5 of 10 08/19/2010
MNL-000054 REV.X01
