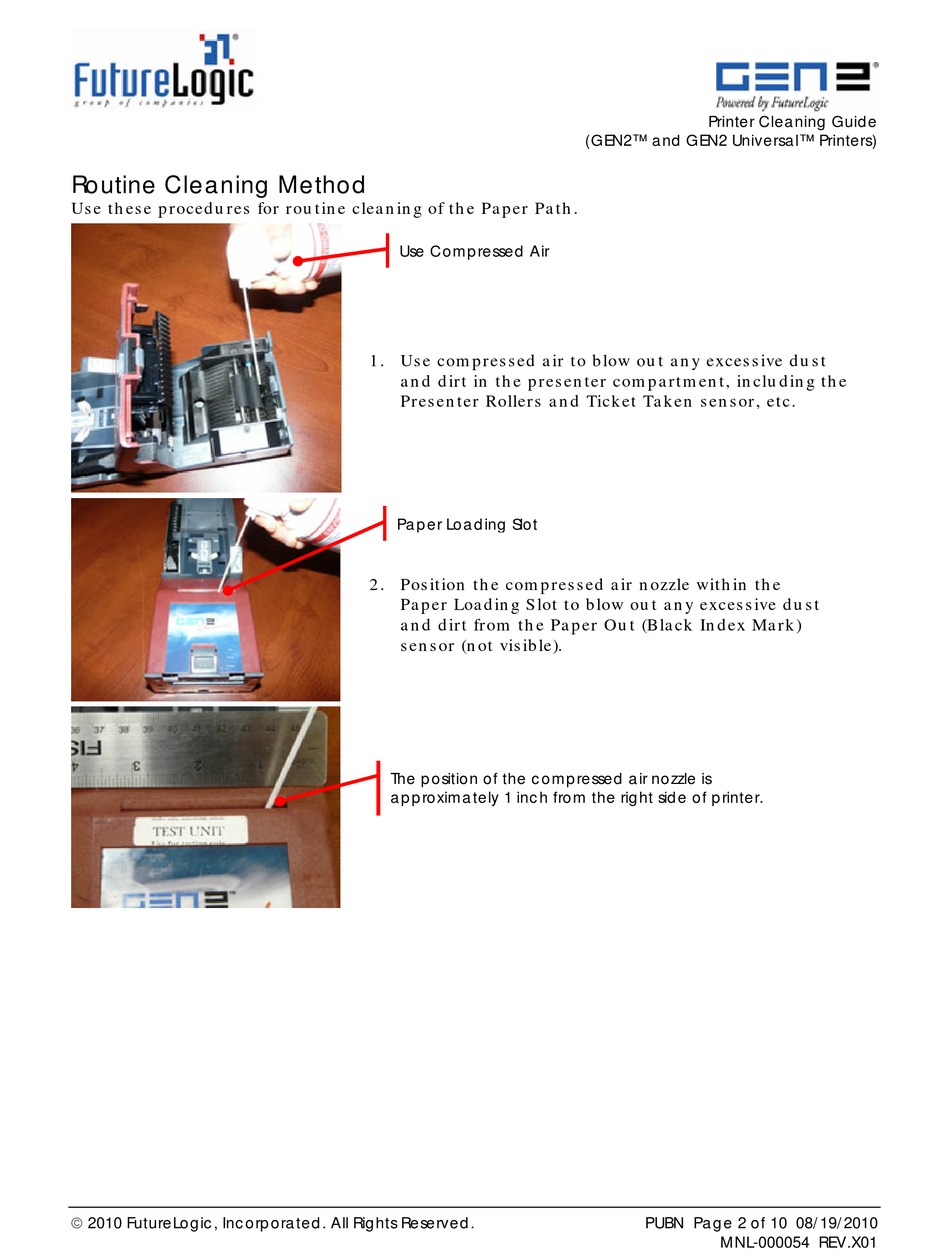

Routine Cleaning Method - FutureLogic GEN2 Manual

Routine Cleaning Method

Use these procedures for routine cleaning of the Paper Path.
 2010 FutureLogic, Incorporated. All Rights Reserved.
Use Compressed Air
1. Use compressed air to blow out any excessive dust
and dirt in the presenter compartment, including the
Presenter Rollers and Ticket Taken sensor, etc.
Paper Loading Slot
2. Position the compressed air nozzle within the
Paper Loading Slot to blow out any excessive dust
and dirt from the Paper Out (Black Index Mark)
sensor (not visible).
The position of the compressed air nozzle is
approximately 1 inch from the right side of printer.
Printer Cleaning Guide
(GEN2™ and GEN2 Universal™ Printers)
PUBN Page 2 of 10 08/19/2010
MNL-000054 REV.X01
