Tube Setup and Operating Instructions cont.

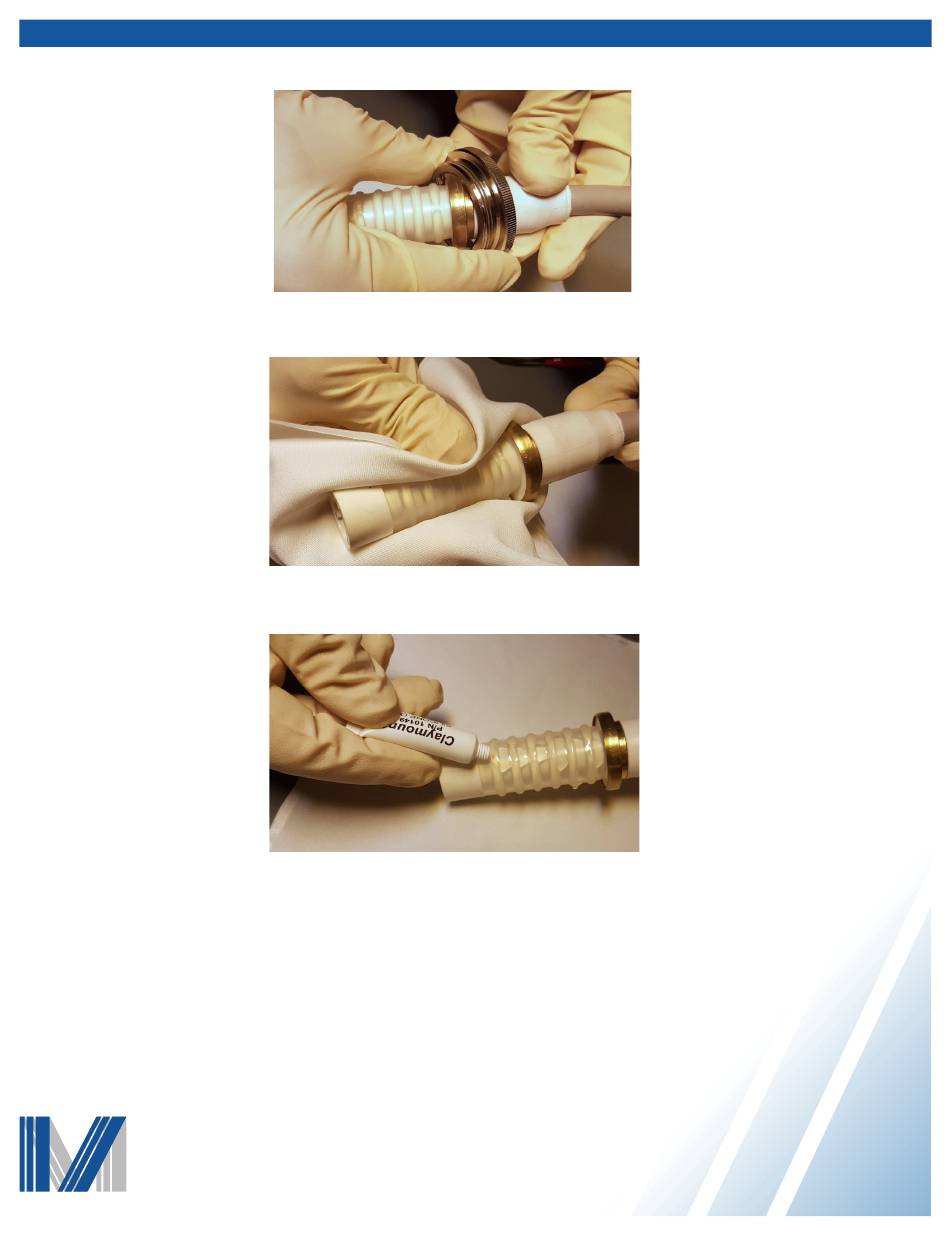

4. Install the cable collar onto the tube cable if it is not installed already.
Figure 9 - Cable collar
5. Clean the cable connector with a lint free wipe.
Figure 10 - Cleaning the cable connector
6. Apply a small amount of silicone oil and spread it around the connector.
Figure 11 - Applying silicone oil
