Handling

Care should be taken when handling the tube. Do not drop or strike the tube on any surface. Care must be taken to not damage
the beryllium window or high voltage cable. Support the weight of the tube when lifting or carrying.
Caution: Do not lift or carry the tube by the high voltage cable.

Mechanical

Cooling
The MoxHPC utilizes a fan and heat sink for a combination of forced-air convection and conduction cooling. The tube should be
operated in an environment that allows convection and conduction to secondary parts. Place the tube in shielded enclosure with
adequate air flow, >50 cfm (1400 lpm) of ambient air at 50°C or cooler.
Mounting
The MoxHPC may be mounted by the two ANSI ¼-20 UNC threaded holes on the tube end of the heat sinks. Alternately, M5 or
#10 bolts can be used in the thru-holes to capture the assembly.
Cone Beam Configuration
MOXTEK
®

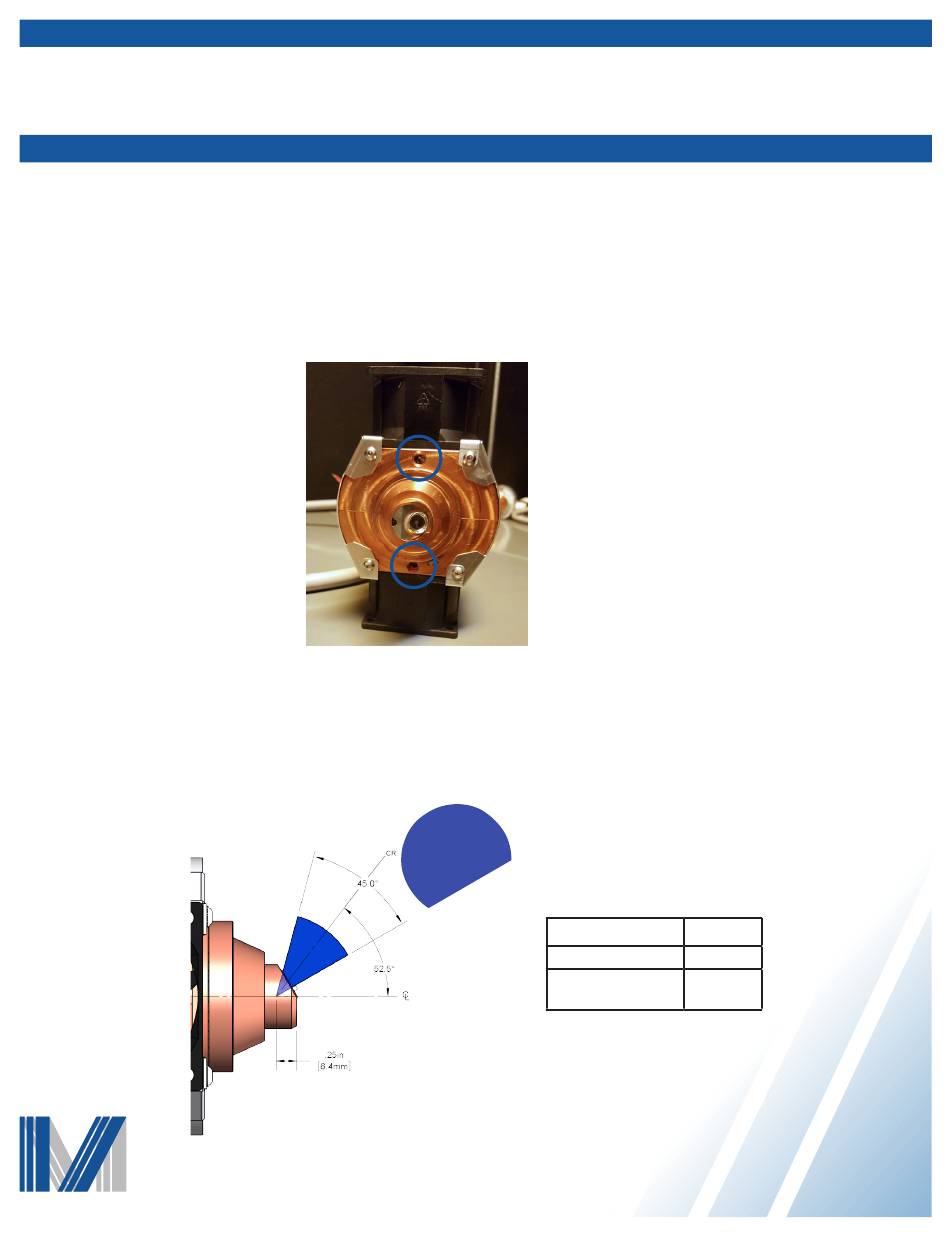

Figure 4 - MoxHPC threaded hole mounts
Figure 5 - Cone Beam Configuration
Description Angle
Cone Angle 45°
Center Line to
52.5°
Central Ray Angle
TUB-MAN-1020 Rev C
Subject to technical change without notice
3
