X-ray Source Characteristics

Mechanical Specifications
Tube Type:
Operating Temp:
Storage Temp:
Cooling:
Weight:
Available Targets:
Fan Operating Voltage:
Connector Type:
*Fin and fan configurations can be optimized for the system and application

Tube Current and Power Operational Range

Initial Inspection

When a Mox HPC tube is received, it should be unpacked and inspected as soon as possible. Caution: Do not lift or carry the
tube by the high voltage cable. Inspect the tube assembly for any damage. The Beryllium should not have any cracks or holes.
The copper heat sinks should be tightly joined (See Figure 3). The fans should be free of chips or cracks and have the wires
properly attached. Inspect the high voltage cable for proper tight and solid strain relief at the base of the tube. In the unlikely
event that a tube has been damaged during shipping, note the damage and contact MOXTEK immediately. The serial number is
MOXTEK
®
Metal-ceramic
+10° C to +50° C*
-20° C to +60° C
Filtered Air (three fin options*)
2.5kg* (w/o cable)
Tungsten, Molybdenum
12V or 24V*
CA-11 typical (75kV max)
MOX-HPC 150 Opera�on
200
175
150
125
100
75
50
25
0
0 10 20
Maximum Power Long Life Power

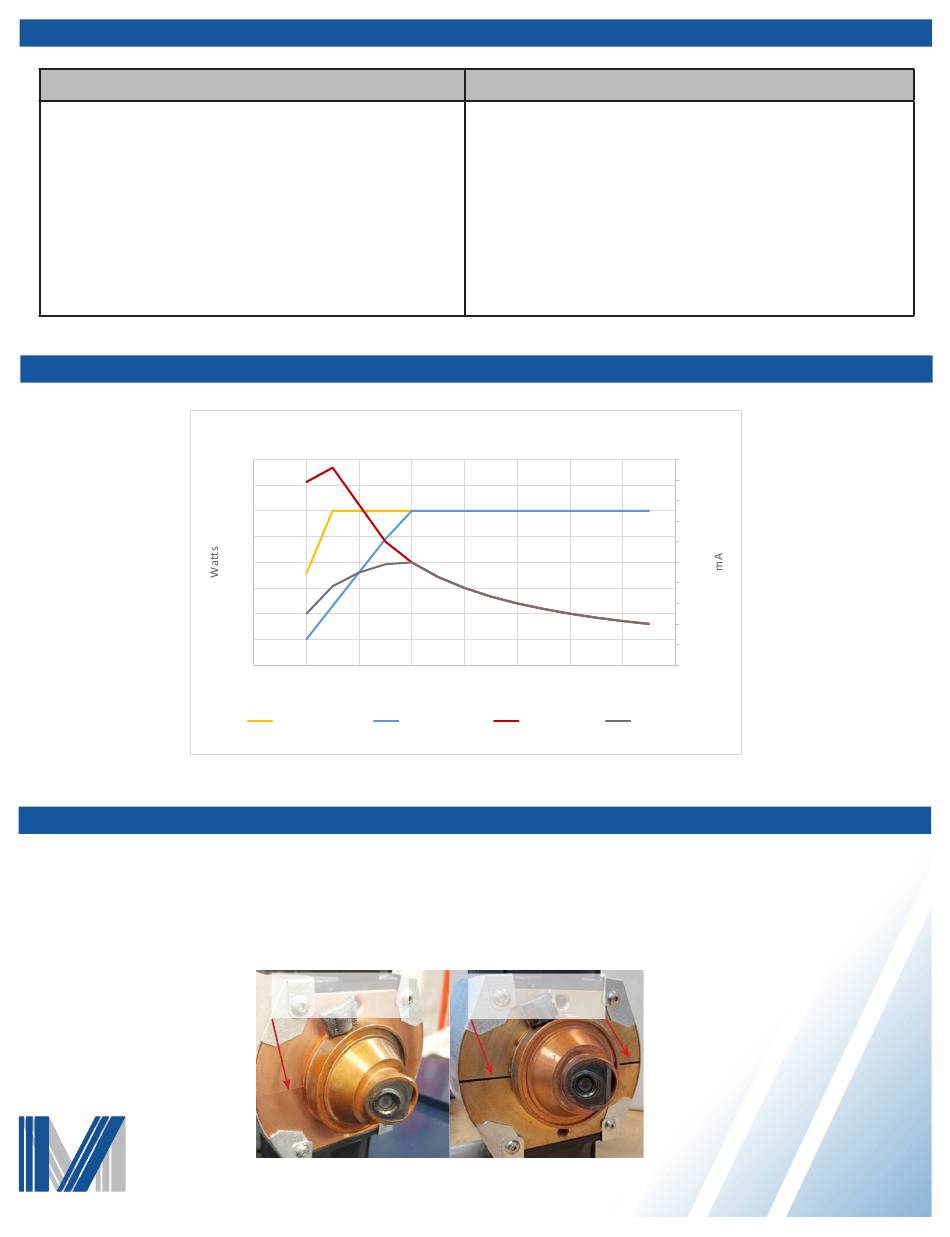

Figure 2 - Voltage vs. Current and Power
Properly joined,
no gap
Figure 3 - Heat sinks joint inspection
X-ray Tube Characteristics
HV Polarity:
High Voltage:
Max Beam Current:
Maximum Power:
Window:
30 40 50 60
Kilovolts
Maximum mA
Damaged,
not properly joined
Grounded anode
10kV to 60kV
5mA (long life performance)
150 Watts
Beryllium
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
70 80
Long Life mA
TUB-MAN-1020 Rev C
Subject to technical change without notice
2
