Tube Setup and Operating Instructions

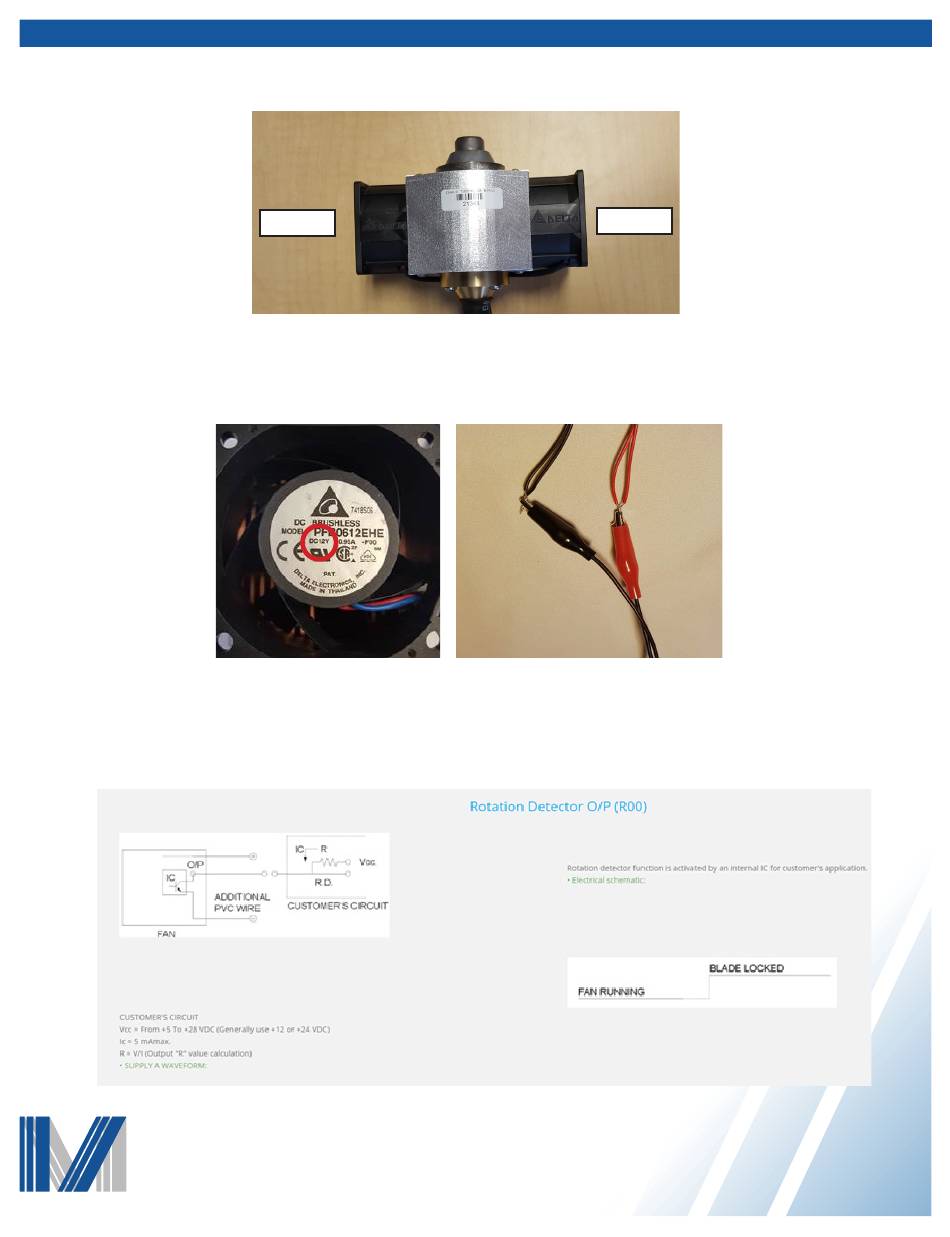

1. Ensure that the fans are unobstructed for 3 inches. Keep any loose objects away from the inlet and outlet fans. Use caution with
tools and fingers in proximity to the fans to prevent damage to the fans or injuries to personnel.
3 inches
3 inches
Figure 6 - MoxHPC fans
2. Confirm that the fan voltage matches the power supply (See Figure 7 for voltage call-out location). Connect the fans to the
power supply by connecting the red lead to the positve (+) and black lead to the negative (-) terminals on the power supply. The
power supply should provide the correct power (watts) for two fans. Caution: Reversing these leads will damage the fans.
Red and black leads
Fan with voltage call-out
Figure 7
3. The blue leads are for tachometer readings. It is recommended that the fans be interlocked to the high voltage power supply to
prevent accidental operation of the tube when the fans are not operating. See figure 8 below for the circuit needed for the use of
tachometer.
Figure 8 - Circuit needed for tachometer
