• Monoblock X-ray Source Characteristics
• Initial Inspection and Handling
• Tube Setup
• Operating Conditions
• Operating Precautions and Warnings
• Operating Monoblock with a Moxtek FTC-200 Controller
• Operating Monoblock without a Moxtek FTC-200 Controller
50kV MAGNUM
X-ray Source
®
2
4
4
6
6
6
6
TUB-MAN-02050, Rev D
Subject to technical change without notice
1
Advertisement
Table of Contents
Related Manuals for MOXTEK MAGNUM X-ray
Summary of Contents for MOXTEK MAGNUM X-ray
- Page 1 X-ray 50kV MAGNUM X-ray Source ® Sources Contents • Monoblock X-ray Source Characteristics • Initial Inspection and Handling • Tube Setup • Operating Conditions • Operating Precautions and Warnings • Operating Monoblock with a Moxtek FTC-200 Controller • Operating Monoblock without a Moxtek FTC-200 Controller TUB-MAN-02050, Rev D Subject to technical change without notice...
-
Page 2: Mechanical Specifications
MAGNUM X-ray Tube Characteristics Mechanical Specifications X-ray Tube Characteristics Tube Type: HV Polarity: Grounded anode Metal-ceramic Cathode Type: High Voltage: -4 to -50 kV Tungsten filament Operating Temperature: Beam Current: 0 to 0.20 mA -10° to +50°C (for more 4 watts Maximum Power: details see Figure 2, page 3) Typical ~ 300 µm Storage Temperature: -40° to +85°C Focal Spot Size: Beryllium, 0.25 mm thick Windows:... - Page 3 Drawing 1 Monoblock Source Dimensions TUB-MAN-02050, Rev D Subject to technical change without notice...
-
Page 4: Initial Inspection

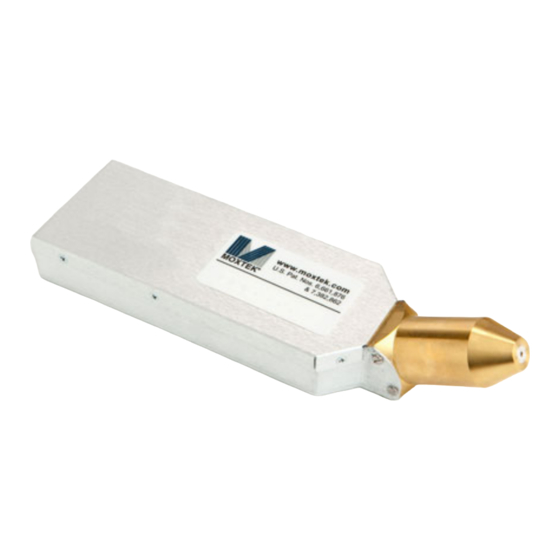

Initial Inspection: the bottom side (no stickers) of the metal case. These holes When a Monoblock X-Ray Source is received, it should may be used for mounting. be unpacked and inspected as soon as possible. A standard (Cooling) Monoblock X-Ray Source consists of a high voltage power supply and an x-ray tube enclosed in a brass shield (Figure The Monoblock X-Ray Source does not require forced 1). Inspect the high voltage power supply and the tube convection or liquid cooling. The tube should be operated shield assembly for any damage that may have occurred in an environment that allows free air convection or during shipping. If a tube has been damaged, please conduction to secondary parts. Please refer to page 2 contact Moxtek immediately. The serial number is located of this manual for operating and storage temperature on the sticker on the high voltage power supply. specifications. The specified temperature is measured at the surface of the aluminum can containing the high voltage power supply unit. The maximum recommended operating anode shield temperature is 100 degrees Celsius (see Figure 2). High Voltage Power Supply Max temp= 100°C Shield Be window Connector Figure 1 Monoblock X-ray Source Figure 2 Monoblock’s shield details... - Page 5 Input power +6 to +10 V Input power Brown monitor the x-ray tube. Table 1 shows the pin-out for the Input power +6 to +10 V Input power connector. Ground Ground Ground Orange An optional 10 lead ribbon cable is available from HV control +0.32 V to +4.0 V -10 to 50 kV Blue Moxtek (Figure 3). This ribbon cable has a 10 pin IDC HV enable 0.0 V or +5 VTTL 0 Disabled, +5 Grey connector on one side that connects to the high voltage input Enabled power supply and a DB9 connector on the other end that Current 0.0 V or +5 VTTL -4 kV to -50 kV Black connects to the Moxtek FTC-200 controller (Table 3). Monitor output Ground Ground...
-
Page 6: Operating Conditions
Operating Conditions: Operating the Monoblock X-Ray Source without a Moxtek FTC-200 controller: Monoblock’s anodes are grounded to a metal shield (Figure 1). The high voltage power supply uses DC voltages and When operating the 50kV Monoblock X-Ray Source, adhere to signals to operate the tube. To operate the tube without the maximum setting below: using a Moxtek FTC-200 controller, refer to Table 1 and • 50 kV, 0.20 mA max, power limited to 4 Watts Table 2 for the 10 pin high voltage power supply connector Failure to adhere to these limits may cause damage the x-ray pinouts. tube and/or high voltage power supply. Failure to adhere to this parameter will forfeit the tube warranty. Timing Diagram: When operating Monoblock X-Ray Source, wait 2 seconds If the monoblock source is controlled by a device other...
