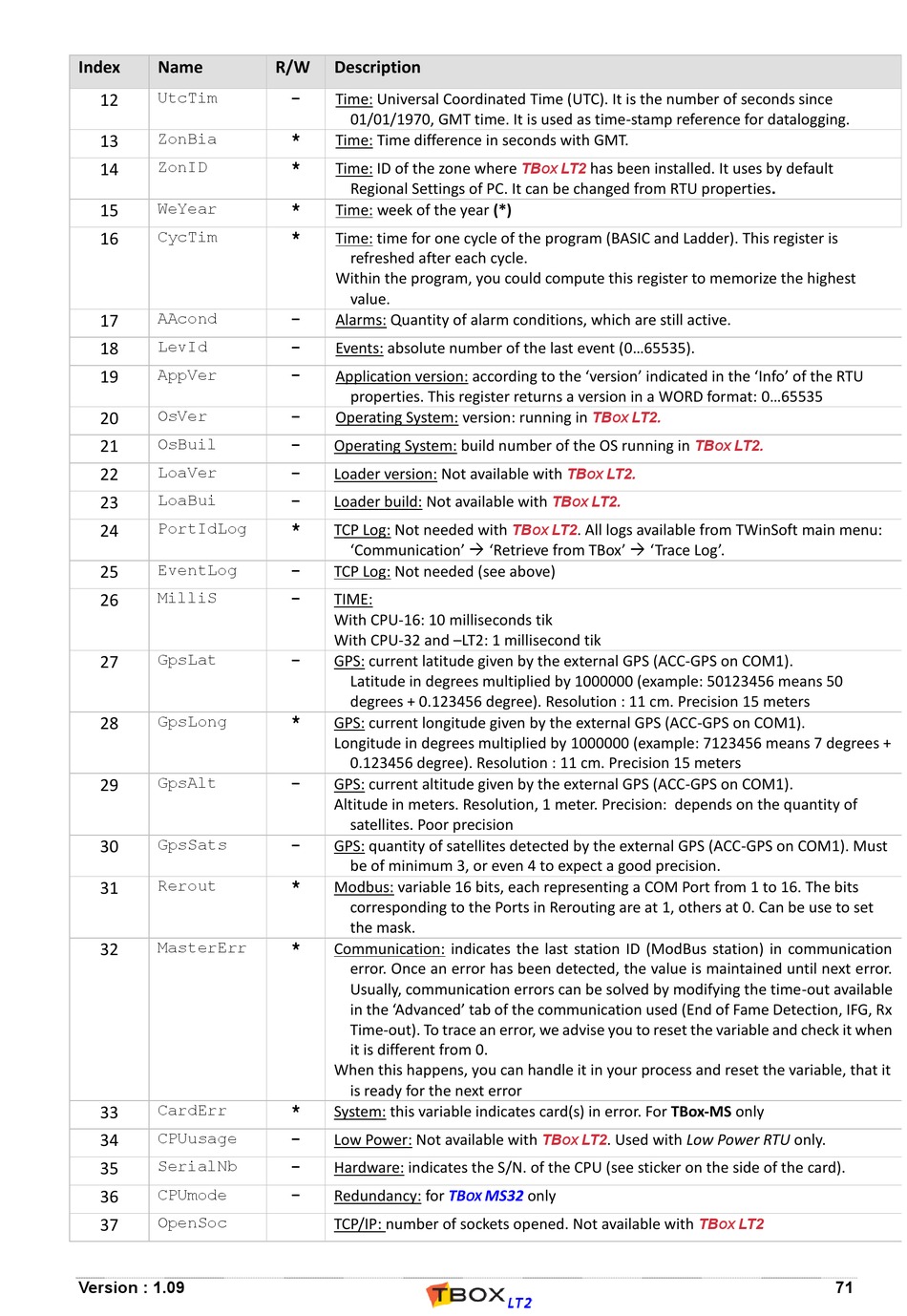

semaphore TBOX LT2-530 Series User Manual page 71

Index Name
UtcTim
12
ZonBia
13
ZonID
14
WeYear
15
CycTim
16
AAcond
17
LevId
18
AppVer
19
OsVer
20
OsBuil
21
LoaVer
22
LoaBui
23
PortIdLog
24
EventLog
25
MilliS
26
GpsLat
27
GpsLong
28
GpsAlt
29
GpsSats
30
Rerout
31
MasterErr
32
CardErr
33
CPUusage
34
SerialNb
35
CPUmode
36
OpenSoc
37
Version : 1.09
R/W Description
-
Time: Universal Coordinated Time (UTC). It is the number of seconds since
01/01/1970, GMT time. It is used as time-stamp reference for datalogging.
*
Time: Time difference in seconds with GMT.
*
Time: ID of the zone where
Regional Settings of PC. It can be changed from RTU properties.
*
Time: week of the year (*)
*
Time: time for one cycle of the program (BASIC and Ladder). This register is
refreshed after each cycle.
Within the program, you could compute this register to memorize the highest
value.
-
Alarms: Quantity of alarm conditions, which are still active.
-
Events: absolute number of the last event (0...65535).
-
Application version: according to the 'version' indicated in the 'Info' of the RTU
properties. This register returns a version in a WORD format: 0...65535
-
Operating System: version: running in
-
Operating System: build number of the OS running in
-
Loader version: Not available with
-
Loader build: Not available with
*
TCP Log: Not needed with
'Communication'  'Retrieve from TBox'  'Trace Log'.
-
TCP Log: Not needed (see above)
-
TIME:
With CPU-16: 10 milliseconds tik
With CPU-32 and –LT2: 1 millisecond tik
-
GPS: current latitude given by the external GPS (ACC-GPS on COM1).
Latitude in degrees multiplied by 1000000 (example: 50123456 means 50
degrees + 0.123456 degree). Resolution : 11 cm. Precision 15 meters
*
GPS: current longitude given by the external GPS (ACC-GPS on COM1).
Longitude in degrees multiplied by 1000000 (example: 7123456 means 7 degrees +
0.123456 degree). Resolution : 11 cm. Precision 15 meters
-
GPS: current altitude given by the external GPS (ACC-GPS on COM1).
Altitude in meters. Resolution, 1 meter. Precision: depends on the quantity of
satellites. Poor precision
-
GPS: quantity of satellites detected by the external GPS (ACC-GPS on COM1). Must
be of minimum 3, or even 4 to expect a good precision.
*
Modbus: variable 16 bits, each representing a COM Port from 1 to 16. The bits
corresponding to the Ports in Rerouting are at 1, others at 0. Can be use to set
the mask.
*
Communication: indicates the last station ID (ModBus station) in communication
error. Once an error has been detected, the value is maintained until next error.
Usually, communication errors can be solved by modifying the time-out available
in the 'Advanced' tab of the communication used (End of Fame Detection, IFG, Rx
Time-out). To trace an error, we advise you to reset the variable and check it when
it is different from 0.
When this happens, you can handle it in your process and reset the variable, that it
is ready for the next error
*
System: this variable indicates card(s) in error. For TBox-MS only
-
Low Power: Not available with
-
Hardware: indicates the S/N. of the CPU (see sticker on the side of the card).
-
Redundancy: for
TCP/IP: number of sockets opened. Not available with
TB LT2
has been installed. It uses by default
OX
TB
OX
TB LT2.
OX
TB LT2.
OX
TB LT2
. All logs available from TWinSoft main menu:
OX
TB LT2
. Used with Low Power RTU only.
OX
TB MS32 only
OX
LT2.
TB LT2.
OX
TB LT2
OX
