20.5. Ethernet

Description:
Ethernet communication
One can use straight or cross-over cable. It must be a Shielded SFPT cable.
It connects to a hub, a switch, a router or directly to a PC.
Version : 1.09

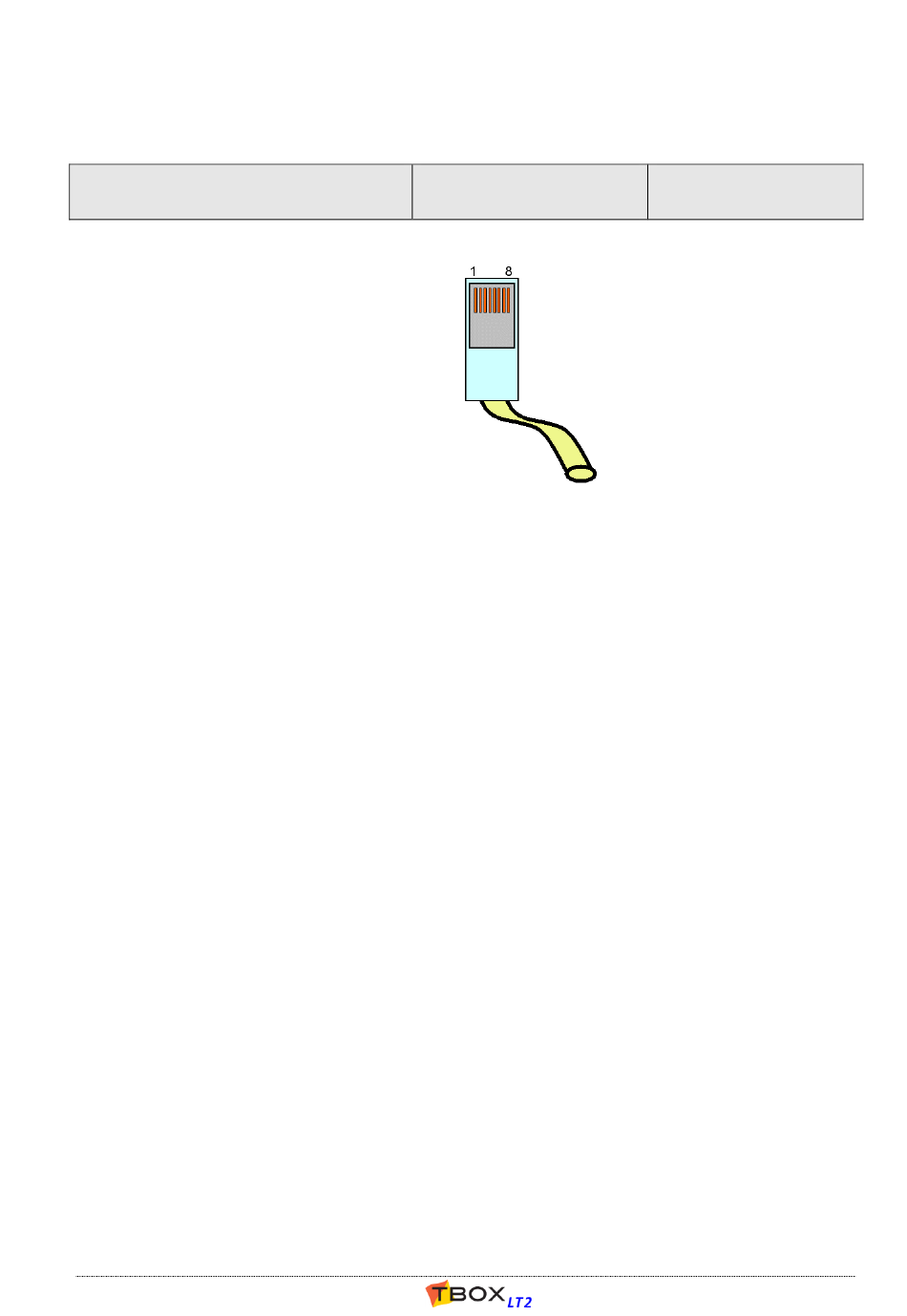

Connector:
RJ 45
Pin out:
1. Tx+
2. Tx-
3. Rx+
4.
not used
5.
not used
6. Rx-
7.
not used
8.
not used
