20.8. Analog Inputs – Current/Voltage

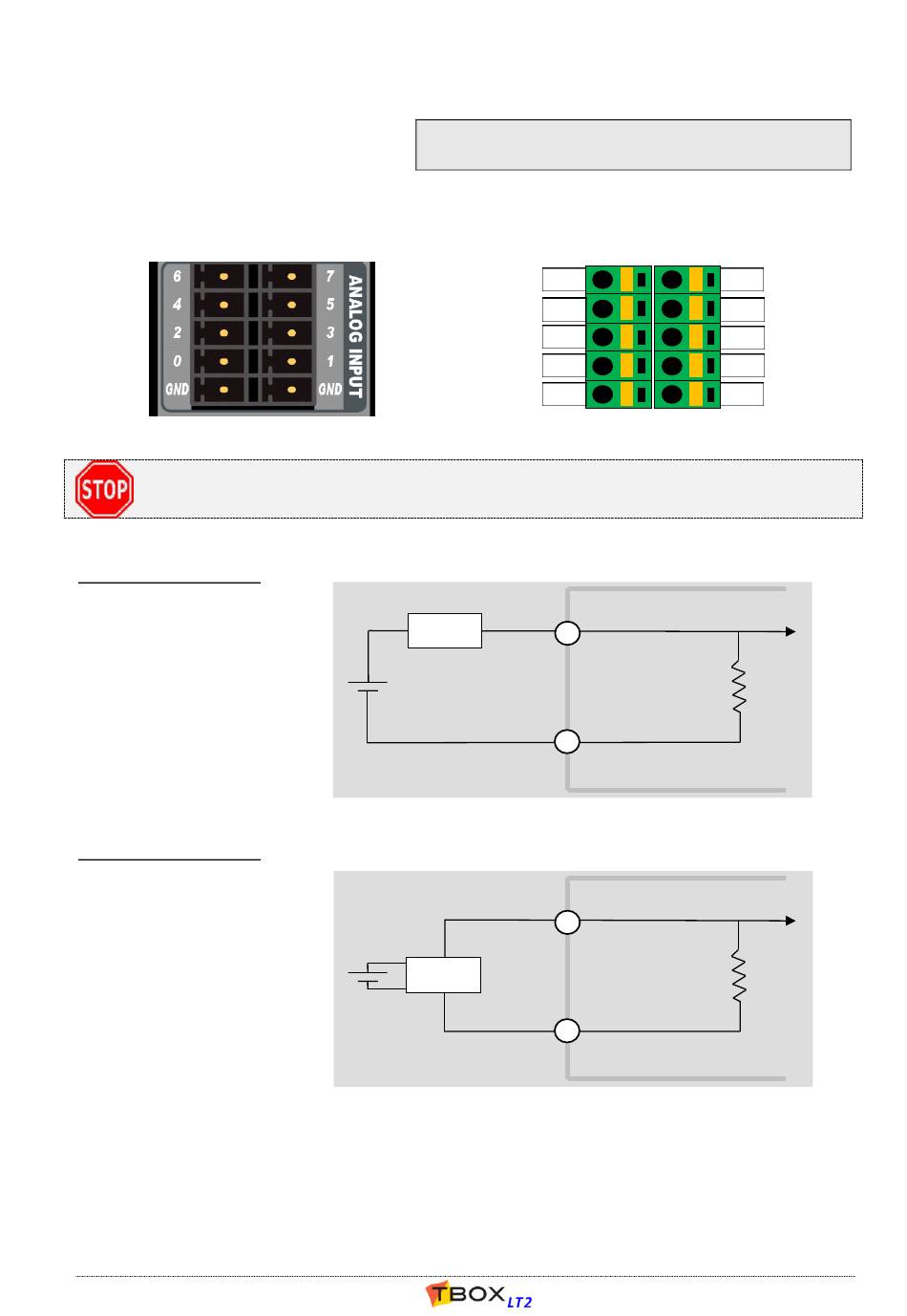

Analog Input Connector
Read important information about precautions in cabling in Appendix H
Cabling to 2-wire sensor
Cabling to 4-wire sensor
Version : 1.09
Connector: Spring Cage Terminal block
(see Appendix H)
In 6 (+)
6
In 4 (+)
4
In 2 (+)
2
In 0 (+) 0
Inputs (-)
Gnd
IN x
-
+
SENSOR
Gnd
IN x
+
SENSOR
-
Gnd
Analog Input Pinout
7
5
3
1
Gnd
Measure
Measure
In 7 (+)
In 5 (+)
In 3 (+)
In 1 (+)
Inputs (-)
R in
R in
