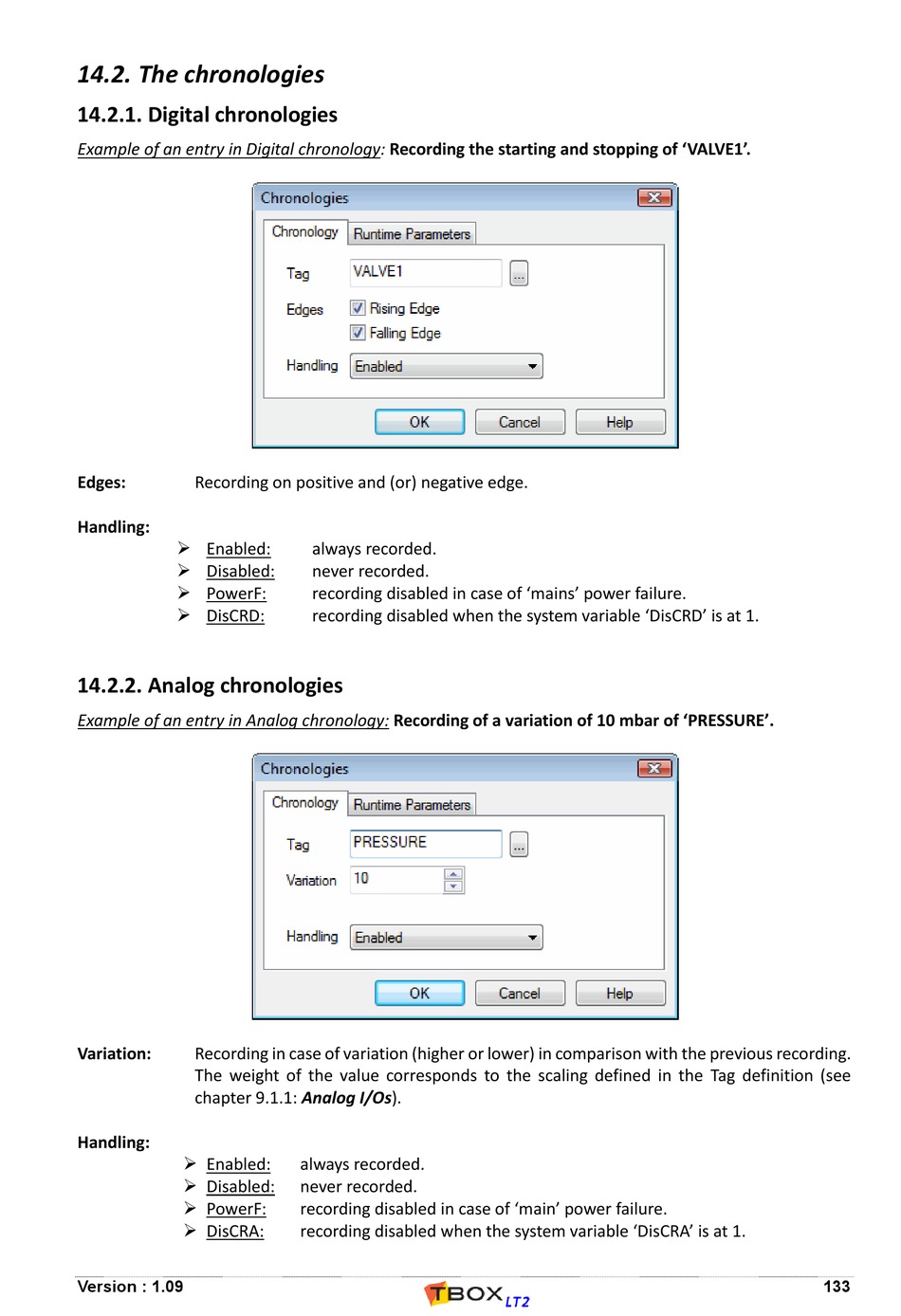

14.2. The chronologies

14.2.1. Digital chronologies

Example of an entry in Digital chronology: Recording the starting and stopping of 'VALVE1'.
Edges: Recording on positive and (or) negative edge.
Handling:
 Enabled:
 Disabled:
 PowerF:
 DisCRD:

14.2.2. Analog chronologies

Example of an entry in Analog chronology: Recording of a variation of 10 mbar of 'PRESSURE'.
Variation: Recording in case of variation (higher or lower) in comparison with the previous recording.
The weight of the value corresponds to the scaling defined in the Tag definition (see
chapter 9.1.1: Analog I/Os).
Handling:
 Enabled:
 Disabled:
 PowerF:
 DisCRA:
Version : 1.09
always recorded.
never recorded.
recording disabled in case of 'mains' power failure.
recording disabled when the system variable 'DisCRD' is at 1.
always recorded.
never recorded.
recording disabled in case of 'main' power failure.
recording disabled when the system variable 'DisCRA' is at 1.
