4 Cable and Wiring

4.5 Venu 112 and 115 V2 wiring

Venu 112 V2
Venu 115 V2

4.6 Venu 212 and 215 V2 wiring

Venu 212 V2
Venu 215 V2
UG10579-2.0 - Venu V2 Series User Guide V2.0
+
1+
-
1-
2-
+
2+
-
-
+
-
+

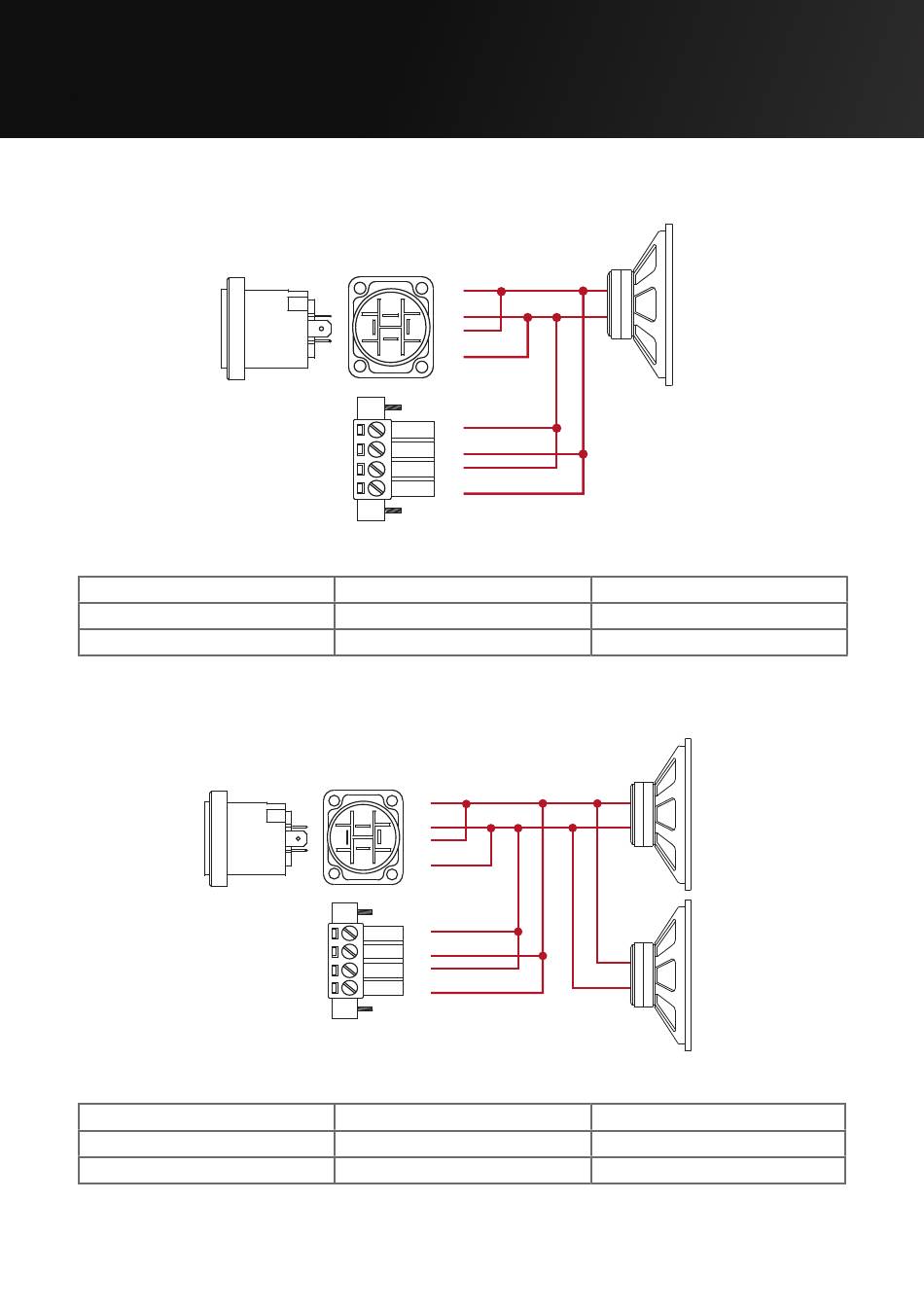

Figure 4.3: Single low frequency loudspeaker wiring diagram
speakON™ pins 1+/1-
12" LF
15" LF
+
1+
-
2- 1-
+
2+
-
-
+
-
+
Figure 4.4: Dual low frequency loudspeaker wiring diagram
speakON™ pins 1+/1-
2 x 12" LF
2 x 15" LF
+
LF
-
speakON™ pins 2+/2-
Link/out
Link/out
+
LF
-
+
LF
-
speakON™ pins 2+/2-
Link/out
Link/out
Page 9
