Summary of Contents for Void Venu V2i Powered Series

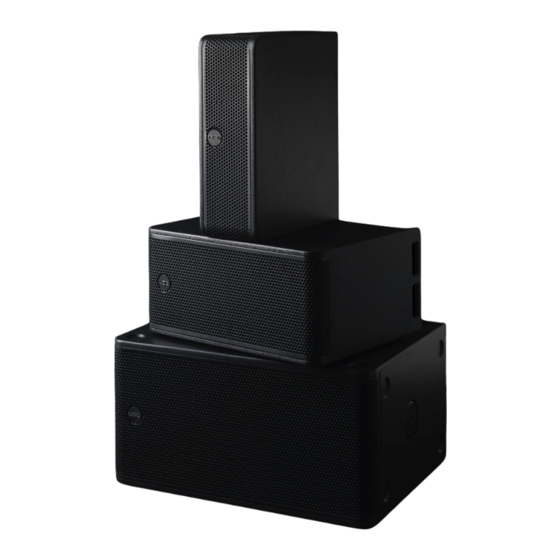

  • Page 1 Venu V2i Powered Series The ultimate choice U S E R G U I D E...
  • Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
  • Page 3: Table Of Contents

    Venu 215i V2 components Venu 208i factory presets Venu 210i factory presets Venu 215i V2 factory presets Selecting your preset LED chart Software 5.9.1 Changing network settings 5.9.2 Changing default presets UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 3...
  • Page 4 Venu 215i V2 specifications Appendix B: Dimensions Venu 208i dimensions Venu 210i V2 dimensions Venu 215i V2 dimensions Appendix C: Architectural specifications Venu 208i Venu 210i V2 Venu 215i V2 UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 4...
  • Page 5: Safety And Regulations

    14. Refer all servicing to qualified service personnel. Servicing is approved reprocessor, or by returning it to Void Acoustics Research required when the apparatus has been damaged in any way, such Ltd for reprocessing.
  • Page 6: Unpacking And Checking

    • If you need to place the Venu V2i Powered Series loudspeaker on a flat surface ensure you use a lint free product to protect the finish •...
  • Page 7: About

    In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability.
  • Page 8: Cable And Wiring

    4.1 Electrical safety To avoid electrical hazards please note the following: • Do not access the inside of any electrical equipment. Refer servicing to Void- approved service agents. 4.2 Cable considerations for fixed installations We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations.
  • Page 9: Input Connectors

    Analogue input TRS Jack pinout Hot + Ring Cold - Sleeve +Hot -Cold Figure 4.3: TRS Jack diagram 4.5 Venu 208i Output connectors Output A Output B Figure 4.4: Output phoenix connector UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 9...
  • Page 10: Fuse Rating

    Step 5: Push the fuse holder cover in so that it is completely sealed. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 10...
  • Page 11: Venu 210I V2 Wiring

    Input A 10” LF DSP and amplifier Input B 10” LF Out A 2+ N/C 2- N/C Out B 2+ N/C 2- N/C Figure 4.5: Venu 210i V2 wiring diagram UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 11...
  • Page 12: Input Connectors

    Loudspeaker output Neutrik speakON™ CH1+ CH2+ Output B Output A speakON™ speakON™ connector connector CH1- CH2- Figure 4.8: Channel 1 and 2 speakON™ connector diagram. Note: pins 2+/2- are not connected. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 12...
  • Page 13: Venu 215I V2 Wiring

    Input A 15” LF DSP and amplifier Input B 15” LF Out A 2+ N/C 2- N/C Out B 2+ N/C 2- N/C Figure 4.9: Venu 215i V2 wiring diagram UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 13...
  • Page 14: Input Connectors

    Loudspeaker output Neutrik speakON™ CH1+ CH2+ Output B Output A speakON™ speakON™ connector connector CH1- CH2- Figure 4.12: Channel 1 and 2 speakON™ connector diagram. Note: pins 2+/2- are not connected. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 14...
  • Page 15: Dsp

    4. Status LED input B 5. Volume potentiometer 11. Exhaust vent 6. Ethernet connector 12. IEC C13 power input 7. Preset select 13. Fan inlet 8. Phoenix connector output UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 15...
  • Page 16: Venu 210I V2 Components

    5. Preset LEDs 12. Neutrik speakON™ output B 13. PowerCon™ power input 6. Preset select 14. Exhaust vents 7. Ethernet connector 8. Combi Jack - XLR input signal connector input B UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 16...
  • Page 17: Venu 215I V2 Components

    5. Preset LEDs 12. Neutrik speakON™ output B 13. PowerCon™ power input 6. Preset select 14. Exhaust vents 7. Ethernet connector 8. Combi Jack - XLR input signal connector input B UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 17...
  • Page 18: Venu 208I Factory Presets

    5. When the preset LED stops flashing and becomes steady the amplifier is ready to use in that preset mode. For alternative loudspeaker presets, please download the relevant files from the support documents tab found on https://voidacoustics.com/resources-and-support UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 18...
  • Page 19: Led Chart

    System ready to play, auto standby mode disabled Cyan System ready to play, auto standby mode enabled Blue System in standby mode: no signal detected in the last 15 minutes UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 19...
  • Page 20: Software

    5 DSP 5.7 Software 1. Download and install Armonía Plus from the support page on the Void Acoustics website. Download the Venu powered speaker model from the marketplace within Armonia Plus 2. Connect an ethernet cable from the Venu powered speaker to the PC or router 3.
  • Page 21: Changing Network Settings

    Mode and enter the chosen IP address. Be aware that changing these settings could break communication with the Venu powered speaker. Confirm the changes by clicking on Apply Settings. The new static IP will be applied immediately. Figure 5.11: Network settings UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 21...
  • Page 22: Changing Default Presets

    Download and unzip a preset pack from the ‘support docs’ section on the product page of the Void website. After loading in your powered speaker model to the Add page, select the arrow tool between the ‘Show’ and ‘Add’ buttons, then double click on the Venu powered speaker (Venu 208i shown) to access the amp settings.
  • Page 23 DSP on the amp. Double click on the amp to confirm the desired preset is loaded. Figure 5.14: Scheme window UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 23...
  • Page 24: Network Troubleshooting

    5 DSP 5.8 Network troubleshooting The Venu V2i Powered Series powered speaker cannot be discovered by Armonía Plus when it is set with a different subnet than the network card to which it’s connected. In this case, after you have clicked on Discovery, Armonía Plus will report that a connected device has an incompatible IP address.
  • Page 25: Power Management

    Preset Select button for at least 3 seconds will toggle the power management. When active (Cyan Status LED), the Venu V2i Powered Series loudspeaker will enter a low power operating mode after 15 minutes of no input signal (input level below -45 dBu). The DSP board will send a signal to the amplifier module turning off the output stages and enabling standby mode (Blue LED).
  • Page 26: Processing Architecture

    POTENTIOMETER Output 3 MONO CLIP Output LIMITER Processing Output 4 clipping Temperature GAIN (5 bands) Input processing OUTPUT EQ/OVER PEAK GAIN DELAY (8-11 bands) LIMITER LIMITER 10ms Output processing UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 26...
  • Page 27: Internal Signal Path Polarity

    This would result in an inefficient use of the power supply’s energy. Figure 5.17: Internal signal path polarity with example input signal. Both channels 1 and 2 are fed with the same sine signal. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 27...
  • Page 28: Mounting

    Use only Void-approved mounting equipment and accessories • Secondary safeties should be provided in all instances where cabinets are flying or fixing overhead and should conform to local regulations UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 28...
  • Page 29: Venu 208I Yoke Bracket

    Figure 6.2: Bolt removal Step 2: With the yoke bracket fixed in position insert the M6 and M8 socket head bolts provided with the bracket. Figure 6.3: Attaching yoke bracket UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 29...
  • Page 30: Venu 208I Wall Mounting

    Remove the type 75 plate from the bracket and fix it to the cabinet with M8 socket head bolts provided with the bracket. Figure 6.6: Type 75 plate attachment UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 30...
  • Page 31: Venu 208I Wall Mounting

    6.3 Venu 208i Wall Mounting Step 3: With the wall bracket fixed in position fix the type 75 plate to the bracket with the M12 bolt. Figure 6.7: Wall bracket fixing UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 31...
  • Page 32: Venu 208I Ceiling Mounting

    Remove the type 75 plate from the bracket and fix it to the cabinet with M8 socket head bolts provided with the bracket. Figure 6.10: Type 75 plate attachment UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 32...
  • Page 33: Venu 208I Ceiling Mounting

    6.4 Venu 208i Ceiling Mounting Step 3: With the ceiling bracket fixed in position fix the type 75 plate to the bracket with the M12 bolt. Figure 6.11: Ceiling bracket fixing UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 33...
  • Page 34: Venu 210I Mounting

    Remove all four M6 bolts and remove the cover plate. Figure 6.13: Cover plate removal Step 2: Insert the Heavy Duty Top Hat and replace all four M6 bolts. Figure 6.14: Top hat placement UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 34...
  • Page 35: Venu 215I Mounting

    Remove all four M6 bolts and remove the cover plate. Figure 6.16: Cover plate removal Step 2: Insert the Heavy Duty Top Hat and replace all four M6 bolts. Figure 6.17: Top hat placement UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 35...
  • Page 36: Service

    Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product.
  • Page 37: Appendix A: Specifications

    Crosstalk separation (1 kHz) Typically . 70 dB Input sensitivity / 11.7 dBu Input impedance 13 kΩ balanced THD+N / DIM100 (from 0.1 W to < 0.1% (typically <0.05%) 1/2 Power) UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 37...
  • Page 38: Venu 210I V2 Specifications

    5 parametric equalizers: hi/lo-shelving, all-pass, band-pass, band-stop, hi/ lo-stop Output equalizer Parametric IIR filters: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 38...
  • Page 39: Venu 215I V2 Specifications

    5 parametric equalizers: hi/lo-shelving, all-pass, band-pass, band-stop, hi/ lo-stop Output equalizer Parametric IIR filters: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 39...
  • Page 40: Appendix B: Dimensions

    8 Appendix B: Dimensions B.1 Venu 208i dimensions 600 23 " 475 18 " 246 9 " 108 4 " Figure 8.1: Dimensions UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 40...
  • Page 41: Venu 210I V2 Dimensions

    8 Appendix B: Dimensions B.2 Venu 210i V2 dimensions " Figure 8.2: Dimensions UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 41...
  • Page 42: Venu 215I V2 Dimensions

    8 Appendix B: Dimensions B.3 Venu 215i V2 dimensions 860.0 " 867.5 " Figure 8.3: Dimensions UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 42...
  • Page 43: Appendix C: Architectural Specifications

    101.6 mm (4”) voice coil, wound with copper wire on a high-quality voice coil former for high power handling and long-term reliability. The loudspeaker system shall be a Void Acoustics Venu 210i V2. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0...
  • Page 44: Venu 215I V2

    750 W outputs at 4 Ω. Inputs shall be combination XLR and 1/4” type and powered outputs shall be speakON®. DSP features shall be accessed via dedicated ethernet connection. The loudspeaker system shall be a Void Acoustics Venu 215i V2. UG10835-2.0 - Venu V2i Powered Series User Guide V2.0 Page 44...
  • Page 45 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: hello@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
