Mains electricity
230 VAC/50 Hz max 0.15 A
Standby power
0.3 W
Power factor (PF)
0.6
Uout
3–28 VDC
Cable area
Connections: 0.5–4.0 mm
2
External operating temperature
-20 to +35 °C
Dimensions
46x46x18 mm
Protection
Overtemperature software
Short circuit protection
Radio
2.4 GHz mesh
Bluetooth
®
Radio range
Up to 10 m indoors.
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type LED-10 is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conformity
is available at the following internet address:
plejd.com
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal
Sweden
Manufacturer | Plejd AB
Country of manufacture | Sweden
EN

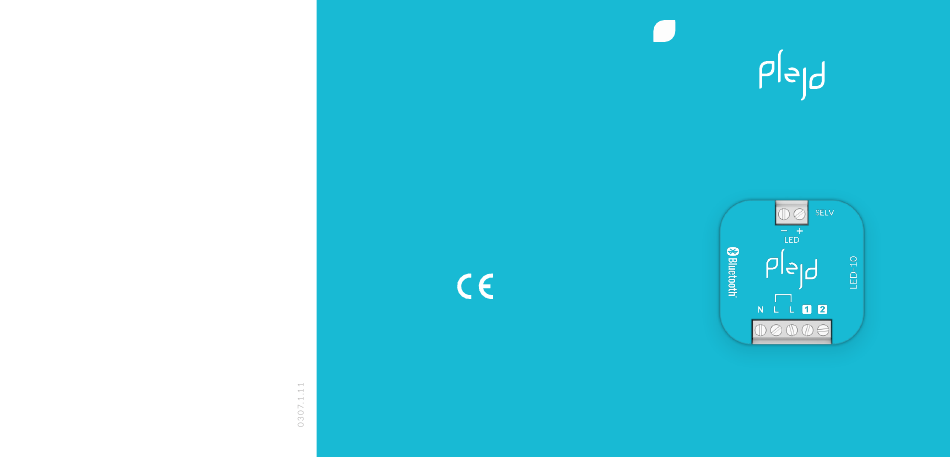

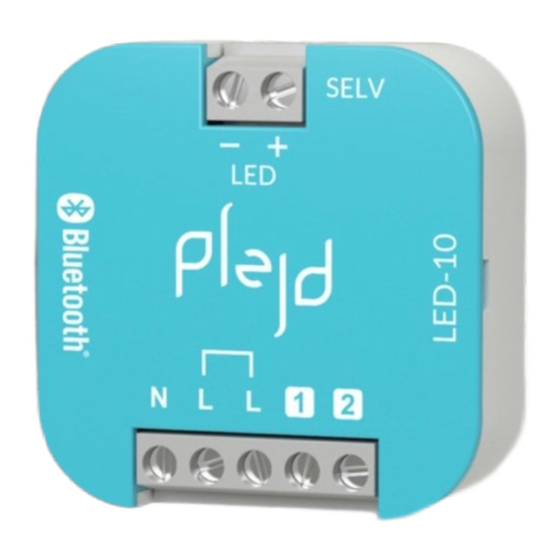

L E D - 1 0
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Plejd LED-10
Summary of Contents for Plejd LED-10
- Page 1 Compliant to standards INSTALLATION MANUAL 3–28 VDC Hereby, Plejd AB declares that the radio Cable area equipment type LED-10 is in compliance with Connections: 0.5–4.0 mm Directive 2014/53/EU. The full text of the EU declaration of conformity External operating temperature is available at the following internet address: -20 to +35 °C...
- Page 2 During installation the product is non-dimmable. Use the app to configure before use. Download the Plejd app via the App Store or Google Play. After supplying power to the unit by following the relevant wiring diagram, use the app to complete the installation.
