Mains electricity

230 V/50 Hz, max 0.5 A

Standby power

0.4 W

Operating temperature

-25 to +40 °C

Dimensions

162x62x34 mm

Cable area

Connections: 0.5–2.5 mm
2

Protection

Overtemperature software
Short circuit protection

IP class

IP20

Radio

2.4 GHz mesh
Bluetooth
®
<10 dBm

Radio range

Up to 10 m indoors
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations must
be followed.
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal, Sweden
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type LED-75 is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address: plejd.com/compliance
EN

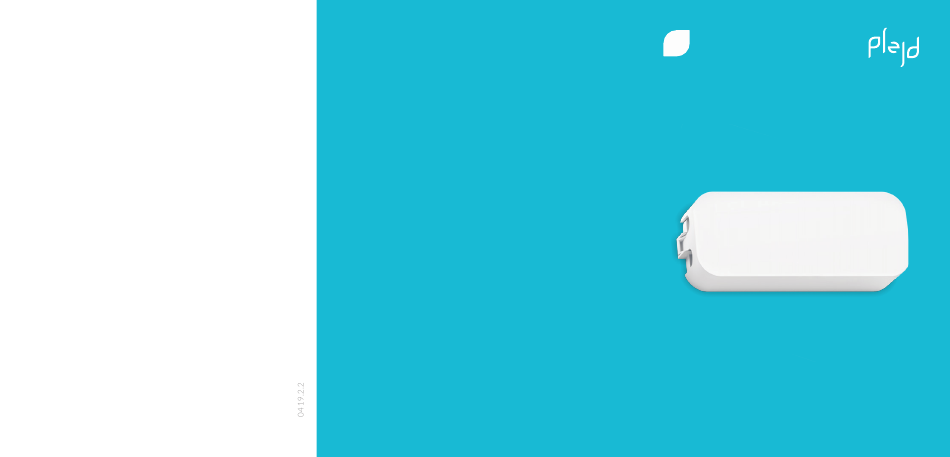

L E D - 7 5
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Plejd LED-75

  • Page 1 Plejd app or at plejd.com Up to 10 m indoors The full text of the EU declaration of The Plejd mesh technology extends the range by conformity is available at the following allowing the units to communicate with each other.
  • Page 2 Warm Cold the installation. Setup requires Bluetooth ® LED-75 is a LED Driver for 12/24 V DC up to 75 W load. It – – an internet connection. You do not need any has a built-in dimmer and tunable white support for additional equipment to get started.
