Mains electricity
230 V/50 Hz
Standby power
0.3 W
External operating temperature
-25 to +35 °C
Dimensions
46x46x18 mm
Type of switching
Relay, Micro gap (μ)
Protection
Overtemperature software
Zero crossing switching (breaker protection)
Radio
2.4 GHz mesh
Bluetooth
®
Radio range
About 10 m indoors.
*he Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type REL-01-2P is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conformity
is available at the following internet address:
plejd.com
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal
Sweden
Manufacturer | Plejd AB
Country of manufacture | Sweden
EN

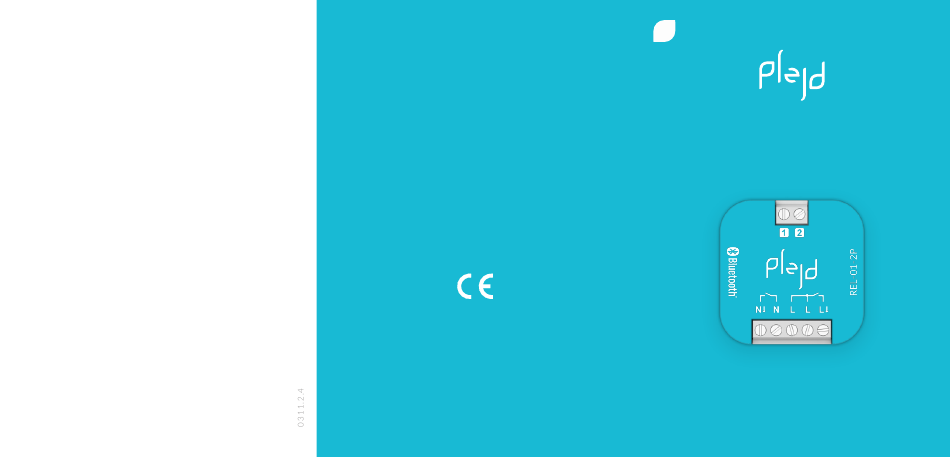

R E L- 0 1 - 2 P
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Plejd REL-01-2P
Summary of Contents for Plejd REL-01-2P
- Page 1 Compliant to standards INSTALLATION MANUAL 46x46x18 mm Hereby, Plejd AB declares that the radio Type of switching equipment type REL-01-2P is in compliance with Relay, Micro gap (μ) Directive 2014/53/EU. The full text of the EU declaration of conformity Protection...
- Page 2 After supplying power to the unit by following the relevant (MNT-01, not included) on the wall or DIN rail. wiring diagram, use the app to complete the installation. REL-01-2P has a relay with a breaker capacity of 16 A in This requires Internet connection and Bluetooth on your ®...
