Mains electricity
230 V/50 Hz max 0,15 A
Standby power
0,3 W
Power factor (PF)
0,6
Uout
3-28 VDC
Cabel area
Connections: 0,5-4,0 mm
2
External operating temperature
-20 to +35 °C
Dimensions
46x46x18 mm
Protection
Over temperature software
Short circuit protection
Radio
2,4 GHz mesh
Bluetooth
®
Radio range*
Up to 10m indoors.
*
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorised electrician.
National laws and regulations
must be followed.
Compliant to standards
Plejd AB hereby declares that the product
complies with the norms and guidelines
pursuant to Directive 2014/53/EU.
EN 61347-2-13
EN 301489-17
EN 300328
EC 1275/2008
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal
Sweden
Manufacturer | Plejd AB
Country of manufacture | Sweden

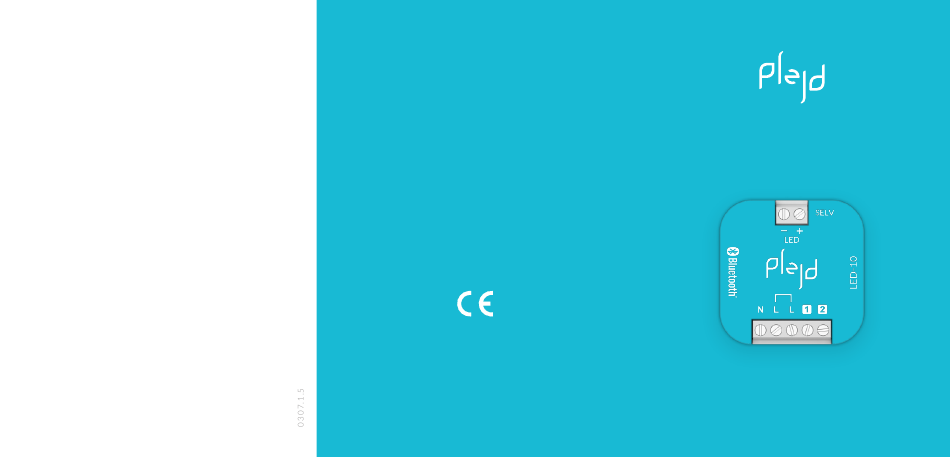

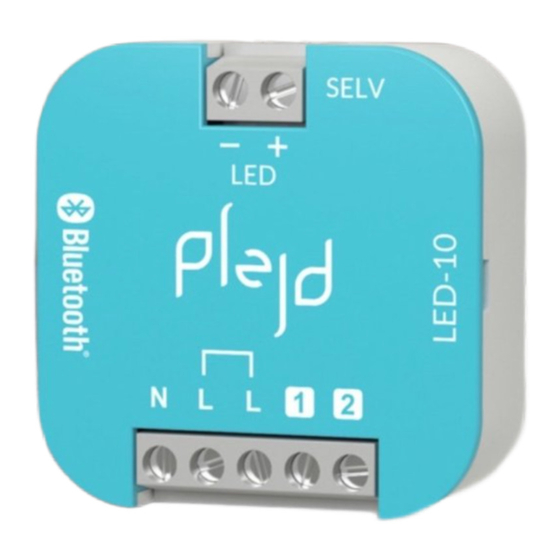

L E D - 1 0
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Related Manuals for Plejd LED-10
Summary of Contents for Plejd LED-10
- Page 1 431 37 Mölndal Up to 10m indoors. Sweden Further information can be found The Plejd mesh technology extends the range by Manufacturer | Plejd AB in the Plejd app or at plejd.com allowing the units to communicate with each other.
- Page 2 On installation the product is non-dimmable. Use the app to configure before use. Download the Plejd app via the App Store or Google Play. After supplying power to the unit based on one of the wiring diagrams, you can use the app to install the lighting.
