Mains electricity
230 V/50 Hz
Standby power
0.3 W
External operating temperature
-20 to +35 °C
Dimensions
46x46x18 mm
Load type
1-pole or 2-pole with relay
Trailing edge
Leading edge
Protection
Overtemperature software
Overtemperature hardware
Overload software
Overload hardware
Radio
2.4 GHz mesh
Bluetooth
®
Radio range
About 10 m indoors.
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type DIM-01-2P is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conformity
is available at the following internet address:
plejd.com
Plejd AB
Krokslätts fabriker 27A
431 37 Mölndal
Sweden
Manufacturer | Plejd AB
Country of manufacture | Sweden
EN

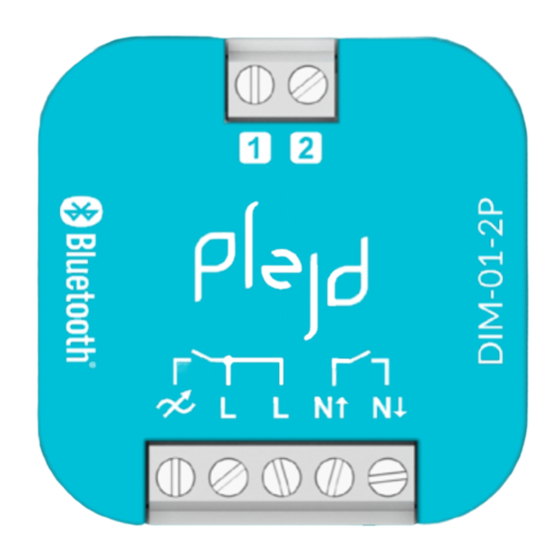

D I M - 0 1 - 2 P

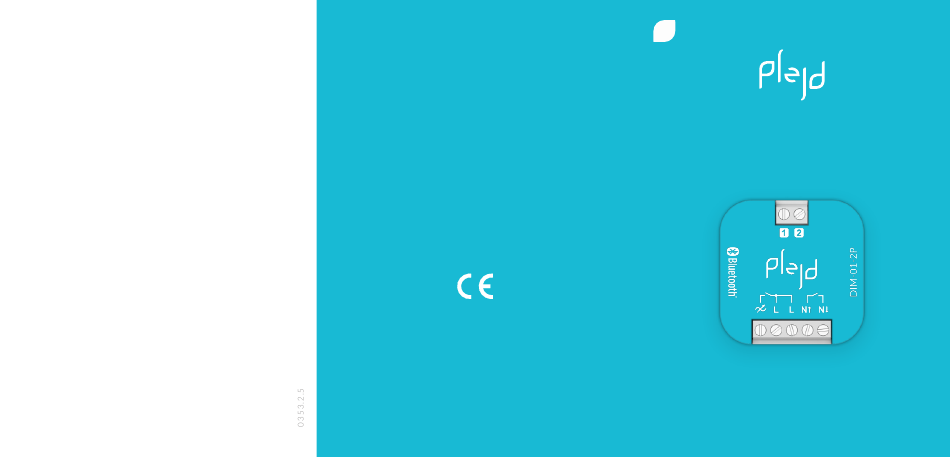

INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Plejd DIM-01-2P
Summary of Contents for Plejd DIM-01-2P
- Page 1 Compliant to standards INSTALLATION MANUAL 46x46x18 mm Hereby, Plejd AB declares that the radio Load type equipment type DIM-01-2P is in compliance with 1-pole or 2-pole with relay Directive 2014/53/EU. Trailing edge The full text of the EU declaration of conformity...
- Page 2 (N) Use the app to configure before use. Download the Plejd app via the App Store or Google Play. After supplying power to the unit by following the relevant wiring diagram, use the app to complete the installation.
