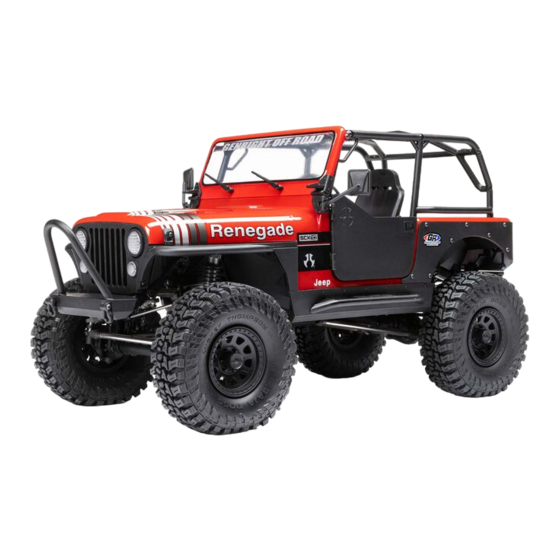

Horizon Hobby Axial SCX10 III JEEP CJ-7 Instruction Manual

1/10th scale ready-to-run
Hide thumbs Also See for Axial SCX10 III JEEP CJ-7:
Table of Contents

Advertisement

Quick Links

Download this manual
axialadventure.com
AXI03008T1/T2
1/10TH SCALE READY-TO-RUN
SCX10
III JEEP
CJ-7
™
®
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axial SCX10 III JEEP CJ-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Horizon Hobby Axial SCX10 III JEEP CJ-7

Summary of Contents for Horizon Hobby Axial SCX10 III JEEP CJ-7

  • Page 1 axialadventure.com AXI03008T1/T2 1/10TH SCALE READY-TO-RUN SCX10 III JEEP CJ-7 ™ ® INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
  • Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

  • Page 3: Table Of Contents

    Optional Parts ....................60 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if it a combination of waterproof and water-resistant components to has not been certified as water-resistant or waterproof.

  • Page 4: Box Contents

    BOX CONTENTS • Spektrum 2.4GHz Transmitter (SPM2340) ™ ™ • Axial SCX10 III Jeep CJ-7 RTR ® ™ ® - 35T Electric Motor (DYNS1216) - Spektrum Receiver/ESC Combo (SPMXSE1040RX) - Water Proof Metal Gear Surface Servo, 23T (SPMS614) - SX108 Micro Analog Metal Gear Surface Servo (For dig function) (SPMSSX108) •...

  • Page 5: Getting Started Checklist

    GETTING STARTED CHECKLIST Read the manual Install the vehicle battery in the vehicle Familiarize yourself with the vehicle and its components Power on the transmitter and then connect battery to ESC Check all screws, especially the driveshaft setscrews, for Check for proper function of the throttle and steering tightness from the factory Range check the radio system Charge the vehicle battery...

  • Page 6: Charge The Vehicle Battery

    CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fire or explode. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries (included).

  • Page 7: Adjusting The Vehicle Battery Tray

    ADJUSTING THE VEHICLE BATTERY TRAY The battery trays may be adjusted to fit a wide range of battery sizes. The rear battery tray is shown in the illustration. The side battery tray is adjustable in the same manner. To adjust the battery tray: 1.

  • Page 8: Binding

    BINDING Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. Bind Button Failsafe: Hold the steering wheel and throttle trigger in the desired failsafe positions during binding 1. Press and hold the bind button. 2.

  • Page 9: Vehicle Maintenance

    VEHICLE MAINTENANCE Just like a full size car or truck, your RC vehicle must undergo periodic maintenance in order to ensure peak performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain your vehicle. Replace any Check for wear on Check driveshaft...

  • Page 10: Spektrum Receiver/Esc Combo

    SPEKTRUM RECEIVER/ESC COMBO OPERATION SPECIFICATIONS 1. Power on the transmitter. Waterproof DSMR ESC/Receiver 2. Power on the receiver. Type 2-in-1 with SMART Telemetry 3. The green LED on the receiver will be illuminated when it is 54mm × 33.5mm × 20.5mm Dimensions (L ×...

  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Your transmitter and receiver are too Move transmitter 8 to 12 feet away from receiver close together You are near metal objects Move to an area with less metal The receiver is bound to a different Make sure the correct model memory is active in your The system will not connect model memory...

  • Page 12: Limited Warranty

    What this Warranty Covers submit a Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials speak with a Product Support representative.

  • Page 13: Fcc Information

    Axial SCX10 III Jeep CJ-7 RTR (AXI03008) EU Manufacturer of Record: Horizon Hobby, LLC Hereby, Horizon Hobby, LLC declares that the device is in 2904 Research Road compliance with the following: EU Radio Equipment Directive 2014/53/ Champaign, IL 61822 USA EU;...
  • Page 14 SCX10 ™ III Jeep ® CJ-7 AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE FRONT AXLE VORDERACHSE AXI234004 AXI234013 ESSIEU AVANT ASSALE ANTERIORE AXI234006 AXI235109 AXI234006 AXI234033 AXI235109 AXI234006 AXI234004 AXI234013 AXIC1148 AXI234004 AXIC1148 AXI234012 AXI234004 AXIC1148 AXI234006 AXI234004 AXI235109...
  • Page 15 SCX10 III Jeep CJ-7 ™ ® AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE AXI234004 REAR AXLE HINTERACHSE AXI234006 ESSIEU ARRIÈRE AXI235109 ASSALE POSTERIORE AXI234004 AXI234006 AXIC0012 AXI234034 AXI234006 AXI234015 AXI234004 AXI234004 AXI235109 AXI234004 AXI234006 AXI234004 AXI232044 AXI232063 AXI232002 AXI232025...
  • Page 16 SCX10 ™ III Jeep ® CJ-7 AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE TRANSMISSION GETRIEBE TRANSMISSION TRASMISSIONE AXIC1009 AXIC0291 AXI232029 AXIC1009 AXIC1040 AXIC0725 (14T) AXI232030 AXI235178 AXI235178 AXI232029 DYNS1216 AXIC0392 AXI232036 AXIC1391 AXI235102 AXIC0221 AXIC0149 AXI232036 AXI232037 AXIC0392 AXI232035...
  • Page 17 SCX10 III Jeep CJ-7 ™ ® AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS KAROSSERIE AXI231014 AXIC0116 CHÂSSIS TELAIO AXIC0114 AXIC0116 AXIC0114 AXIC0146 AXI230053 AXIC235099 AXI231017 AXIC3066 AXI231008 AXIC0146 AXIC0146 AXI231021 AXIC0114 AXIC0146 AXI231015 AXI230055 AXI231017 AXIC0115 AXI231014 AXIC0114...
  • Page 18 SCX10 ™ III Jeep ® CJ-7 AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS KAROSSERIE CHÂSSIS AXI230058 AXIC0118 TELAIO AXI231008 AXIC0115 AXI231008 AXI230060 AXIC0005 AXIC0118 AXI231008 AXIC0114 AXI230060 AXI231008 AXIC0116 AXI235178 AXI235174 AXIC1120 AXI231020 AXIC0116 AXIC0013 AXI231020 SPMSSX108 AXI232036...
  • Page 19 SCX10 III Jeep CJ-7 ™ ® AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE BODY ASSEMBLY AXI235098 AXI235110 KAROSSERIEMONTAGE AXIC0015 ENSEMBLE DE CARROSSERIE AXI230059 AXIC0115 GRUPPO CARROZZERIA AXI230056 AXI230053 AXI230059 AXI230059 AXIC0016 AXIC0114 AXI230056 AXI230056 AXIC1195 AXI235098 AXI230059 AXI230053 AXI235098...
  • Page 20 SCX10 ™ III Jeep ® CJ-7 AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE WHEELS AND TIRES REIFEN UND RÄDER ROUES ET PNEUS RUOTE E PNEUMATICI AXI230053 AXIC1059 AXI236172 AXI232018 AXI235099 AXI43017 AXI43018 SHOCK ABSORBERS STOSSDÄMPFER AMORTISSEURS AMMORTIZZATORI AXI233032 AXI233031...

  • Page 21: Parts Lists

    PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione LED-Beleuchtungssatz, Weiß/ Ensemble d’éclairage DEL, blanc/ Set di luci a LED, bianco/ LED Light Set, White/Orange/Red, Early AXI230049 Orange/Rot, früher Bronco / Jeep orange/rouge, Early Bronco / Jeep arancio/rosso, primi Bronco / Bronco / Jeep CJ-7: SCX10 III...
  • Page 22 Part # Description Beschreibung Description Descrizione Cog Set & Plate for Dig 2-Speed: SCX10 Cog-Satz und -Platte für Dig Jeu de pignons et plateau pour Dig Set di pignoni e piastra per AXI232037 2-Geschwindigkeiten: SCX10 III 2 vitesses : SCX10 III Dig a 2 velocità: SCX10 III AR45P AR45 AR45P AR45 Differential Covers, Black:...

  • Page 23: Recommended Parts

    Part # Description Beschreibung Description Descrizione AXA114 Innensechskantschraube, AXA114 Douille hexagonale à tête AXA114 Vite cil esag inc AXIC0114 AXA114 Hex Skt Butn Hd M3x8mm Rundkopf, M3 x 8 mm bombée M3 x 8 mm M3x8 mm AXA115 Innensechskantschraube, Rundkopf, AXA115 Douille hexagonale à tête AXA115 Vite cil esag inc AXIC0115 AXA115 Hex Skt Butn Head M3x10...

  • Page 24: Optional Parts

    Part # Description Beschreibung Description Descrizione S6280 U-T / H-S Digital HV WP S6280 U-T / H-S Digitales S6280 U-T / H-S Servo étanche S6280 U-T / H-S Servo SPMSS6280 Servo wasserdichtes Servo numérique impermeabile digitale SPMX50002S100H3 5000mAh 2S 7.4V Smart 100C; IC3 5000mAh 2S 7,4V Smart 100C; IC3 5000mAh 2S 7,4V Smart 100C;...
  • Page 25 Part # Description Beschreibung Description Descrizione Pinion Gear 32P 16T Steel 3mm Motor Zahnradgetriebe 32P 16T Stahl Arbre de moteur à engrenages à Pignone 32P 16T acciaio 3mm AXIC0727 Shaft 3mm Motorwelle pignons en acier 32P 16T de 3 mm albero motore Leistungsstarker LED-Controller Contrôleur DEL 3 ports à...
  • Page 26 SCX10 ™ III Jeep ® CJ-7 AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE...
  • Page 27 SCX10 III Jeep CJ-7 ™ ® AXI03008 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE...
  • Page 28 | youtube.com/axialvideos ©2023 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, DSM, DSMR, SLT3, IC3, EC3, Passport, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. Dodge, the Dodge grille and related logos, vehicle model names and trade dress are trademarks of FCA US LLC and used under license by Horizon Hobby, LLC, ©2020 FCA US LLC.
