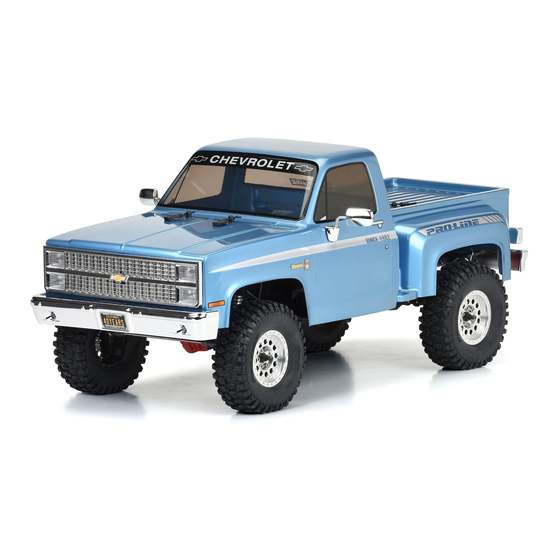

1/10th scale ready-to-run '82 chevy k-10

Advertisement

Quick Links

AXI03029
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
www.modellmarkt24.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXI03029 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby AXI03029

  • Page 1 AXI03029 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
  • Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Vehicle Maintenance ..................9 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if it a combination of waterproof and water-resistant components to has not been certified as water-resistant or waterproof.
  • Page 4: Box Contents

    BOX CONTENTS • Spektrum ™ SLT3 3 Channel 2.4GHz Transmitter (SPMRSLT300) ® ™ ® ® ® • Axial SCX10 III Proline ’82 Chevy - 35T Electric Motor (DYNS1216) - 40A Smart Brushed ESC (SPMXSE1040) ® - Spektrum DSMR 3 Channel Receiver (SPMSR315) - Water Proof Metal Gear Surface Servo, 23T (SPMS614) - (4) AA Alkaline batteries •...
  • Page 5: Getting Started Checklist

    GETTING STARTED CHECKLIST Read the manual Power on the transmitter Familiarize yourself with the vehicle and its components Install the vehicle battery in the vehicle Check all screws, especially the driveshaft setscrews, for Check for proper function of the throttle and steering tightness from the factory Range check the radio system Charge the vehicle battery...
  • Page 6: Charge The Vehicle Battery

    CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fire or explode. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries.
  • Page 7: Spmsr315 Dual Protocol Receiver

    SPMSR315 DUAL PROTOCOL RECEIVER SPECIFICATIONS Type Dual Protocol 3 Ch Receiver (SLT/DSMR) Dimensions (L × W × H) 32.5 x 21.5 x 12.4mm Antenna Length 90mm Channels Weight Band 2.4GHz Voltage Range 3.5–9.6V Bind Type Button BATT AUX 1 ADJUSTING THE VEHICLE BATTERY TRAY The battery trays may be adjusted to fit a wide range of battery sizes.
  • Page 8: Install The Vehicle Battery

    INSTALL THE VEHICLE BATTERY The following steps show the installation of a standard size battery in the rear battery tray of the vehicle. If you wish to use a “shorty” style battery, it should be installed in the side battery tray location. Power 1.
  • Page 9: Range-Checking The Radio System

    RANGE-CHECKING THE RADIO SYSTEM The radio system should be checked before operating the vehicle to ensure proper operation and adequate range. 1. Turn on the transmitter. 2. Connect the battery in the vehicle. 3. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts. 4.
  • Page 10: Firma 40A Brushed Esc

    FIRMA 40A BRUSHED ESC To Receiver Throttle Channel Battery Motor Black SPECIFICATIONS Type Brushed Constant/Peak 40A/180A Resistance 0.002 Ohms Forward/Brake/Reverse, Forward/Brake, Function Forward/Reverse (Crawler Mode) Vehicle Type 1/10 on-road and off-road; 1/10 rock crawler Proportional forward, proportional reverse Operation with braking delay, Crawler Mode Mode Forward/Brake/ 50% Drag...
  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Your transmitter and receiver are too Move transmitter 8 to 12 feet away from receiver close together You are near metal objects Move to an area with less metal The receiver is bound to a different Make sure the correct model memory is active in your The system will not connect model memory...
  • Page 12: Limited Warranty

    Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials...
  • Page 13: Fcc Information

    However, there is no guarantee that interference will not occur in a particular installation. If Axial SCX10 III Proline 82 Chevy K10 RTR (AXI03029) this equipment does cause harmful interference to radio or television This device complies with part 15 of the FCC Rules. Operation is...
  • Page 14: Exploded Views

    AXI03029 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE FRONT AXLE VORDERACHSE ESSIEU AVANT ASSALE ANTERIORE AXI234035 AXI235109 AXI234006 AXI234004 AXA120 AXI234006 AXI234004 AXI234010 AXI234004 AXI234004 AXI234006 AXI234035...
  • Page 15 AXI03029 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE REAR AXLE HINTERACHSE ESSIEU ARRIÈRE ASSALE POSTERIORE AXI232007 AXI232026 AXI232028 AX31406 AXI232002 AXI232023 AXI232008 AX30165 AX31407 AXA1221 AXI235014 AXA1221 AXI232003 AXA1221 AX31006 AX31406 AXI232023 AXI232018 AXI237009 AXI235016 AXI232028 AXA0286...
  • Page 16 AXI03029 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE TRANSMISSION GETRIEBE TRANSMISSION TRASMISSIONE AXA291 DYNS1216 AX30725 AXI232064 AXA144 AXI232066 AXA0109 AXA146 AXI232067 AXA1218 AXI232065 AXI232069 AXI232067 AX31185 AXI232068 AXA1218 AX31250 AXI236136 AXI232064 AXA1213 AXA1213 AXI232064 AXI232069 AXI232017 AXA1213...
  • Page 17 AXI03029 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS AXA0286 AXA144 KAROSSERIE CHÂSSIS TELAIO AXI230048 AXI231008 AXI231021 AXA0286 AXI230048 AXA146 SPMXSE1040 AXA0286 SPMSR315 AXI231017 AXA146 AXI231017 AXI231048 AXI231021 AX31185 AXA146 AXI231016 AXI231049 AXA114 AXA114 AXI231015 AXA144 AXI231017...
  • Page 18 AXI03029 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE WHEELS AND TIRES SHOCK ABSORBERS PRO634301 REIFEN UND RÄDER STOSSDÄMPFER ROUES ET PNEUS AMORTISSEURS RUOTE E PNEUMATICI AMMORTIZZATORI PRO278100 PRO634300 PRO278100 PRO634301 PRO1014214 PRO634300 PRO634301 PRO634302 PRO634301 www.modellmarkt24.ch...
  • Page 19: Parts Lists

    PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione ARAC9759 AR722305 Flat Head Screw 3x5mm Sechskant-Flachkopfschraube, M3 x 5mm Douille à six pans à tête plate M3 x 5mm Vite a testa piana esagonale M3 x 5mm AX31028 2 x 11mm Pin Stift 2 x 11mmmm (6)
  • Page 20 Part # Description Beschreibung Description Descrizione Sechskant-Flachkopfschraube, M3 x Douille à six pans à tête plate M3 x Vite a testa piana esagonale M3 x AXI235178 M3 x 14mm, Flat Head Screw (10) 14mm, schwarz (10) 14mm noire (10) 14mm nero (10) Vis d’assemblage creuse, M2,5 x Vite a testa cilindrica M2,5 x AXI235230...
  • Page 21: Recommended Parts

    RECOMMENDED PARTS // EMPFOHLENE TEILE// PIÈCES RECOMMANDÉES // PARTI CONSIGLIATE Part # Description Beschreibung Description Descrizione 11.1V 3700mAh 3S 50CLiPo 11,1V 3700mAh 3S 50CLiPo DYNB37353 11,1V 3700mAh 3S 50CLiPo 96mmEC3 11,1V 3700mAh 3S 50CLiPo 96mmEC3 96mmEC3 96mmEC3 7.4V 5000mAh 2S50C LiPo, 7,4 V 5000 mAh 2S 50C LiPo, Li-Po 7,4 V 5000 mAh 2S 50C, boîtier : 7,4 V 5000 mAh 2S 50C LiPo,...
  • Page 22: Notes

    NOTES // ANMERKUNGEN // REMARQUES // NOTA www.modellmarkt24.ch...
  • Page 23 NOTES // ANMERKUNGEN // REMARQUES // NOTA www.modellmarkt24.ch...
  • Page 24 | flickr.com/axialrc ©2022 Horizon Hobby, LLC. Axial, the Axial logo, SCX-10, Proline, the Proline logo, DSM, DSMR, SLT3, IC3, EC3, Passport, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. General Motors Trademarks are used under license to Horizon Hobby, LLC.
