Pepperl+Fuchs LUC-M Series Function Manual
  1. Manuals
  2. Brands
  3. Pepperl+Fuchs Manuals
  4. Accessories
  5. LUC-M Series
  6. Function manual

Pepperl+Fuchs LUC-M Series Function Manual

Ultrasonic level sensor with hart/4 ma ... 20 ma and profibus pa
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BA 240O/98/en/01.10
52027993
185572 01/10 01
Valid as of software version
V 01.04.00 (amplifier)
V 01.04.00 (communication)

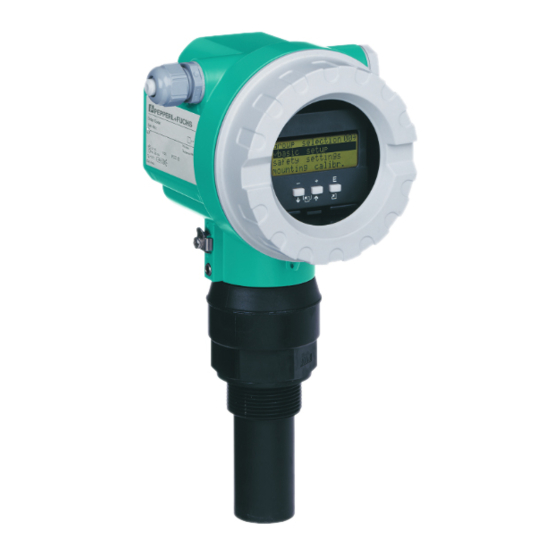

Ultrasonic Level Sensor
LUC-M** with HART/4 mA ... 20 mA and
PROFIBUS PA
Description of instrument functions
LUC-M10
LUC-M40
LUC-M30
LUC-M20
