QUICK START GUIDE

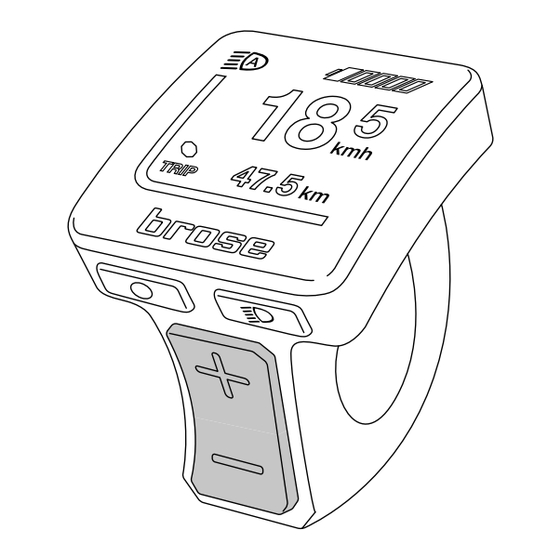

R.750 CONTROL UNIT

GETTING STARTED: How to use the system

Switch your eMTB on by pressing the
To Choose the level of support...
...you want to use the rocker
switch.
Please note that the most ef cient pedalling cadence, which will also keep wear on your eMTB to
a minimum, is between 60 and 90 rpm.
You activate the pushing aid by pressing the
PUSH appears on the display. Now hold down the bottom button on
the rocker switch (-). The message WALK appears on the display and
the pushing aid starts. To deactivate it, release the button again.
You can nd more information about the control unit in the "Operating
system" section of the ROTWILD instruction manual.
button.
You increase it by pressing the
top button (+)...
button. The message
...and reduce it by pressing the
bottom button (-).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R 750 2022 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Rotwild R 750 2022 Series

  • Page 1 (-). The message WALK appears on the display and the pushing aid starts. To deactivate it, release the button again. You can nd more information about the control unit in the “Operating system” section of the ROTWILD instruction manual.
  • Page 2 Release the button. To start the pushing aid, press the button again. To deactivate it, simply release the button again. 2 sec. You can nd more information about the control unit in the “Operating system” section of the ROTWILD instruction manual.
  • Page 3 Put the fastening bolt in the opening provided and lock it in place. Make sure that the fastening bolt and the IPU750 are securely xed.  Our video tutorial shows you how to adjust the tension on the IPU750: www.rotwild.de/quickstart...
  • Page 4 R.375 DRIVE BATTERY CORRECT CHARGING: How to charge the IPU375 The IPU375 drive battery can be charged both on and off the bike. Make sure that you plug the charger into the wall socket rst. Then insert the charger cable..into the charging socket in the motor housing...
  • Page 5 CLOSE for ascents and road riding. You will nd more detailed information about the settings in the “Suspension” section of the ROTWILD instruction manual. The enclosed instruction manuals supplied by the fork and shock absorber manufacturers...
  • Page 6 EVERYTHING WITHIN REACH: How to adjust the handlebars, brake lever and shifting lever Adjust the handlebars, brake lever and shifting lever so that they are in the right ergonomic position for you. Follow the instructions in the “Handlebars, stem and headset” section of the ROTWILD instruction manual.
